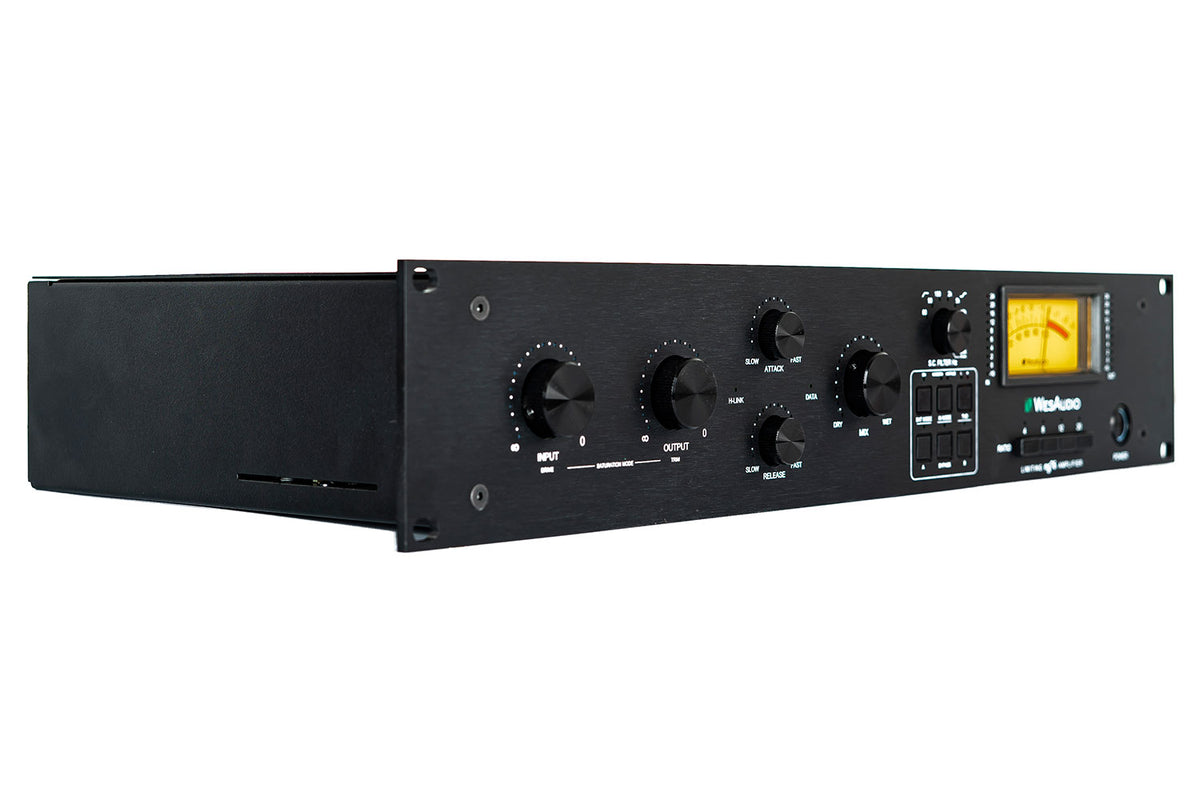

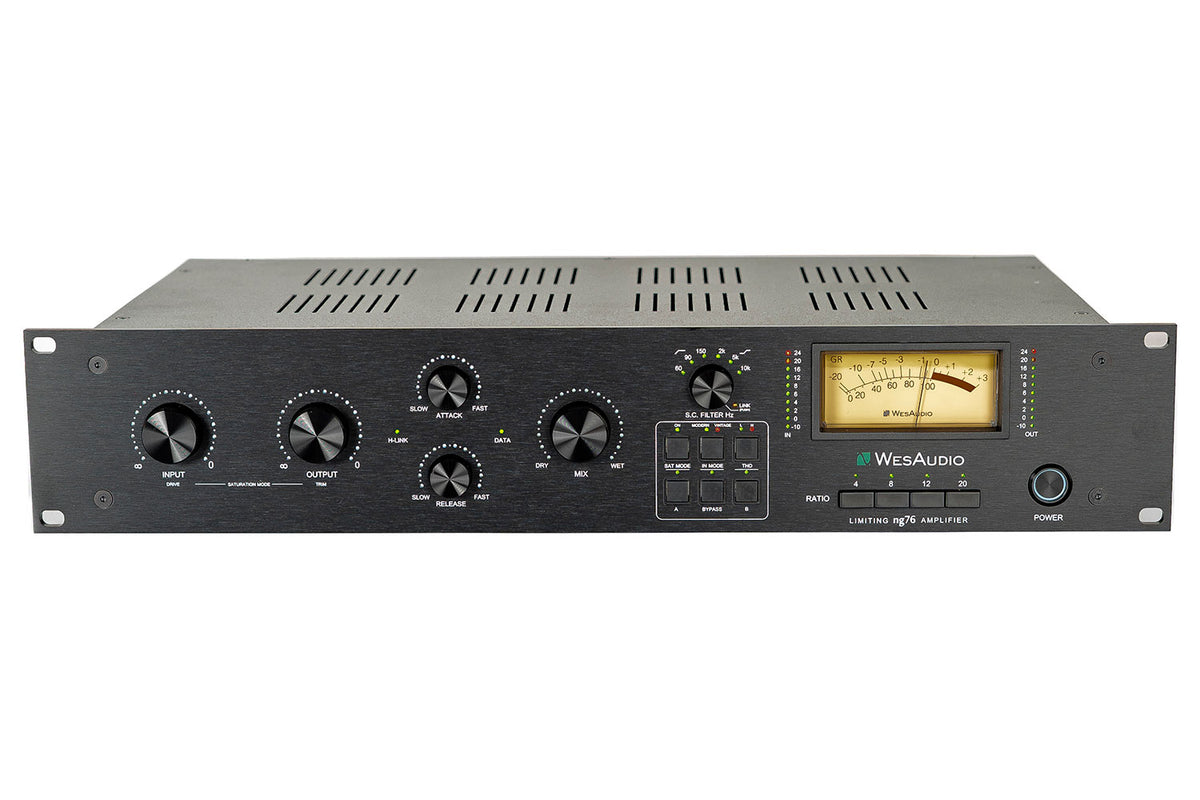

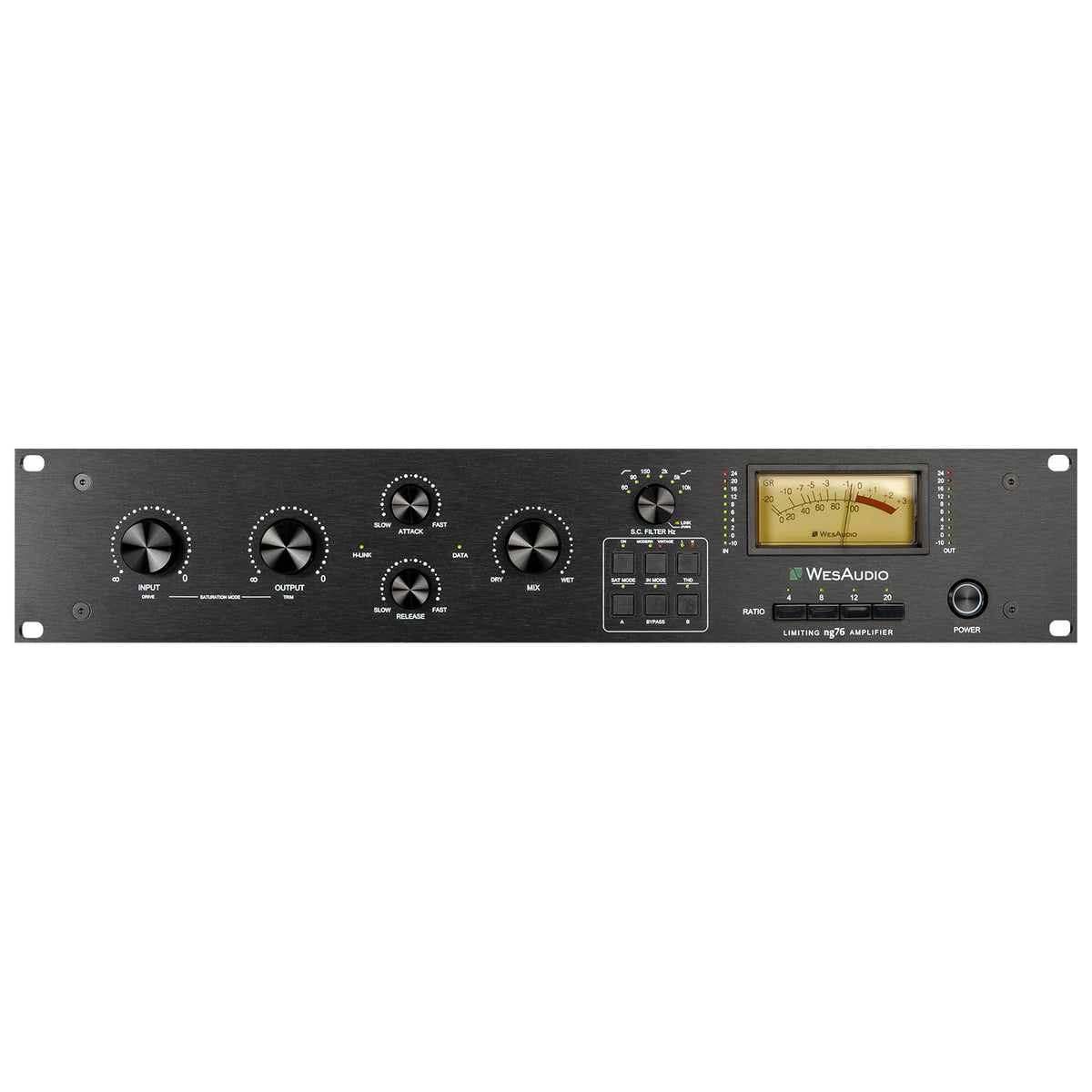

WesAudio ng76 FET Compressor with Digital Recall

Product Description

For over 50 years, FET compressors have been a cornerstone in recording studios, known for their distinctive sound and reliability. The 76-style FET compressor, in particular, has shaped countless hit records, solidifying its status as a trusted and versatile tool for producers and engineers worldwide. Building on this iconic design, WesAudio introduce the WesAudio ng76 FET Compressor — a fully analog FET compressor enhanced with modern versatility, offering seamless DAW integration and digital recall.

100% ANALOG FET COMPRESSOR

ng76 is a 100% analog processing unit with +24dBu of headroom. Despite its fully digital control, the analog signal path delivers the lightning-fast compression sound known from countless records.

TRUE STEREO OPERATION

Two ng76 mono compressors can be linked via dedicated software. Link compression detectors using special cables (included with stereo-matched pairs) for true stereo compression. Option for dual mono compression with all parameters linked across both units. Any changes made on one unit will be automatically reflected on its paired twin. FET-style compression is known for being lightning-fast, punchy, and aggressive. The Mix knob allows for parallel compression, giving you control over how much of that distinct sonic character to dial in. The Mix knob also lets you blend in the saturation mode to add warmth and harmonic distortion.

THD – TOTAL HARMONIC DISTORTION

Total Harmonic Distortion (THD) button allows you to dial in additional sonic content with Low or High settings. Fully based on the FET circuit, this design lets you control how saturated your compression becomes.

CARNHILL TRANSFORMERS

Transformers in audio compressors offer more than just electrical isolation; they contribute a warm, sonic saturation that enhances recordings with a rich, analog character. The ng76 uses Carnhill transformers, which are well known for adding vintage warmth and flavor to the sound, elevating the overall tonal quality in a way that many engineers and producers love.

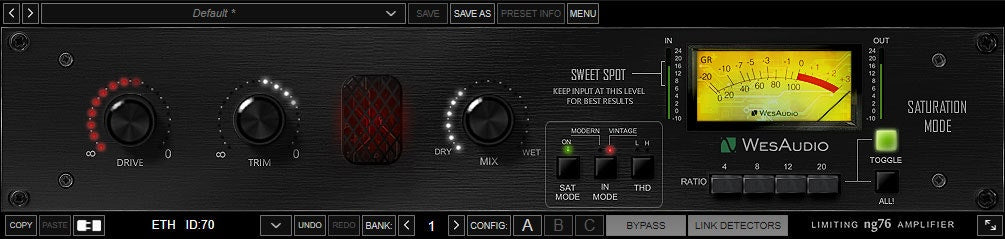

SATURATION MODE

The ng76 features a special mode where static compression is engaged to create sonics based on the FET circuit. A single knob controls the INPUT and OUTPUT in opposite directions, allowing the unit to function as a saturation box or clipper. The harder you drive the signal into the compression and saturation circuit, the more sonic content and harmonic richness you generate. The ng76 offers both Modern and Vintage modes to accommodate two revisions of the 1176 compressor (F & G): Vintage mode: Uses a transformer-balanced input, providing a more traditional, warm analog sound. Modern mode: Features an electronically balanced input, offering a cleaner and more transparent sound.

SIDECHAIN EQ SECTIONS

Features a sophisticated sidechain circuit EQ with two independent sections: High-pass filter (HPF) at 60Hz, 90Hz, and 150Hz to preserve low-end information during compression. High shelf filter at 2kHz, 5kHz, and 10kHz to tame high frequencies and emphasize high/mid-range content for more control over the top end. Hardware A/B Buttons to Compare Two Independent Settings Even when using the ng76 as a fully analog signal processor, you can effortlessly switch between two parallel settings with the push of a simple button, providing seamless control and flexibility.

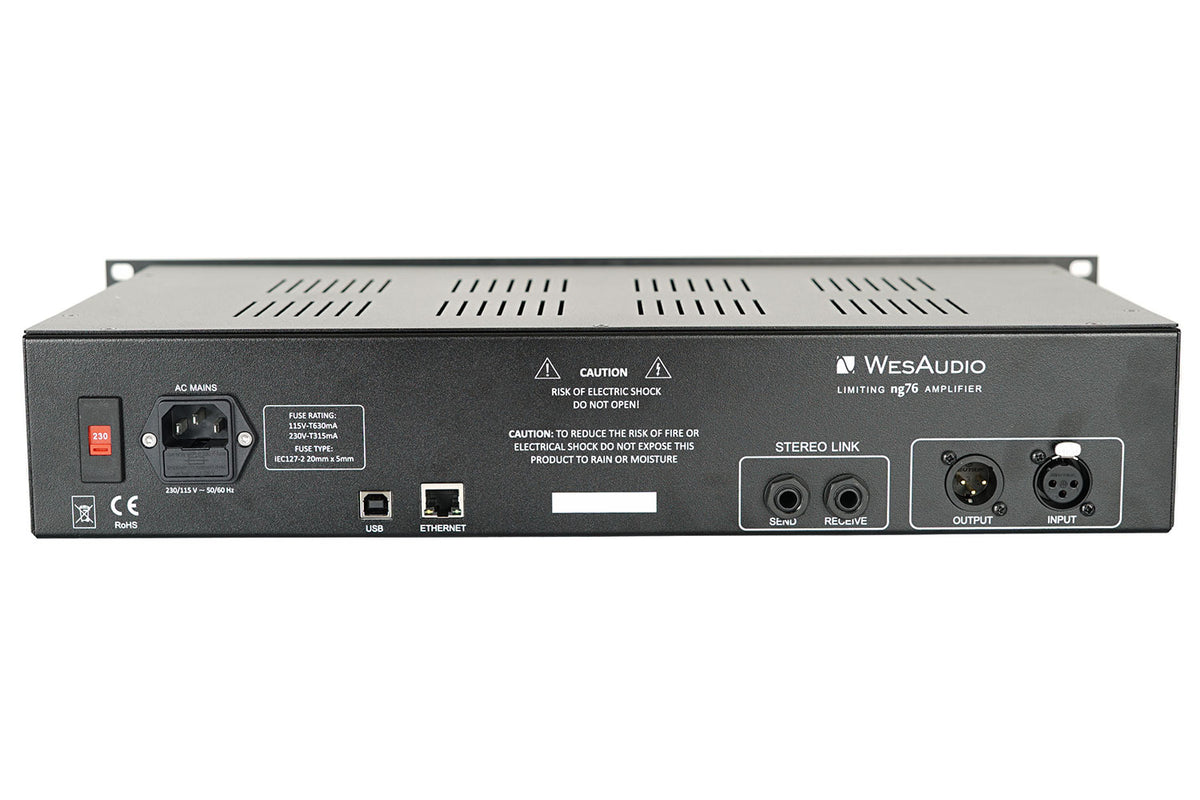

USB OR ETHERNET CONNECTIVITY

The ng76 supports direct USB connection for easy setup, or you can manage it over your local network by simply plugging an Ethernet cable into your router, allowing for flexible control and integration.

GAIN REDUCTION, INPUT AND OUTPUT METERING

The ng76 features the classic Vintage Gain Reduction meter, instantly recognizable for its timeless design. For enhanced usability, it also provides precise visualization of both input and output levels simultaneously.

ANALOG AUTOMATION

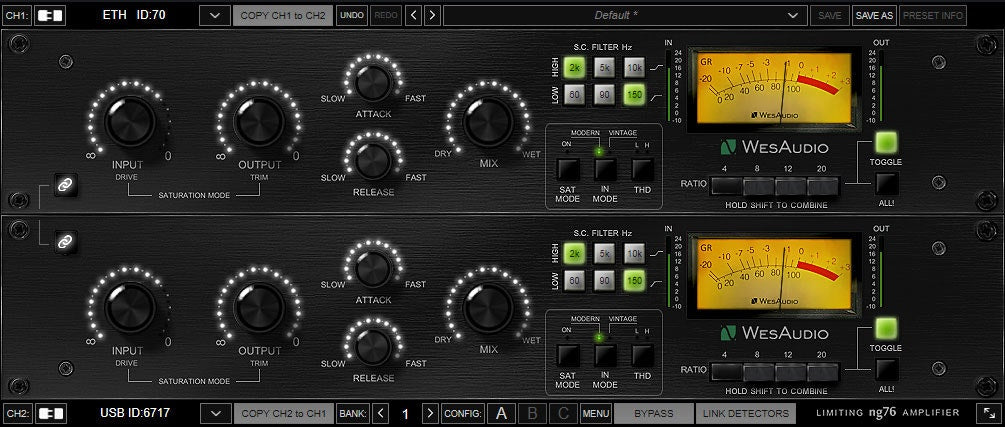

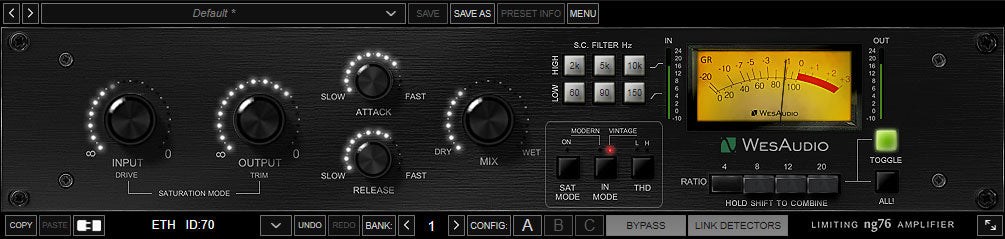

Everyone has wanted to adjust device settings dynamically throughout a song, and now it’s easier than ever! Simply draw automation lines in your DAW, and your analog device will respond accordingly. Plus, you can use the five touch-sensitive encoders to record automation directly into your DAW, making the process even more seamless!
