Product Description
NOTE: This item is currently back-ordered. Please call for estimated delivery times.

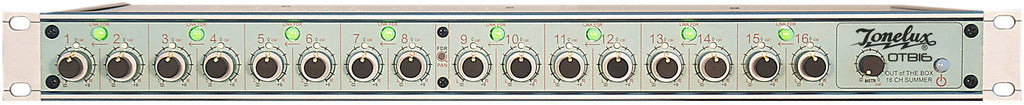

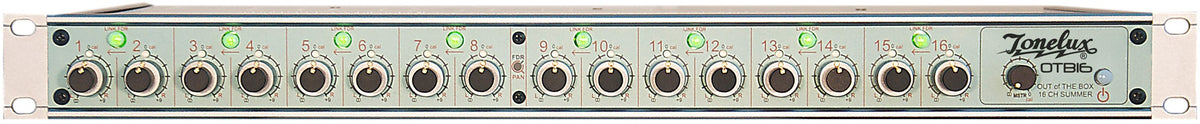

The Tonelux OTB16 is a 16 channel 1U mixer with 16 balanced inputs and a Tonelux discrete summing bus. Each channel has a level control and a panner. The access to the OTB16 is through 2 eight channel D-sub inputs at a level of +4dBu nominal.

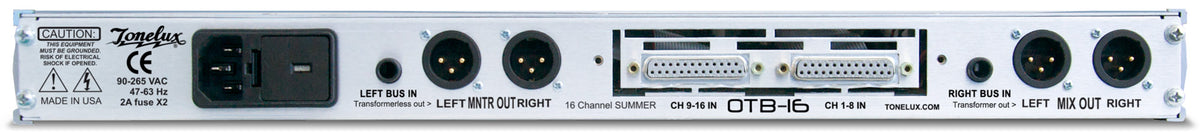

The summing of the 16 channels is through the famous Tonelux TX-240 and TX-260 discrete op-amps, and then through the main output transformer, which can be adjusted by the MASTER fader pot, which comes out of a pair of XLR connectors. Additionally there is a monitor output for monitoring or for expansion, which is balanced but transformer-less. Two additional balanced inputs to the MIX bus. The pre-fader monitor output can be plugged into the BUS input to extend the number of channels with a second or third OTB16. 120 or 230 volts AC powered 50/60 Hz.
