Product Description

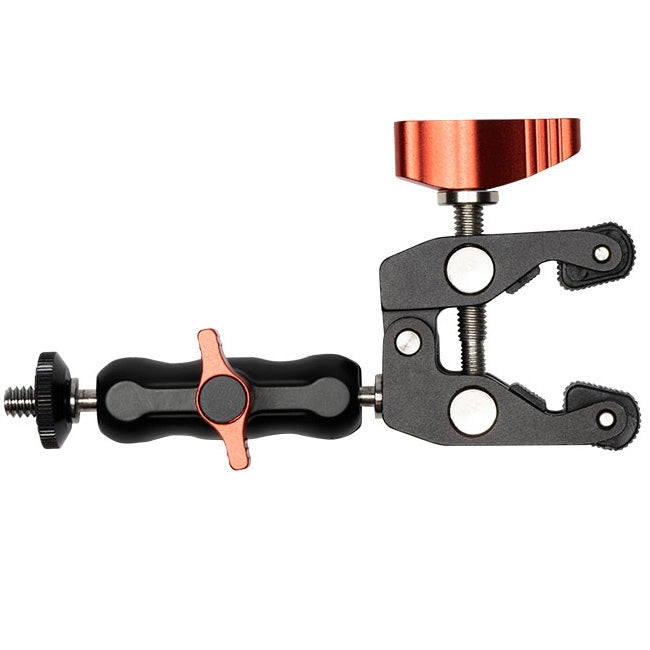

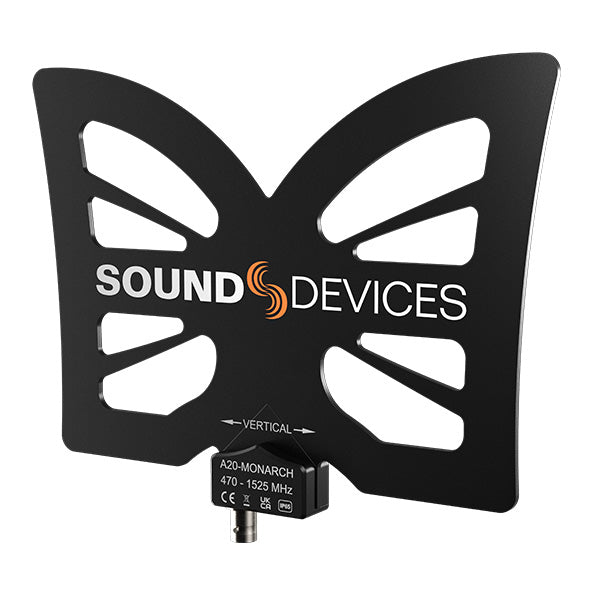

The Sound Devices A20-Monarch is an omnidirectional, wide-bandwidth (470 - 1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.
The A20-Monarch kit includes:
- 1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount
- 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
- 1x 30 in/75 cm BNC-M to BNC-M cable
- 1x 18 in/45 cm BNC-M to SMA-M cable
SPECIFICATIONS:
- Frequency range: 470 MHz – 1600 MHz
- Gain: 2.2 dBi
- Pattern: Omnidirectional
- Return Loss: Better than 15 dB across entire 470 – 1600 MHz range
- Mounting Threads: ¼-20
- Dimensions (H x W x D): 17.0 cm x 21.0 cm x 1.7 cm (6.68 in x 8.26 in 0.67 in)
- Weight: 0.12 kg
