RME MADIface XT

Product Description

The RME MADIface XT is the world's first USB3 audio interface - and the world's smallest portable interface that provides access to hundreds of audio channels in such a small package. For highest usability and connectivity the XT can also be used with USB 2.0 (computer I/O limited to 70 channels). Its unique PCI Express port connects to External PCI Express cards as well as adapters to Thunderbolt, providing all the fastest interfacing technologies available for maximum channel count and lowest latency in one unit.

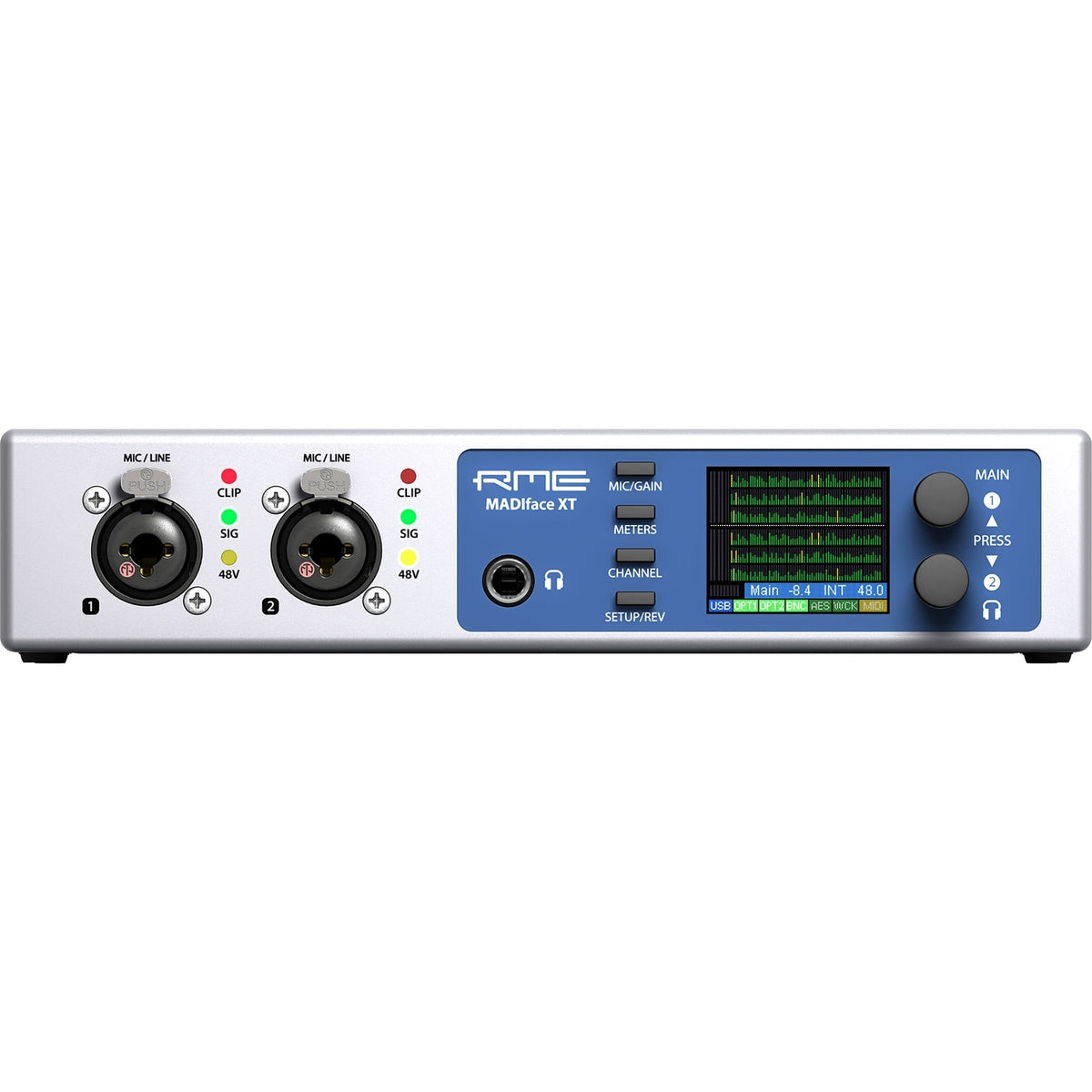

To bring together the most complete I/O set for live or studio usage, two digitally controlled high end mic/line preamps, two balanced line outputs and one stereo phones output are included. Full standalone operation with remote control over MADI plus TotalMix FX for unlimited mixing, routing and processing open an endless world of possible applications.

The RME MADIface XT is capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Analog sources can be connected to a stereo analog input, and 2 stereo analog outputs add full monitoring connectivity. Installation is simple, even for the inexperienced user, thanks to the latest Plug and Play technology. The numerous unique features and well thought-out configuration dialogs put the MADIface XT at the very top of the range of digital audio interfaces.

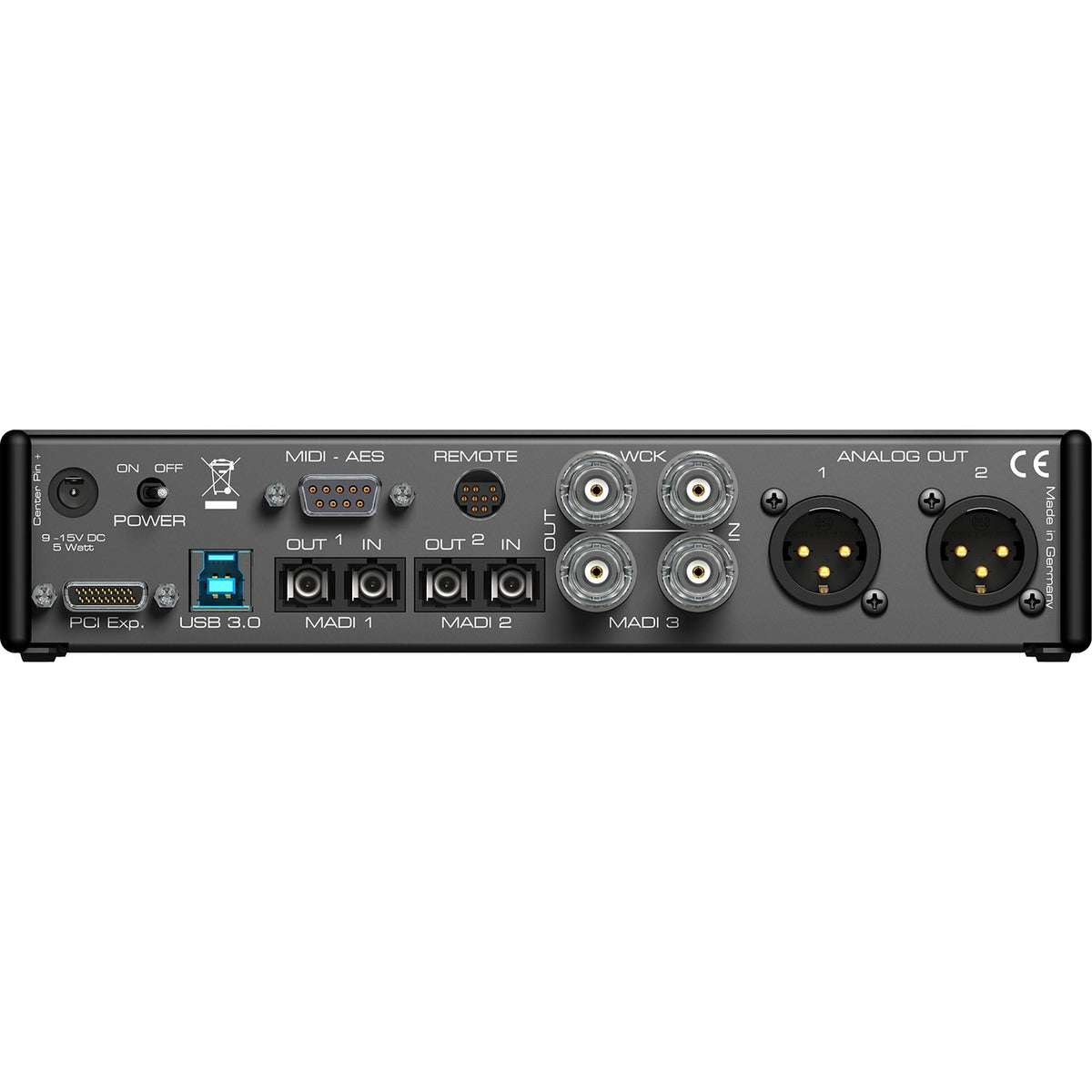

Connectivity:

• 196 Input/198 Output channels
• 2 x MADI I/O optical
• 1 x MADI I/O coaxial
• 2 x Analog Mic/Line Preamp Input (XLR/TRS)
• 4 x Analog Output (Main XLR + Phones)
• 1 x AES/EBU I/O via breakout cable
• 1 x MIDI I/O via breakout cable
• 3 x virtual MIDI I/O via MADI I/O
