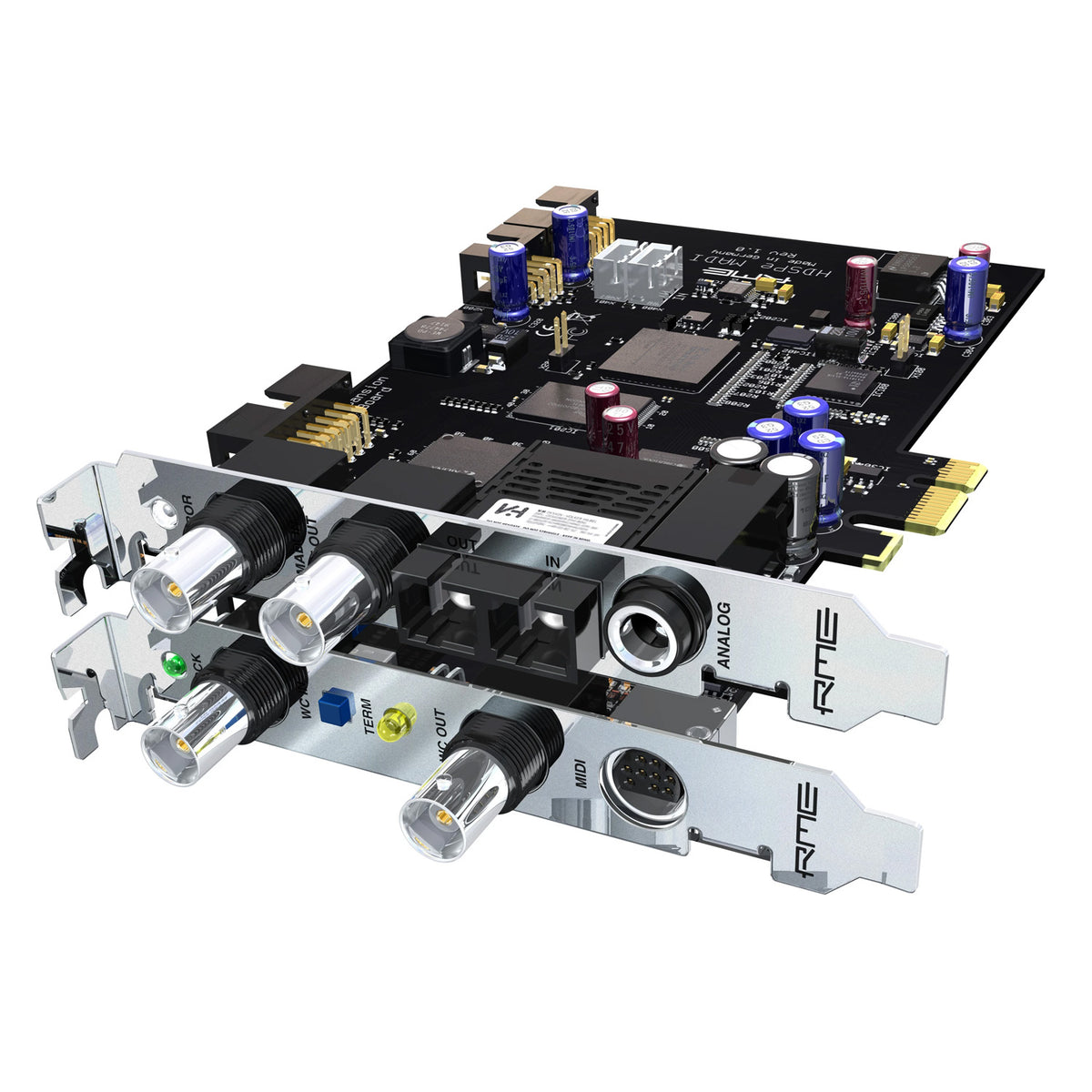

RME HDSPe MADI Card

Product Description

The RME HDSPe MADI is both an inexpensive and outstanding PCI Express card with MADI interface. HDSPe MADI is based on the award-winning HDSP MADI card, and represents the new top model of this world-wide successful card line.

The PCI Express card consequently uses all advantages of the MADI format, the professionals' multi-channel audio interface, offering 64 channels of 24-bit audio at a sample rate of up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Transmission is done via a single line, either coaxial with BNC plugs or by fiber cable. In both cases more than 100 m cable length can be achieved.

Compared with the HDSP MADI (Standard PCI version), the express card offers some new features: Support of higher samplerates than 96 kHz, more features in TotalMix (phase and inernal loopback per channel, +6 dB gain for the hardware outputs), and the direct support of the Time Code Option. HDSPe MADI provides even lower latencies, making the card the perfect partner for live recording and live mixing applications. The analog monitor output is equipped with the low-latency converter technology of the ADI-8 QS, thus guaranteeing stunning SNR and THD values too.

HDSPe MADI is fully compatible to all devices with MADI interface. In combination with the ADI-648 an 8 x ADAT optical PC interface is realized, unbeatable in price and performance. With the ADI-6432 a bidirectional AES/EBU frontend with 64 channels is available.

On a powerful PC/Mac three HDSPe MADI can be used in a combination, providing 192 inputs and 192 outputs on a single workstation simultaneously.
