Redco R196-D25PG TT/DB25 96-Point Bantam Patch Bay

Product Description

The Redco R196-D25PG TT/DB25 patch bay delivers versatile analog and AES digital signal routing in a compact 1U design. Featuring programmable grounding/normalling switches, industry-standard 25-pin D-Sub Tascam pinouts, and a built-in cable support tray, this 96-point patch bay is built for efficiency and versatility.

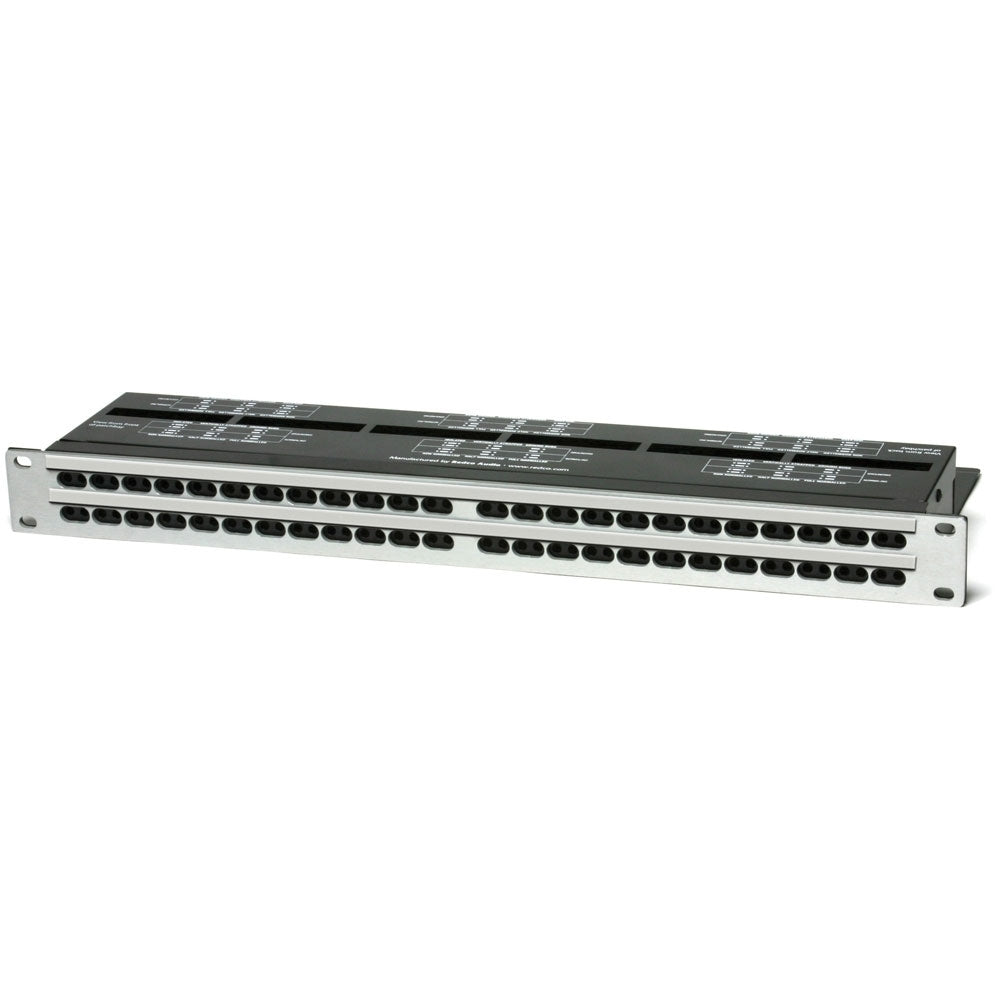

VERSATILE 96-POINT BANTAM PATCH BAY

With 96 balanced patch points in just 1U of rack space, the R196-D25PG is the perfect solution for streamlining your workflow. "Bantam" refers to the Tiny Telephone (TT) connector, which is widely used in professional studios for its durability and space-saving efficiency. This high-density configuration makes the Redco R196-D25PG TT patch bay ideal for complex routing in large-scale studios, broadcast facilities, and live rigs where organization and efficiency are key.

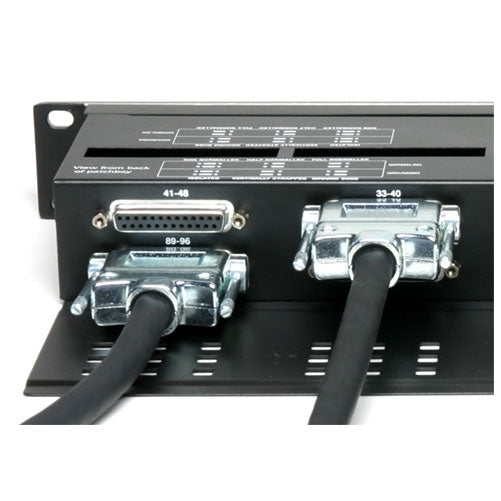

INDUSTRY-STANDARD D-SUB PINOUT

The Redco R196-D25PG TT patch bay uses the Tascam pinout scheme on all rear-panel 25-pin D-Sub connections for straightforward and reliable integration with outboard gear. Each D-Sub connector is precision-machined and secured with durable threading for a solid, vibration-resistant fit. Whether you’re wiring a permanent installation or a mobile rig, the Redco R196-D25PG 1U patch bay streamlines setup and keeps your signal path clean and consistent.

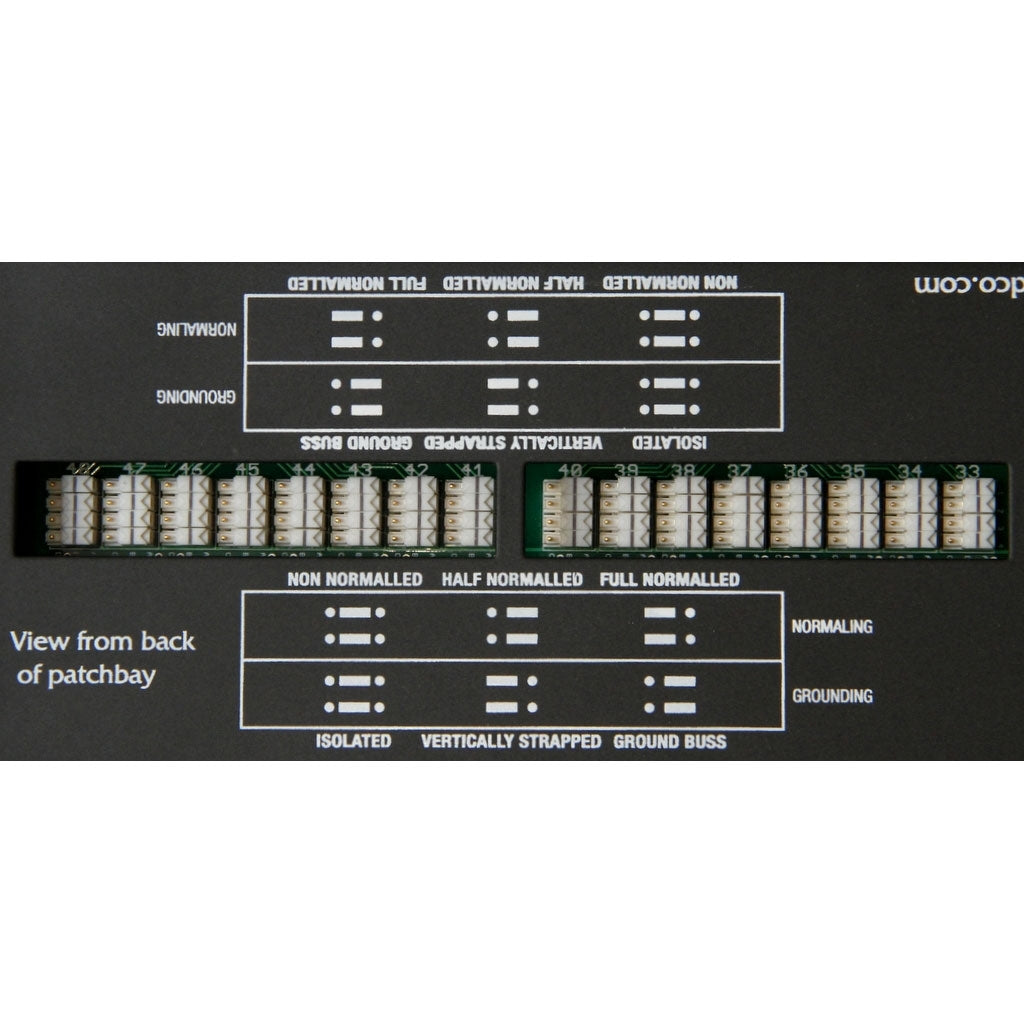

PROGRAMMABLE GROUNDING/NORMALLING SWITCHES

Located on the top of the chassis for quick access, the programmable grounding and normalling switches give you complete control over your signal flow. Normalling switches let you pre-configure default signal paths, while programmable grounding allows you to choose the optimal grounding scheme for your setup. Quality Construction and Convenient Cable Support Tray With a rugged steel chassis and premium connectors rated for thousands of insertion cycles, the Redco R196-D25PG TT patch bay is built to last. An integrated cable tray that supports the weight of your cabling to prevent stress on connectors, reduce wear, and extend the life of both the patch bay and your cables.
