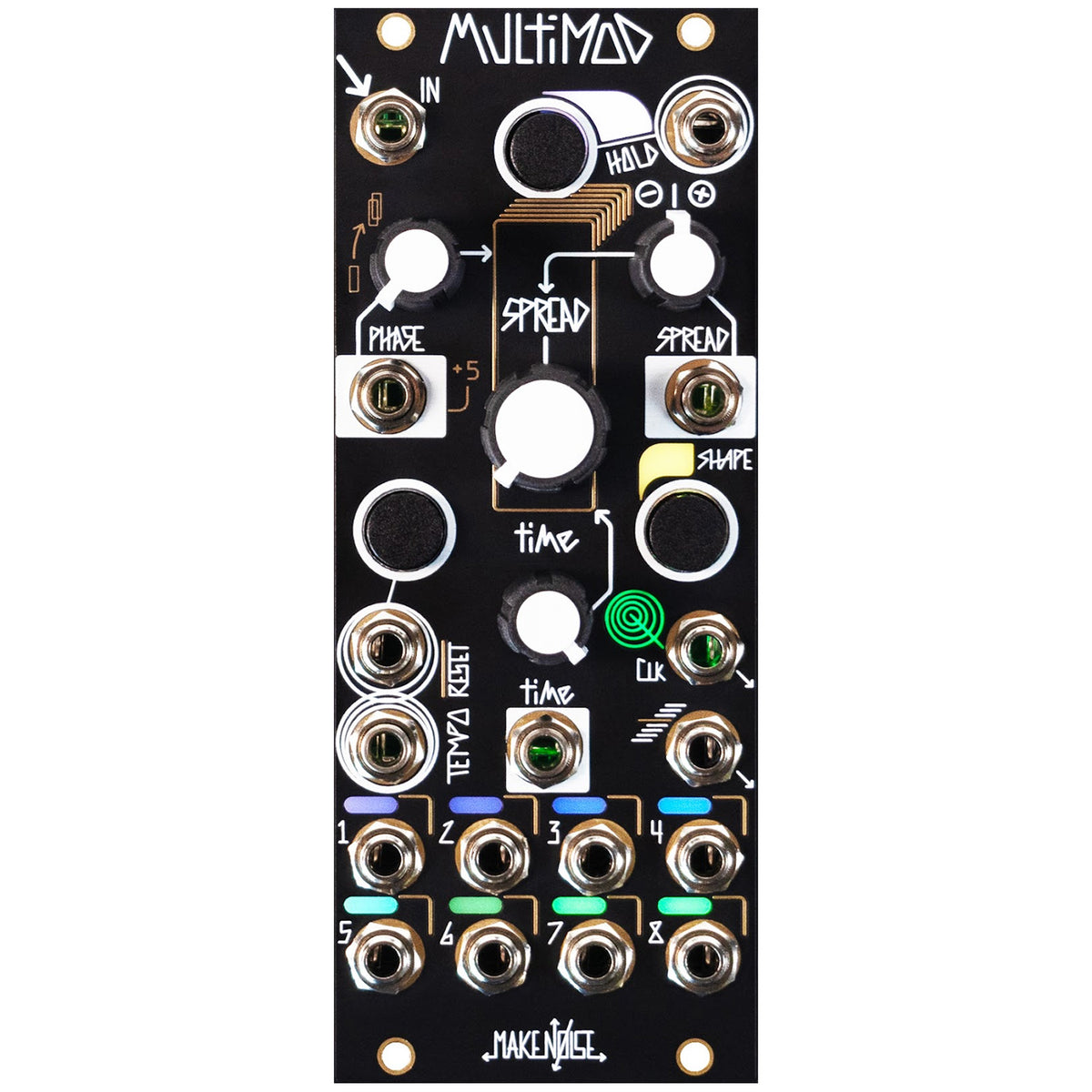

Make Noise Multimod Modulation Module

Product Description

In a modular synthesizer, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. The Make Noise MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with Make Noise's latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analog eurorack modular system. All I/O is capable of a 20V range at ±10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.
