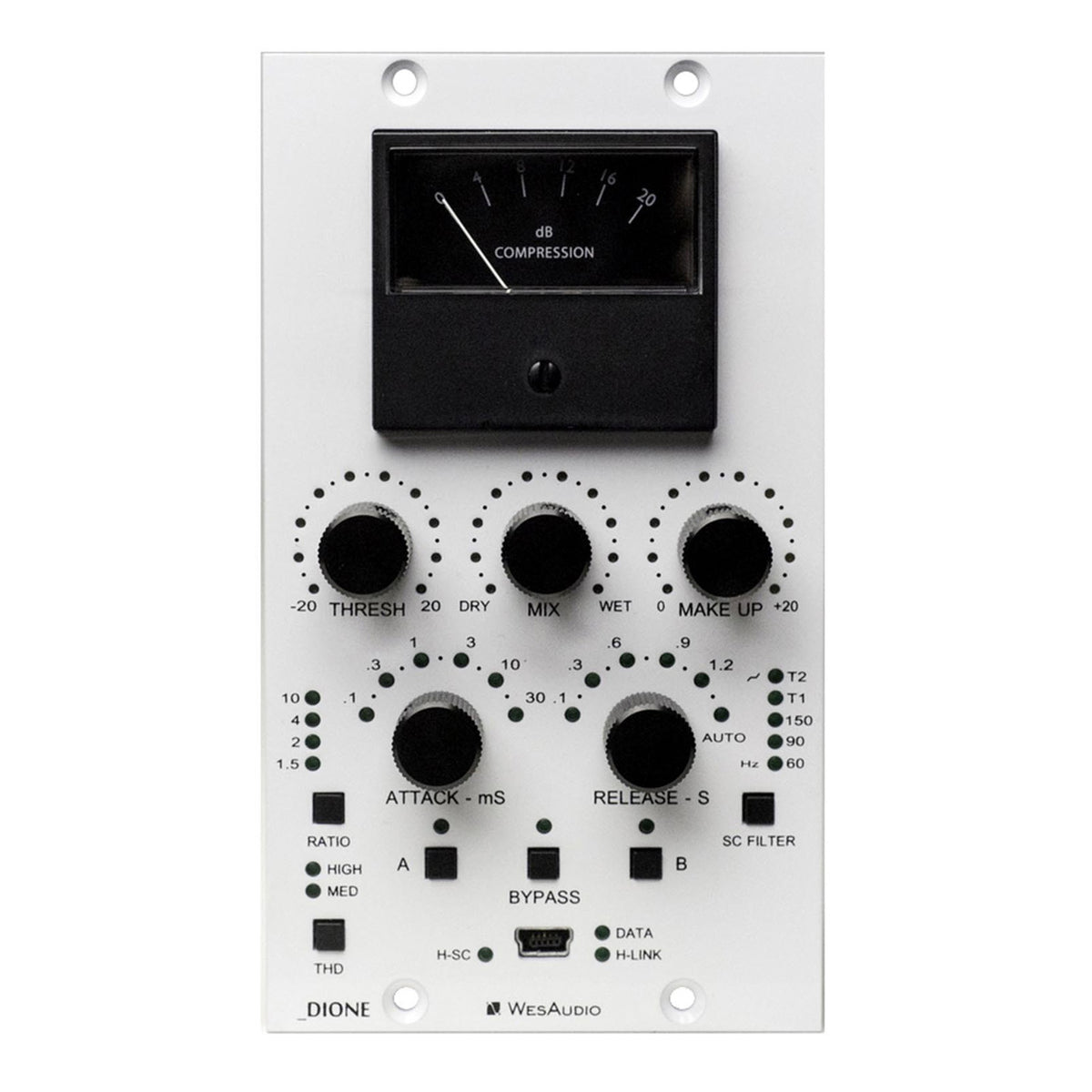

The Wes Audio DIONE implements famous bus compressor design made with best components available on the market. The unit is fully compatible with GCon protocol which allows complete parameters management over USB or through open specification 500 series frame – _TITAN. Besides it's vintage and transparent nature, the unit itself implements many modern features which brings extreme flexibility to shape your sound – like parallel compression or configurable harmonic distortion.
Specs:
- Frequency response: 20Hz-20kHz (0.1dB)
- THD+N (WET): 0.008% (1kHz,0dBu)
- THD+N (DRY): 0.004% (1kHz,0dBu)
- Input impedance: 10kohm
- Output impedance: <100ohm
- Max gain: 21dB
- Crosstalk:
- < -90dB
- Attack: 0.1,0.3,1,3,10,30 (ms)
- Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
- Ratio: 1.5,2.4.10
- SC Filter: 60,90,150,T1,T2
- THD (MID switch): 1%
- THD (HIGH switch): 4%
Note: This unit will not work with the Rupert Neve Designs R6 500 Series rack
Specifications
| Chassis | |
|---|---|
| Module Slot Count | |
| Module Type | |
| Tube or Solid State | |
| Device interface | USB |
