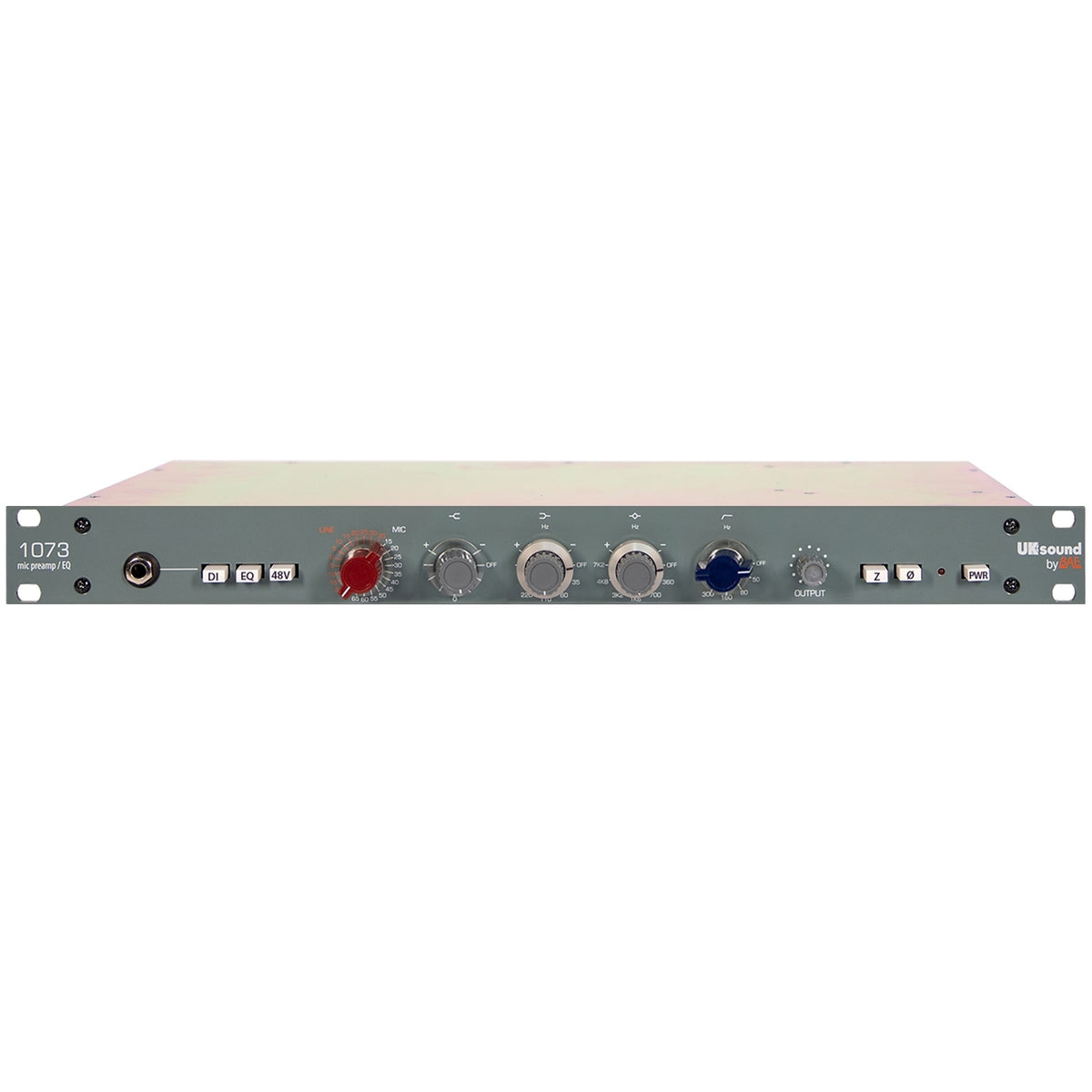

UK Sound 1073 Microphone Preamp/EQ

UK Sound 1073 Microphone Preamp/EQ

$1,500.00
$1,500.00
Skip to product information
UK Sound 1073 Microphone Preamp/EQ
  • UK Sound 1073 Microphone Preamp/EQ
  • UK Sound 1073 Microphone Preamp/EQ
UK Sound

UK Sound 1073 Microphone Preamp/EQ

MFR# UK1073

1073-style mic pre/EQ - Class A, transformer-coupled design in a 19-inch rackmount chassis

Product No Longer Available

Need help finding a different option? We can help.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

Product Description

The UKsound 1073 Mic/Line Preamp/EQ is a faithful recreation of the original 1073, down to the transformers, switches and wire.

The UK Sound 1073 is engineered to be virtually the same as the originals. From chassis construction and connectors to printed circuit board layouts, and circuitry - the UKSound 1073 offers top-quality sound at an attainable price point.

UK Sound builds upon BAE Audio's commitment to recreating some of the most beloved circuits of all time by offering familiar preamps, compressors, and EQs in packages that are accessible to working musicians and engineers building-out their first studios or outfitting a mobile rig. Hand-built in the USA, UK Sound brings quality BAE-designed vintage recreations to a broader audience.

Specifications:

  • High Frequency: ±16 dB fixed frequency shelving at 12 kHz
  • Low Frequency: ±16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz & 220 Hz
  • Mid Range: ±18 dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz & 7.2 kHz
  • High Pass Filter: 18 dB per octave slope, switchable between 50 Hz, 80 Hz, 160 Hz & 300 Hz
