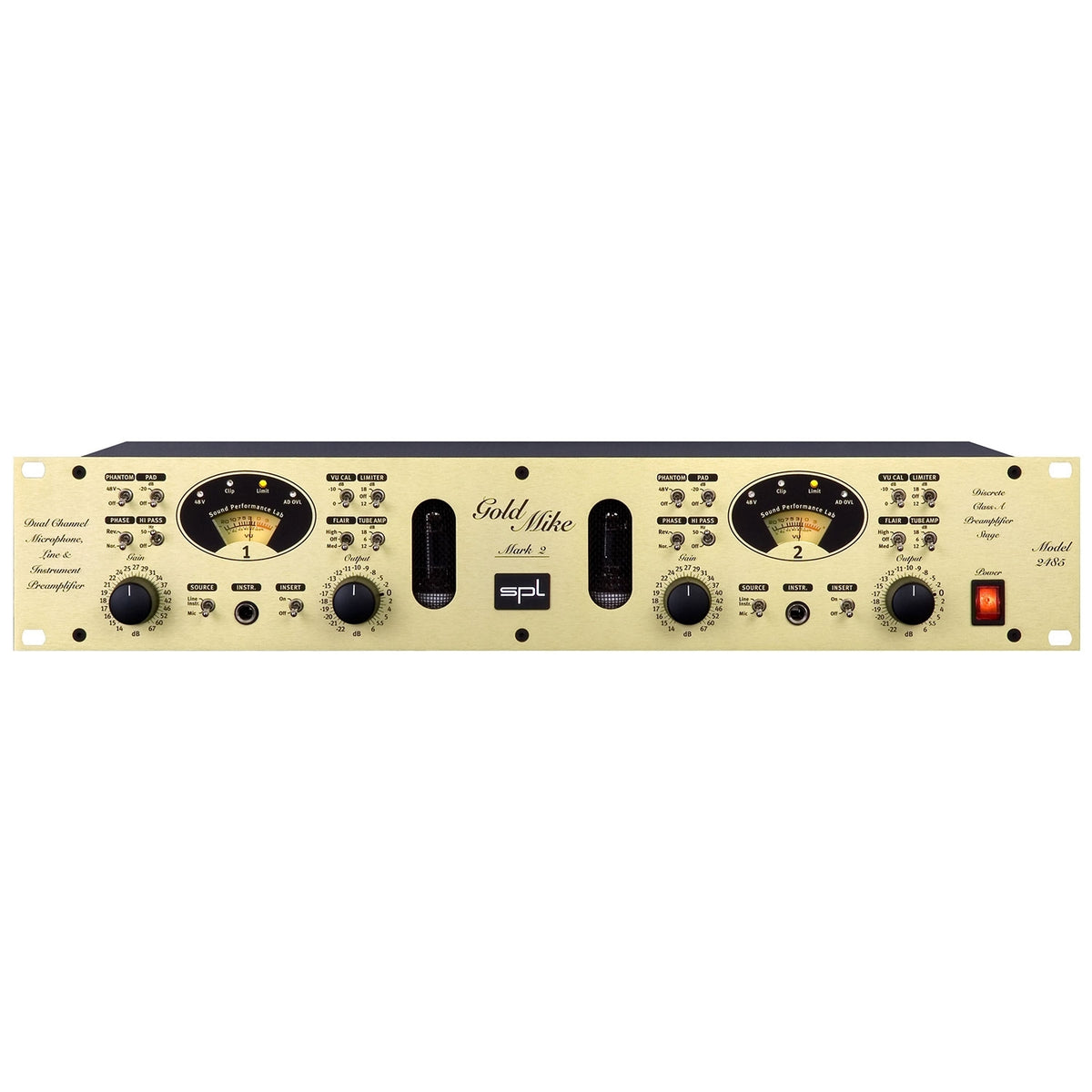

SPL Gold Mike MKII AD Dual-Channel Mic Preamp w/ Digital Out

Product Description

Like its successful predecessor, the SPL GoldMike Mk2 retains a hybrid solid state and tube construction to combine the best of both worlds.

The transistor stage is composed of single transistors in a class A design. The circuitry is fully discrete, and each transistor is completely optimized for its specific task. You will not find any ICs in this preamplifier stage because they cannot be optimized for this specific application to the degree SPL aimed for.

The Hybrid Preamplifier

A significant contribution to the success of the predecessor is the hybrid preamplifier concept. It combines transistor and tube preamplifier stages and specifically utilizes their technological and sonic advantages: The efficiency and low noise of a discrete transistor stage is enriched with musical coloration of a tube stage.

Tube Preamplifier

The degree of tube preamplification is no longer the fixed +6 dB value of its predecessor. The GoldMike Mk2 sports the selection of three different tube pre-amplifications: +6 dB remains the standard complemented by +12 dB and +18 dB. This allows creative variety with the tube saturation and limiting effects.

Flair

SPL have also added an extra setting to the popular Flair circuitry to give more flexibility to the presence improvement.

Dual-Mono PCB Layout

Because the GoldMike Mk2 is a dual channel preamplifier, its channel separation is of fundamental importance for the stereo image. Therefore the print-board layout is symmetrically mirrored around the power supply in the center from channel 1 to channel 2. This results in an identical signal flow to supporting a naturally balanced stereo image. Additionally the print-board provides extra-large ground areas maximizing the shielding against crosstalk and interference.

Optional 24-bit/192 kHz AD converter

The Analog/Digital Converter Module 1090 is an optional digital output for compatible SPL units with a plug-and-play design for easy installation.

It offers an S/P-DIF output with both coaxial and optical connectors in parallel. The heart of the module is a 24-bit converter with a variable sample rate of up to 192 kHz. Highly accurate quartz oscillators ensure a clean, low-jitter master clock. The internal sample rate can be switched between 44.1, 48, 88.2 and 96 kHz. Other sample rates (32, 176,4 and 192 kHz are set by external synchronization.

The converter can be synced to other digital devices via a S/P-DIF input. The internal oscillators are automatically disabled when an external clock signal is present to prevent interference.
