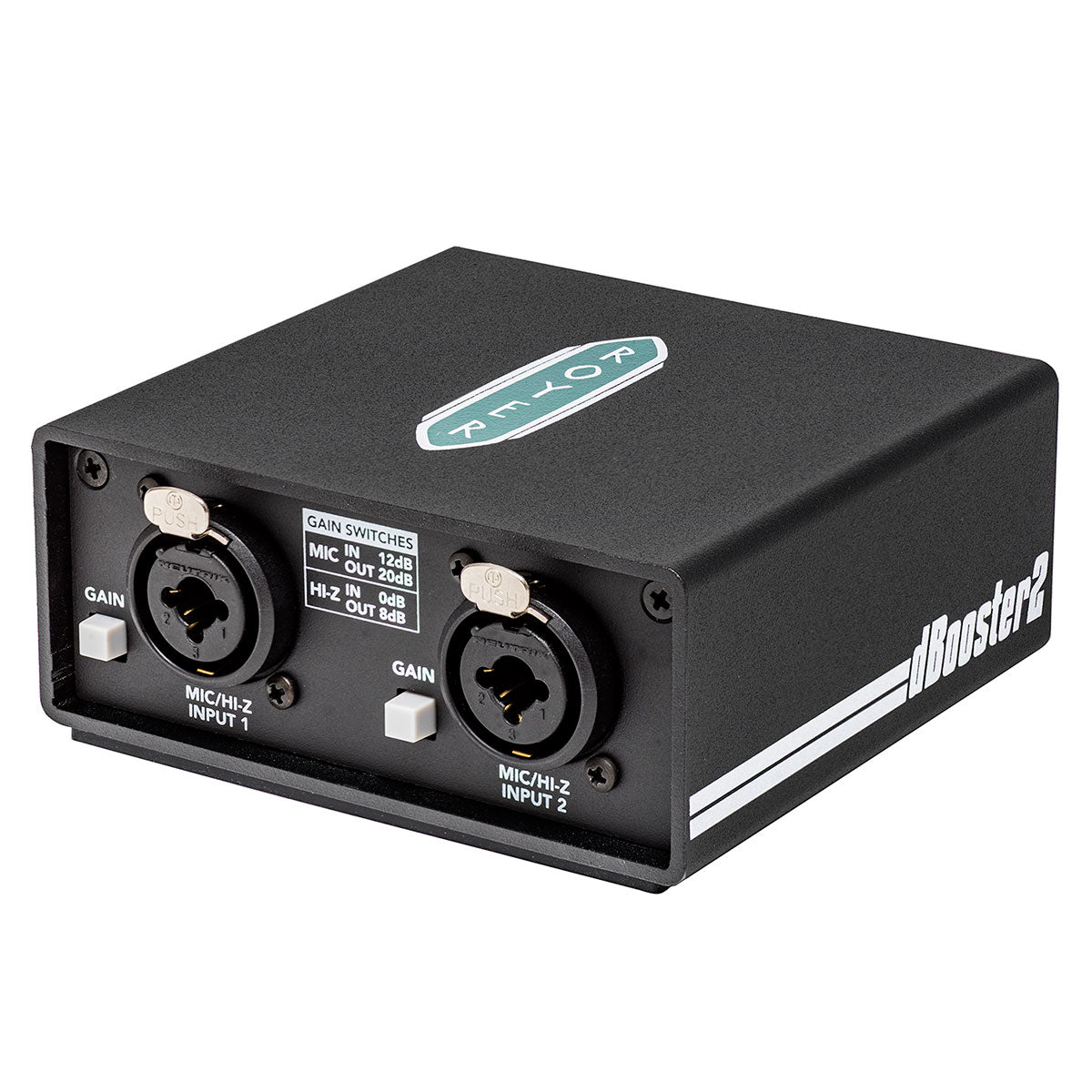

Royer Labs dBooster2 In-Line Signal Booster and DI

Product Description

The Royer Labs dBooster2 In-Line Signal Booster and DI features two channels of dBooster ribbon and dynamic microphone signal boosting and impedance buffering technology. Each channel also doubles as a high-impedance DI.

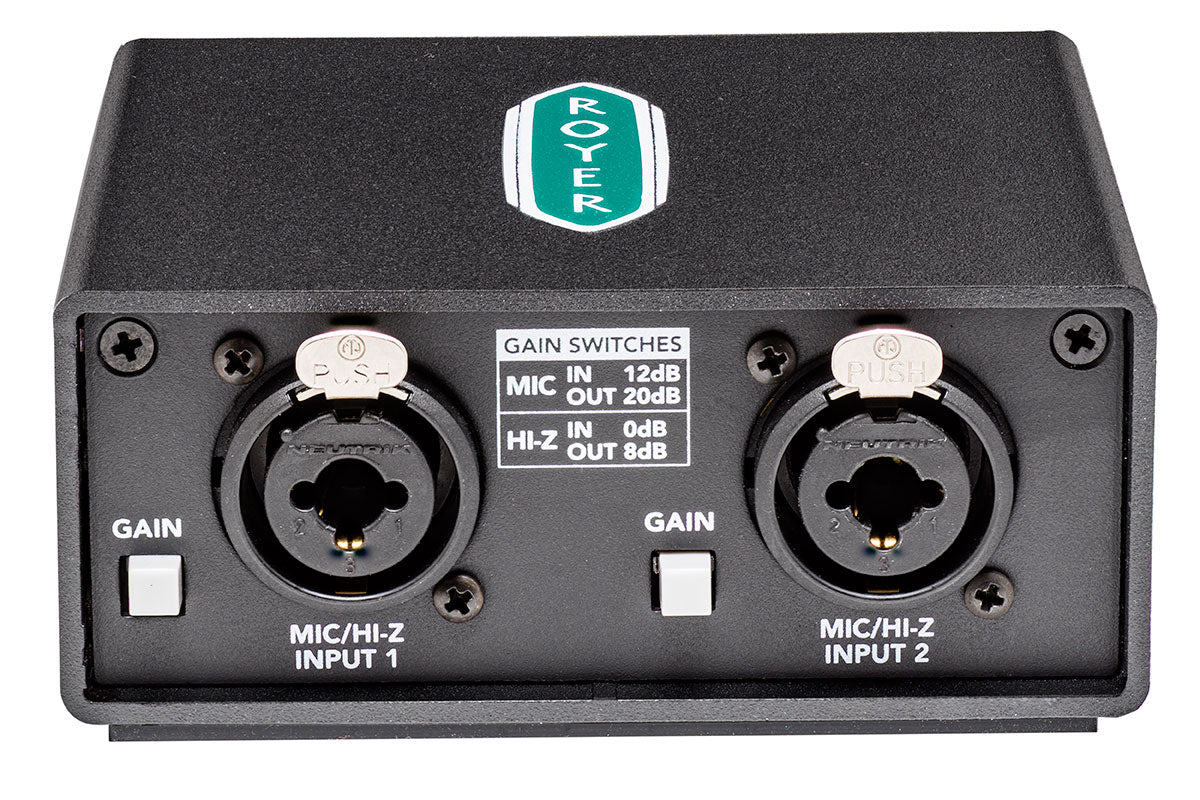

When used as a signal booster, both channels of the dBooster2 increase the level of passive low-output ribbon and dynamic microphones with a minimum of distortion or coloration. Designed for professional applications, each dBooster2 channel offers two levels of clean gain boost: 12 dB or 20 dB, selectable by a front panel switch.

The dBooster2’s Class A input presents a high source impedance to microphones, minimizing loading (damping) and improving headroom. By utilizing the 12/20 dB gain switch, optimum balance between gain and headroom can be achieved for a variety of uses.

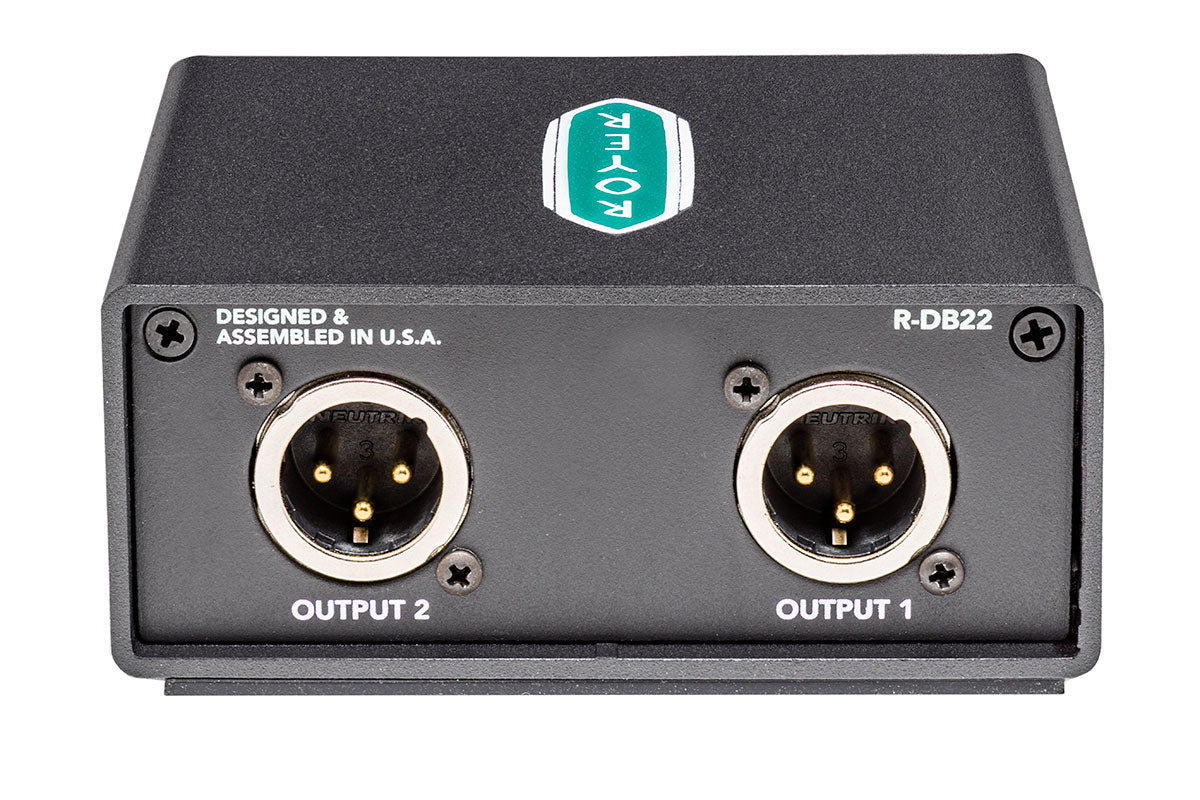

The dBooster2’s low-impedance output is an increased microphone-level signal that can drive a digital interface directly or a standard microphone preamplifier. It also minimizes signal loss on long cable runs.

When used as a DI for unbalanced guitar level sources, the dBooster2 provides either 0 dB or 8 dB of gain, selectable from the front panel switch. The single ended high-impedance (230K-Ohm) DI input maintains headroom and gain regardless of load, with minimal distortion or coloration.

RECOMMENDED APPLICATIONS:

• Miking any low-volume sound source (acoustic instruments, vocals, etc.)
• Recording direct to a DAW interface
• Use on long cable runs to retain sound quality
• DI for direct electric guitar, electric bass, and other instruments

BENEFITS:

• Safe for use on all ribbon mics
• Increases headroom at the preamp
• Provides true electrical isolation
• Protects ribbon mics from phantom-power
• Minimizes mic loading
• Capable of driving difficult loads, such as mic splitters and vintage style preamps, without increased distortion or loss of gain
