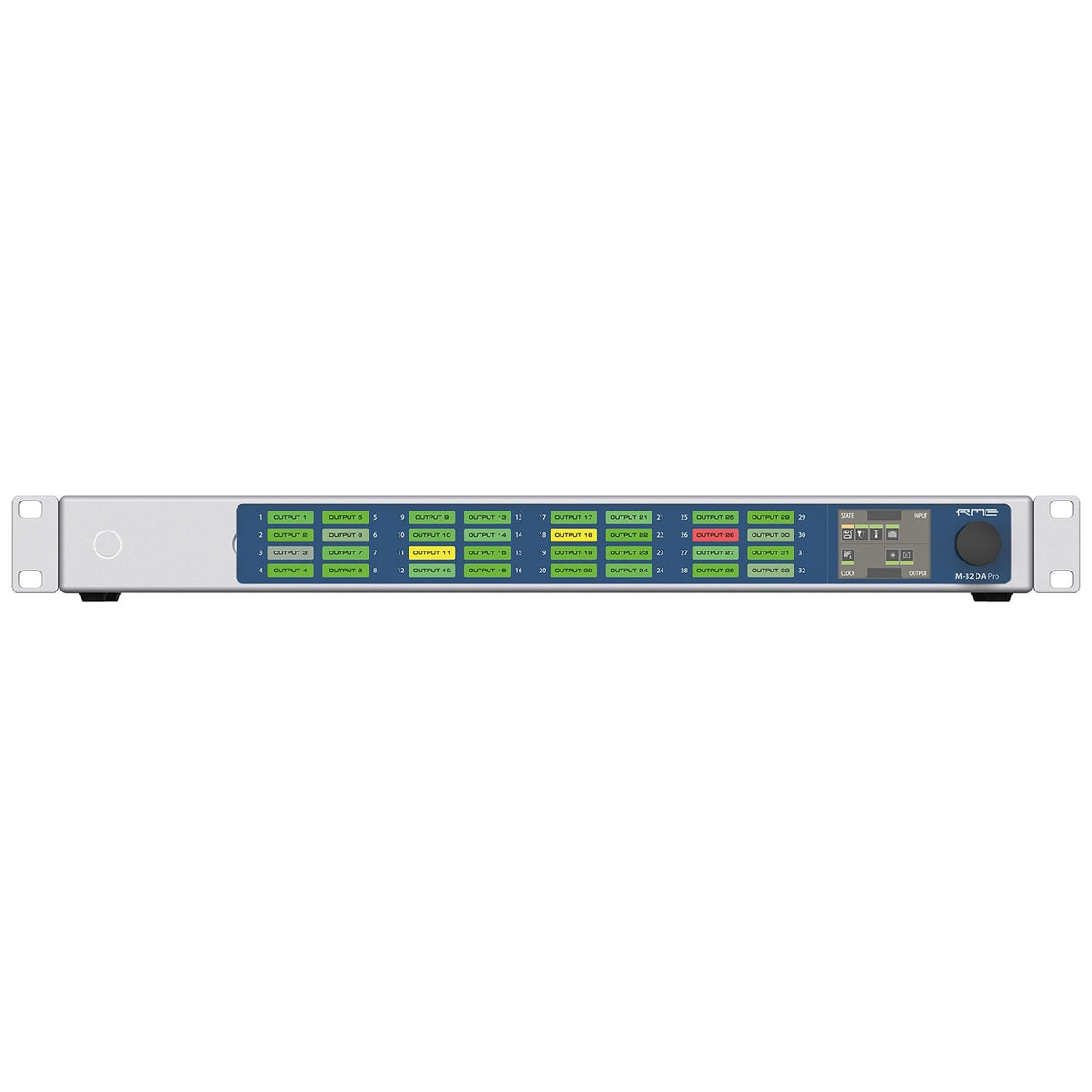

RME M-32 Pro DA AVB Series Converter

Product Description

The RME M-32 Pro DA AVB Series Converter is a high-end 32-channel digital to analog converter based on the original M-32. Equipped with two versatile MADI I/Os and an innovative AVB interface, the M-32 Pro DA is the definitive converter for cutting-edge studios.

BACK AND BETTER THAN EVER

The RME M-32 Pro DA AVB Series Converter integrates several new features into the original M-32 design, including redundant power supplies, more compact housings, network functionality and more.

Shortly after the original M-32 series converters were released, they became an industry standard for their top-tier quality, reliability and high channel count. Now the M-32 series is back and better than ever with new and improved features for modern professional studios, immersive sound stages, live sound systems and more.

CRYSTAL-CLEAR TRANSPARENCY

Equipped with state-of-the-art components and a fully balanced analog circuit design, M-32 Pro series converters deliver class-leading audio referencing. Featuring extremely low THD values, and a signal-to-noise ratio of 120 dB(A), the M-32 series offers crystal-clear audio.

Capable of converting 32 channels of audio with up to 192 kHz sampling frequency, M-32 Pro series converters feature a completely linear frequency response all the way down to 0 Hz.

WELCOME TO THE FUTURE

The world of audio is always changing, which is why RME equipped the M-32 Pro series converters with state-of-the-art technology for effortless studio integration.

In addition to two fully equipped MADI I/Os with individual signal routing, M-32 Pro series converters also feature an AVB interface. With AVB support, you can transmit up to 32 analog channels at a maximum 192 kHz sampling rate over a single Ethernet cable.

M-32 Pro series converters use the open AVDECC 1722.1 control protocol for compatibility with external controllers, allowing you to control your converters from your computer via the network connection and the integrated USB port.

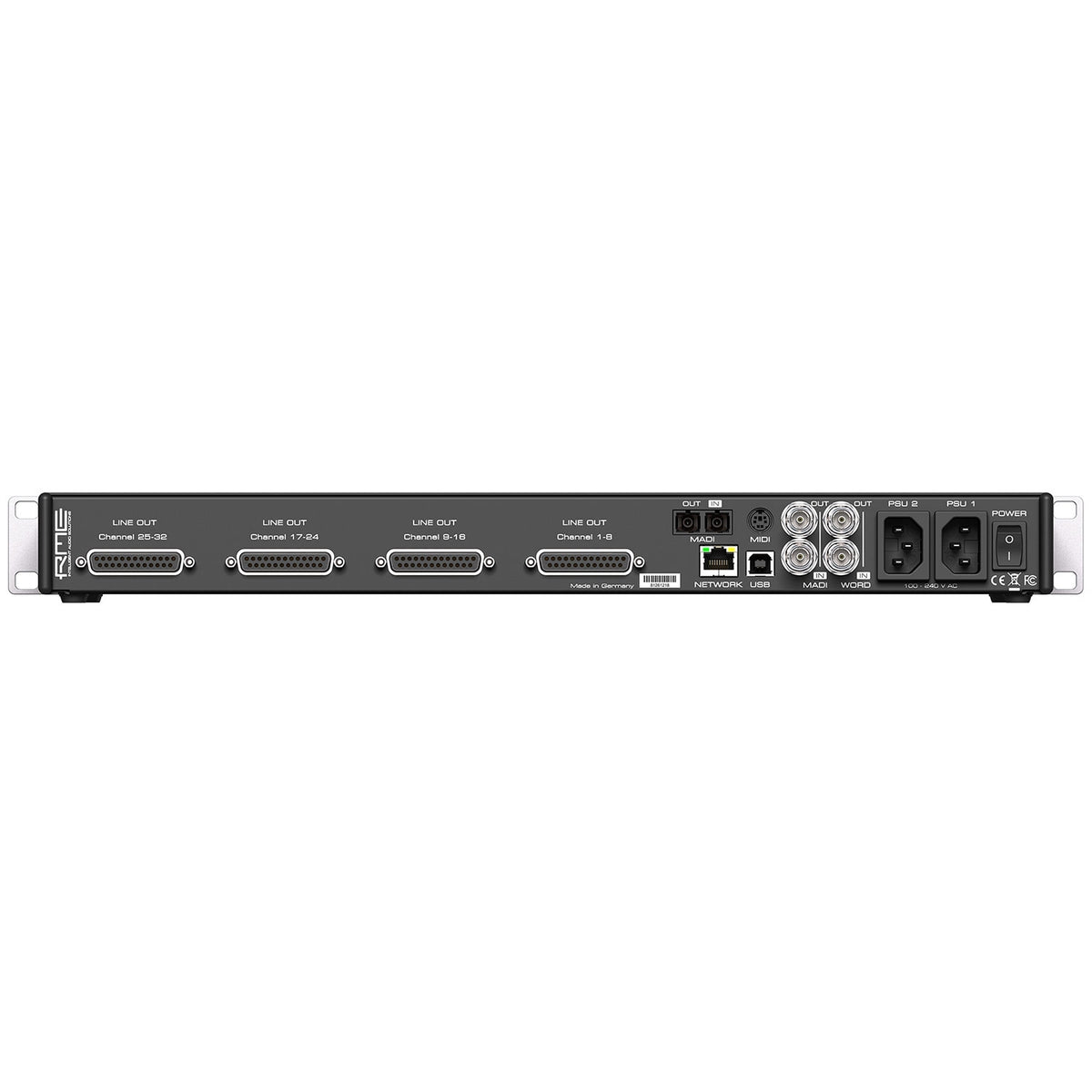

CONNECTIVITY:

• 32 x Analog In (25-pin D-sub, up to +24 dBu)
• 2 x MADI I/O (separate optical SC and coaxial BNC, up to 128 Ch)
• 1 x RJ45 1 GigE AVB, four streams with 4/8/12/16 Ch. each
• Word Clock I/O (BNC)
• USB 2.0 (for remote control)
• 2 x monitored fully redundant internal PSUs
