Product Description

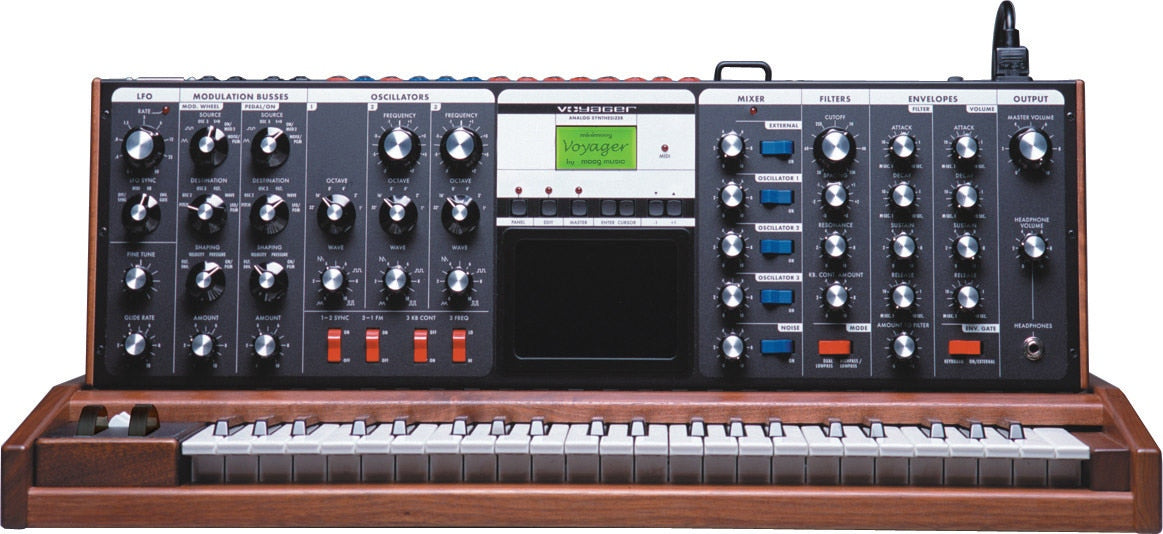

The Minimoog Voyager Synthesizer is a monophonic analog performance synthesizer. It incorporates virtually all of the sound resources and functions of the original Model D Minimoog, which was produced by Moog Music, Inc. from 1970 to 1982. It has many new additional features, including a three dimensional touch surface, MIDI IN and MIDI OUT implementation, extensive patching facilities, and a large number of new panel features.
Of the 896 user accessible presets, 704 come pre-loaded with patches from Nigel Hopkins, Brian Kehew, Will Alexander, Bernie Worrell, Drew Newmann, Amos Gaynes, Steve Dunnington, Aron Magner, Chad Hugo, Darrell Diaz, Frank Lucas, Fred Wreck, Gabrial McNair, Geoffrey Keezer, Herbie Hancock, Khari Simmons, James Lumb, Jamie Muhoberac, Joseph Rivers, Neil Palmer, Printz Board, Randy Cantor, Rick Wakeman, Mark Kline, Zon Vern Pyles, Thomas Wolf.
Additionally, V3.0 adds the following capability to the Voyager: The External Mixer knob (just right of the display panel) has a dual function that allows you to rapidly change presets as opposed to continuously punching the cursor buttons. MIDI enhancements allow you to send either 7 or 14 bit resolution from the Mod Wheel, and optionally reduces the amount of MIDI data being sent from the Touch Surface.
The signal path starts with a bank of three wide-range, high-stability voltage controlled oscillators, one noise source, and one audio preamplifier for externally-applied audio signals. The sound modifiers are two Moog filters and one stereo VCA (Voltage Controlled Amplifier). Modulation sources are two ADSR (Attack Decay Sustain Release) envelope generators and one multiwaveform LFO (Low Frequency Oscillator).Control devices include a 44-key keyboard with velocity and afterpressure outputs, pitch bend and modulation wheels, a three dimensional touch surface, and many control/pedal input jacks.
The Minimoog Voyager has a hinged, multi-position panel and a solid hardwood cabinet. The power supply accepts any power voltage from 100 volts to 240 volts.
