Product Description

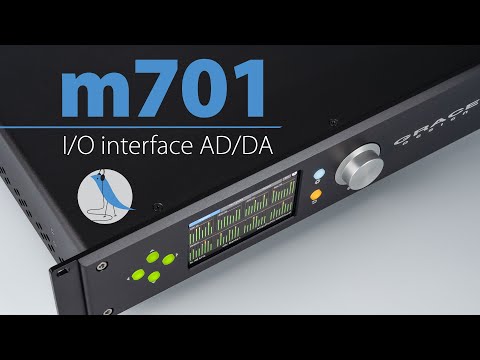

The Grace Design m701 is a modular, high channel count audio interface designed for professional and commercial recording facilities. As Grace Design's first foray into a complete interface design, the goal was to provide their very highest quality AD/DA conversion integrated into a powerful, configurable platform. The m701's modular design allows a wide array of configurations based on your needs. From simple in the box systems to large hybrid studios, the m701 is ready.
MODERN CONVERSION
Grace Design have been building AD/DA conversion into their mic preamp and monitoring products since the early 2000s. During this time, digital audio converter chips have achieved a very mature state. Today it is hard to find a bad converter chip. But building a complete audio product around any converter still requires careful and expert audio design skills, which we have been honing for decades. Analog input and output circuitry, power supply, and clock design matter more than ever, and are what differentiates a great sounding I/O device from the rest. The m701 furthers Grace Design's legacy of open and musical sounding audio hardware with a remarkably powerful studio I/O tool.
MASSIVE I/O CAPABILITY

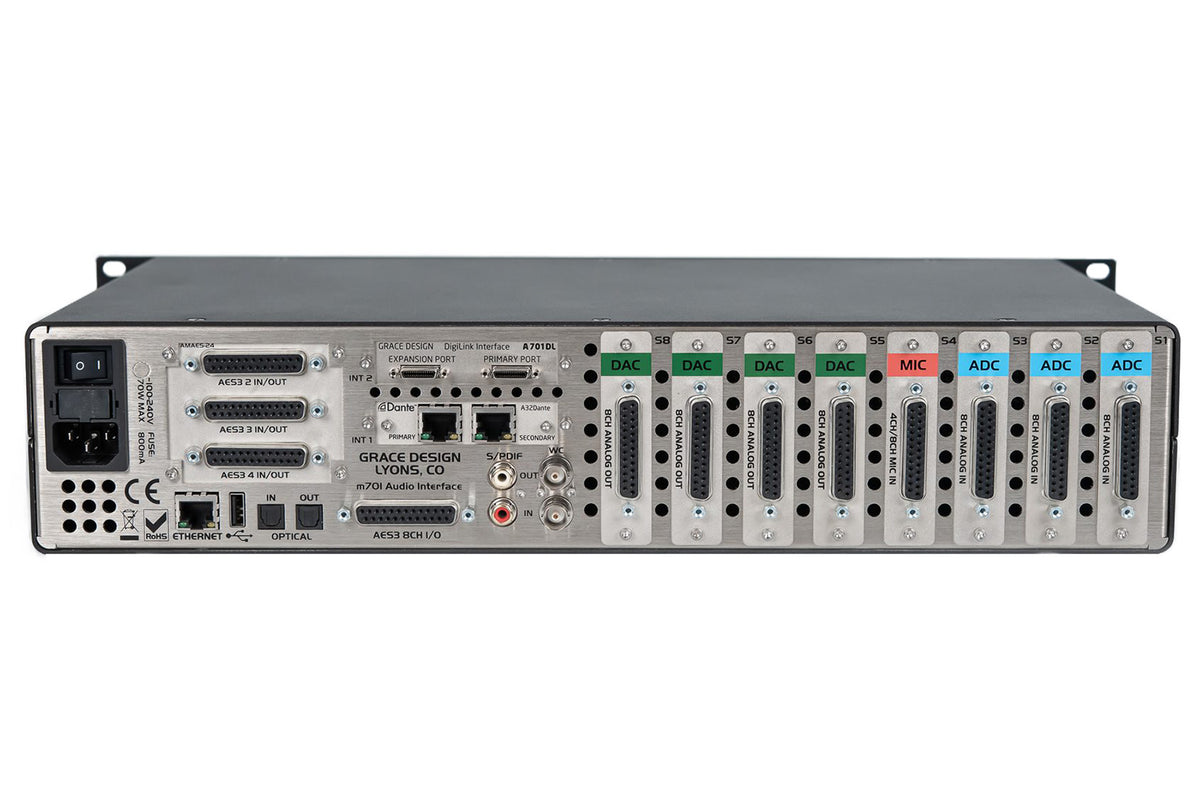

Individual 8 channel ADC and DAC modules can be installed in any combination into the 8 available card slots, allowing for a wide array of I/O combinations based on the customer’s need. Digital I/O options include: two 32 channel module slots for Digilink, Dante, USB2 (upcoming), Ravenna/AES67/ST2110 and other future formats. A third option module slot is provided for expanding m701 digital I/O capabilities, such as an additional 24 channel AES3 I/O module, Word Clock distribution module, or future studio monitoring functionality. Included baseboard digital I/O connections are 8-channel AES, 8-channel ADAT and 2-channel S/PDIF. Also, optional Grace Design high-quality 4-channel microphone preamplifier modules can mounted in any of the 8 card slots.
GRACENET

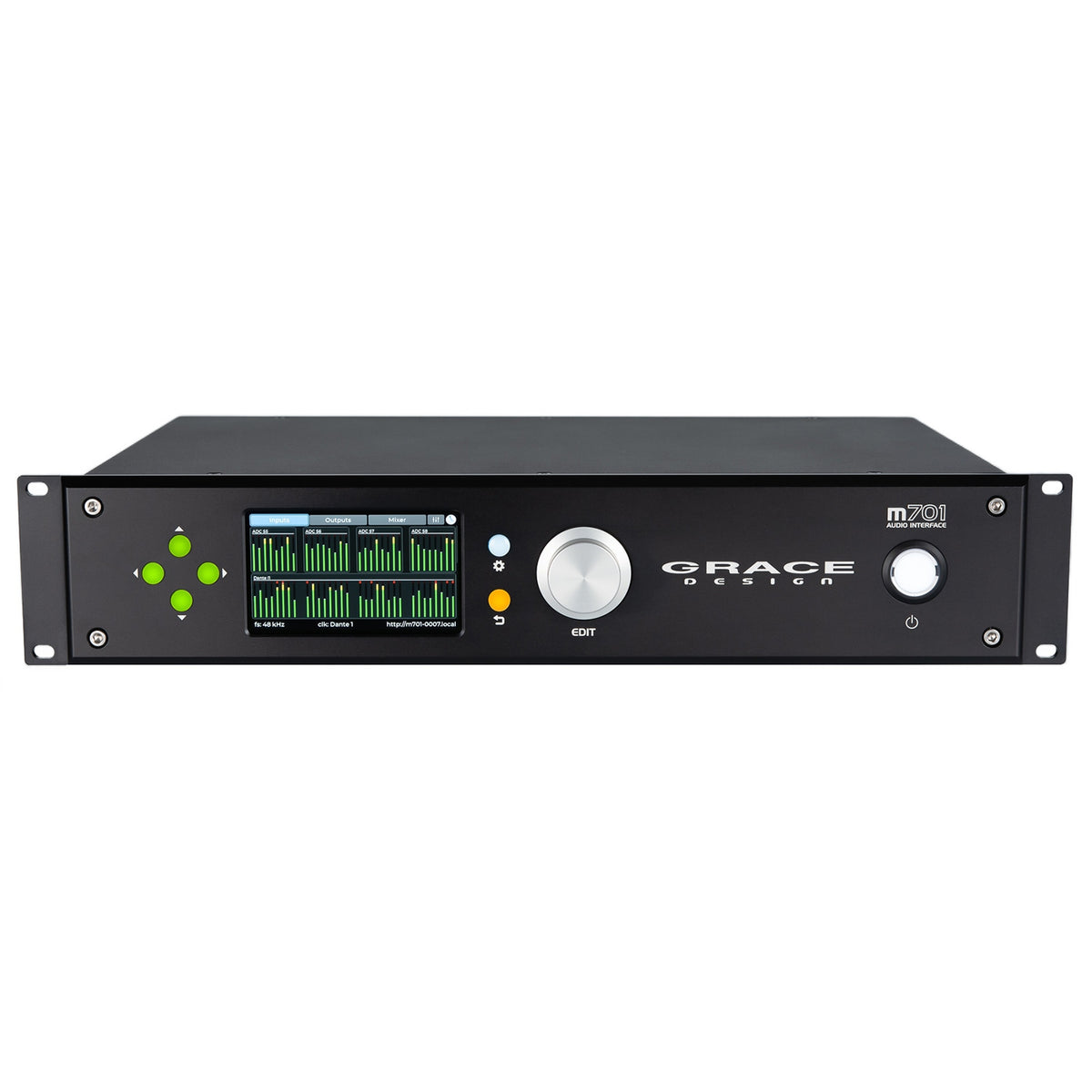

Configuring and operating the m701 is done at either the front panel or via the GraceNet web-based control software. GraceNet is built-in and automatically works with any browser – there is no software to install or update. The home screens for both the front panel hardware and GraceNet display comprehensive metering views for all inputs and outputs, as well as give access to all configuration and setup functions. GraceNet even includes an integrated control interface for Grace Design m108 microphone preamplifiers.
CUE MIXING BUILT-IN
A built-in 32×8 mixer allows for multiple low latency cue mixes in a tracking environment, with individual mixers made available to the artist via GraceNet and a personal device (phone or tablet).
FEATURES:
BASE UNIT
- Modular audio interface and AD/DA converter with up to 64 channel analog I/O and up to 202 channel digital I/O
- Eight 8-channel AD/DA option slots
- 8-channel ADAT, 8-channel AES3, 2-channel S/PDIF
- Integrated control for Grace Design m108 mic preamplifiers
- GraceNet built-in Ethernet/web browser control
- Built-in 32×8 low latency cue mixer
- System workflow load, edit, save, and recall
INCLUDED OPTION CARDS
- 32x32 channel Dante interface card
- One 8-channel ADC card
- One 8-channel DAC card
Specifications
| Chassis | |
|---|---|
| Digital Format | AES/EBU, Dante, S/PDIF |
| Device interface | Ethernet |
| Rack format | 19-inch rackmount 2U |
