Product Description

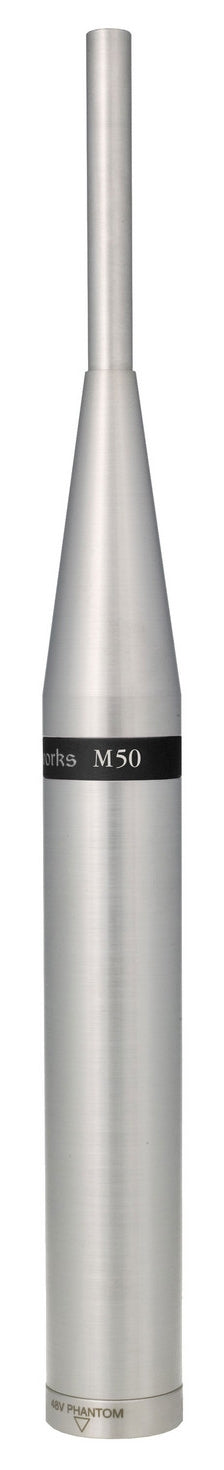

The Earthworks M50 offers extended frequency response and extraordinary impulse response for the most challenging of measurement applications.
Specifications:
- Frequency response: +1/-3dB 5hz to 50kHz
- Polar pattern: omnidirectional
- Sensitivity: 30mV/Pa (-30.5 dBV/Pa)
- Power requirements: 48V phantom, 10mA
- Max acoustic input: 142dB SPL
- Peak output voltage: 10V
- Output: XLR intended to drive a balanced transformerless input (pin 2+)
- Min output load: 600ohms between pin2 and 3
- Noise: 22dB SPL equivalent (A weighted)
- Dimensions (LxD): 229mm x 22mm (9 x .860 inches)
- Influence of magnetic field: 80A/M induces less than 52dB SPL equivalent
- Includes wood microphone box
Specifications
| Package Contents | |
|---|---|
| Diameter | |
| Length | |
| Frequency Range | |
| Impedance | |
| Number of Microphones | |
| Phantom Required | Yes |
| Polar Pattern | Cardioid, Omni-Directional |
| Sensitivity | |
| Maximum SPL | |
| Transducer Type | Condenser |
| Tube or Solid State |
