Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source

Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source

$129.99
$129.99
Skip to product information
Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source
  • Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source
  • Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source
  • Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source
  • Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source
Disaster Area Designs

Disaster Area Designs micro.CLOCK MIDI Tap Tempo and Clock Source

MFR# micro.CLOCK

Micro-sized MIDI tap tempo and clock source allowing you to synchronize your tempo-enabled MIDI and non-MIDI devices

Product No Longer Available

Need help finding a different option? We can help.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

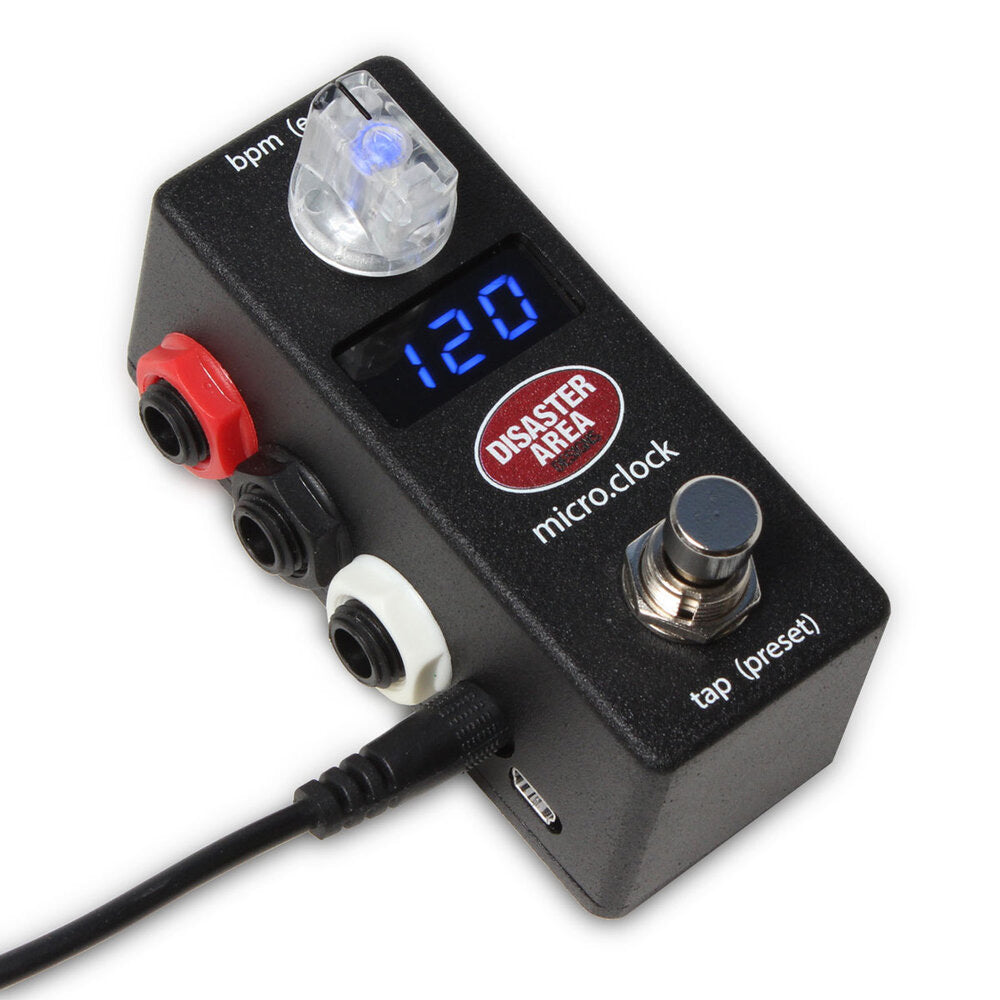

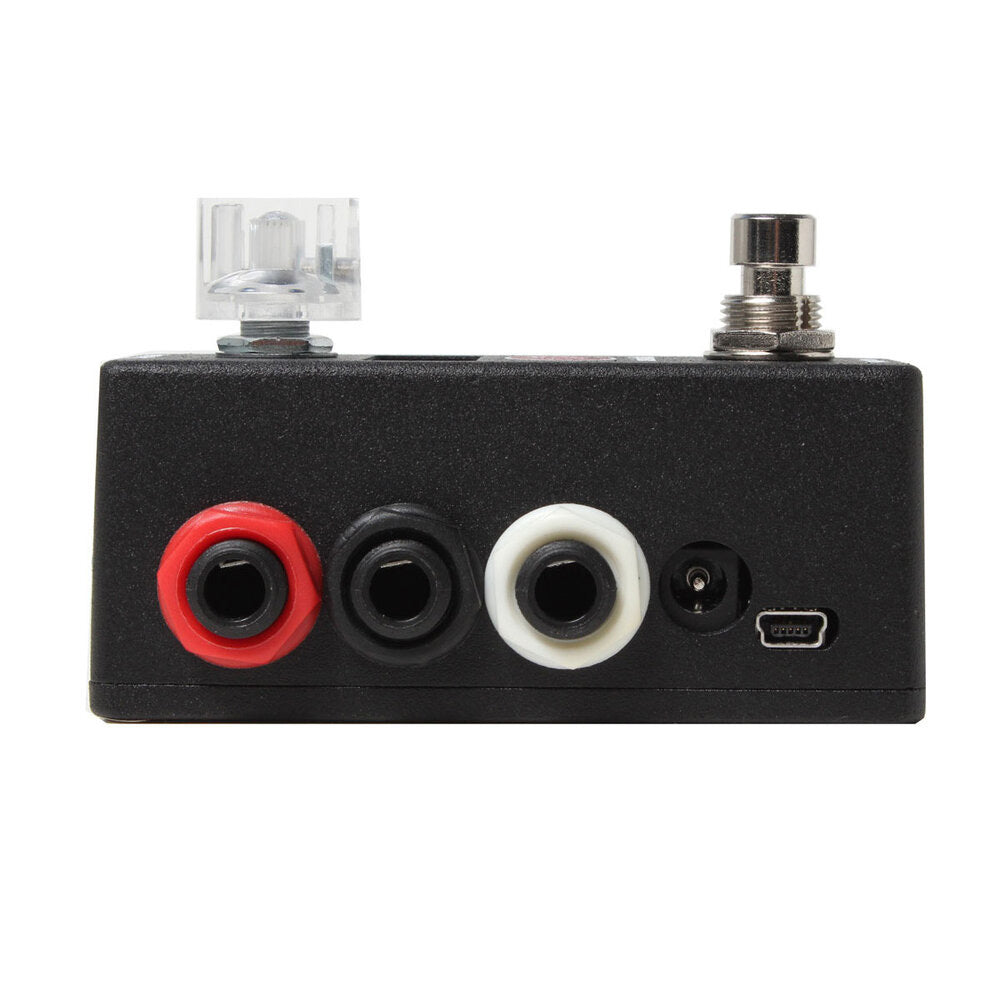

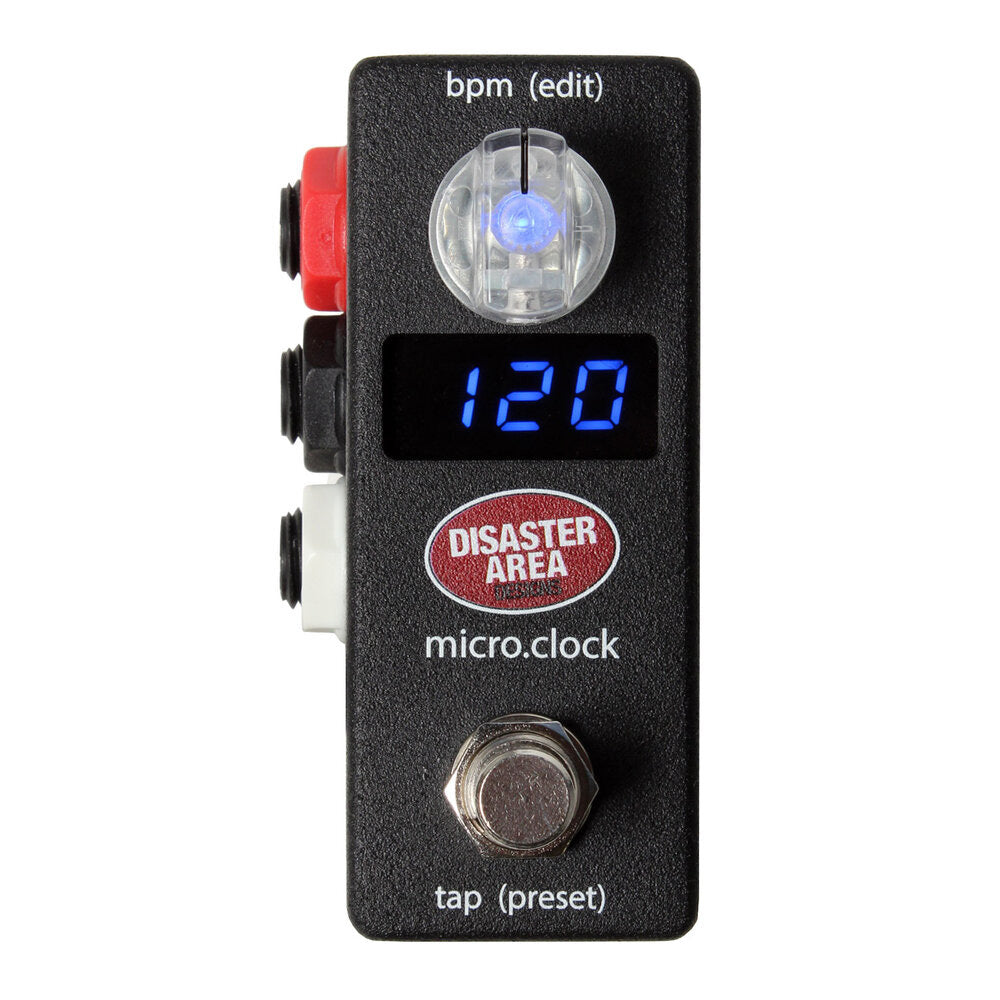

The Disaster Area Designs micro.CLOCK leverages Disaster Area's advanced SMARTClock technology in a tiny package – just 3.6″ x 1.5″ x 1.6″ (93 x 38 x 42 mm) Tap the footswitch to set the master clock tempo. The micro.CLOCK will then send taps to your devices to lock them in to your music. Selectable subdivisions let you tap in quarter-notes and set your devices to dotted-eighths, eight-notes, or triplets! Tap the knob to view or change the subdivisions or output settings for each output, then hold the knob to save the current settings to a preset. Hold the footswitch down to advance to the next preset. You can even set the number of accessible presets so that you only use what you need.

Each tempo preset allows you to specify a tempo in BPM or milliseconds, as well as subdivisions or toggle settings for each of the three outputs. You can also set the micro.CLOCK to send a MIDI Program Change to an external MIDI device.

Have a pedal that needs an odd or unusual configuration for tempo control? The micro.CLOCK works with devices that accept a normally-open or normally-closed footswitch, and can even send 0-3.3V control voltage that works with pedals with expression control of delay / tempo. Check with your pedal builder for details on their expression options!

COMPATABILITY:

TAP OUTPUTS

The micro.CLOCK Gen3 is compatible with virtually every pedal or effects unit equipped with a remote tap tempo input jack. In toggle mode, the micro.CLOCK outputs can work as a “fixed expression” control with many devices. Please note that some devices may require the use of a TRS / stereo cable or to have the micro.CLOCK pull-up resistors enabled for certain functions.

  • Alexander – Tap: History Lesson, Super Radical, Oblivion, Radical Delay ][+, Chesapeake, Equilibrium DLX, Quadrant, Colour Theory, Wavelength
  • Alexander – Favorite: Super Radical, Oblivion, Radical Delay ][+, History Lesson, All Neo Series pedals
  • BOSS – Tap DD-500, RV-500, MD-500, SY-300, DD-5, DD-7, DD-20, PH-3, AW-3 (requires connected output set to normally closed.)
  • Catalinbread – Semaphore, Belle Epoch Deluxe (uses Control Voltage mode)
  • Chase Bliss – Tap All pedals except Brothers, Dark World
  • Chase Bliss – Favorite All pedals
  • Cusack – Tap-A-Whirl, Tap-A-Delay, Tap-A-Phase, Tap-A-Scream, more. (requires 1/4″ to RCA cable)
  • Disaster Area – Gen2 (DMC-3XL, DMC-4, DMC-6D, DMC-8D, DMC-7, DMC-6L, DPC-5) and Gen3 (DMC-3XL, DMC-4, DMC-6, DMC-8, DPC-5, NNB)
  • Electro-Harmonix – Tap: Deluxe Memory Man with Tap 1100 / 550, Super Pulsar
  • Electro-Harmonix – Expression: HOG2, Pitch Fork, Cock Fight, more
  • Eventide – H9, Timefactor, Modfactor, Pitchfactor, Space
  • JHS – Panther, Panther Cub, Emperor, Unicorn, Pink Panther
  • Line 6 – Favorite / Expression: AM-4, DL-4, DM-4, MM-4, M5, M9, M13. Not compatible for tap tempo with Line 6.
  • Matthews Effects – Conductor
  • MXR – Echoplex Delay, Carbon Copy Deluxe
  • Strymon – Tap: Timeline, Mobius, BigSky, Flint, Deco, Dig
  • Strymon – Favorite: Brigadier, Deco, DIG, El Capistan, Flint, Lex, Riverside, Sunset
  • Walrus Audio – Tap: Bellwether, ARP-87
  • Walrus Audio – *Favorite: Vanguard, Descent (use expression pedal input)

MIDI CLOCK

Please note that the micro.CLOCK requires the use of an adapter cable for MIDI input and output.

  • Alexander – Oblivion, Super Radical, Quadrant, Colour Theory, Wavelength
  • Boss – DD-500, SL-20 Slicer
  • Chase Bliss – All pedals except Brothers and Condor
  • Empress – Echosystem, Reverb, Tremolo2, Phaser
  • Eventide – H9, Timefactor, Modfactor, Pitchfactor, Space
  • Electro-Harmonix – 8-Step Program
  • Line 6 – M5, M9, M13, more
  • Meris – OttoBit Jr., Polymoon
  • Moog – MF-104M Delay, MF-104MSD Super Delay, MF-105M MIDI MurF, MF-108M Cluster Flux
  • Pigtronix – Echolution 2 (including Deluxe and Filter / Filter Pro,) Infinity
  • Source Audio – Orbital, Manta, Stingray, Gemini, Lunar, Mercury (All require use of Soundblox or Neuro Hub,) Nemesis Delay, Reflex
  • Strymon – Timeline, Mobius, BigSky
  • TC Electronic – Flashback X4, Alter Ego X4, Flashback Triple Delay, Ditto X4,
  • Z-Vex – Super Seek-Trem, Super Ringtone, Super Seek-Wah
