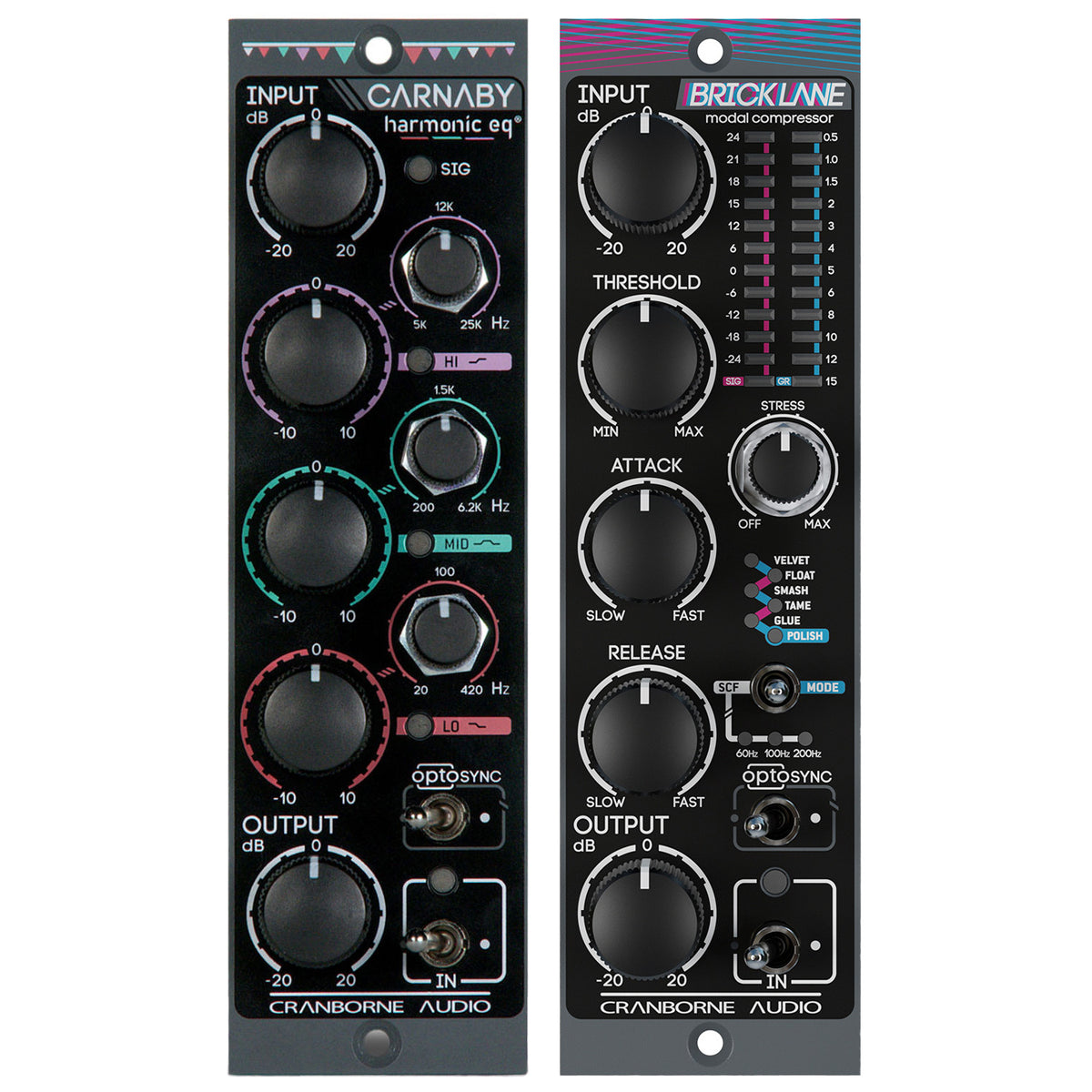

Cranborne Audio Carnaby and Brick Lane 500 Series EQ and Compressor Bundle

Product Description

Get Cranborne's harmonic EQ and PWM compressor in your 500 Series rack with the Cranborne Audio Carnaby and Brick Lane 500 Series EQ and Compressor Bundle.

The Carnaby 500 is a 3-band parametric EQ for the 500 series format with a unique and revolutionary EQ concept conceived and created by Cranborne Audio. Carnaby 500 is the world’s first Harmonic EQ - an analog EQ that uses harmonic saturation to boost and cut frequency content. It enhances your sources, stems and mixes with genuine analog harmonic saturation with the feel, familiarity, and control of an equalizer.

The Brick Lane is a groundbreaking analog compressor module that brings unparalleled flexibility to your 500 Series rack. Featuring a revolutionary Modal PWM Compression architecture, it offers six unique compression modes, each delivering a distinct sonic character. With its innovative Stress control for dynamic harmonic saturation, exclusive Analog Lookahead Technology, and OPTOSYNC for effortless stereo linking, the Brick Lane 500 opens up a whole new world of creative possibilities.

CRANBORNE AUDIO CARNABY AND BRICK LANE 500 SERIES EQ AND COMPRESSOR BUNDLE FEATURES:

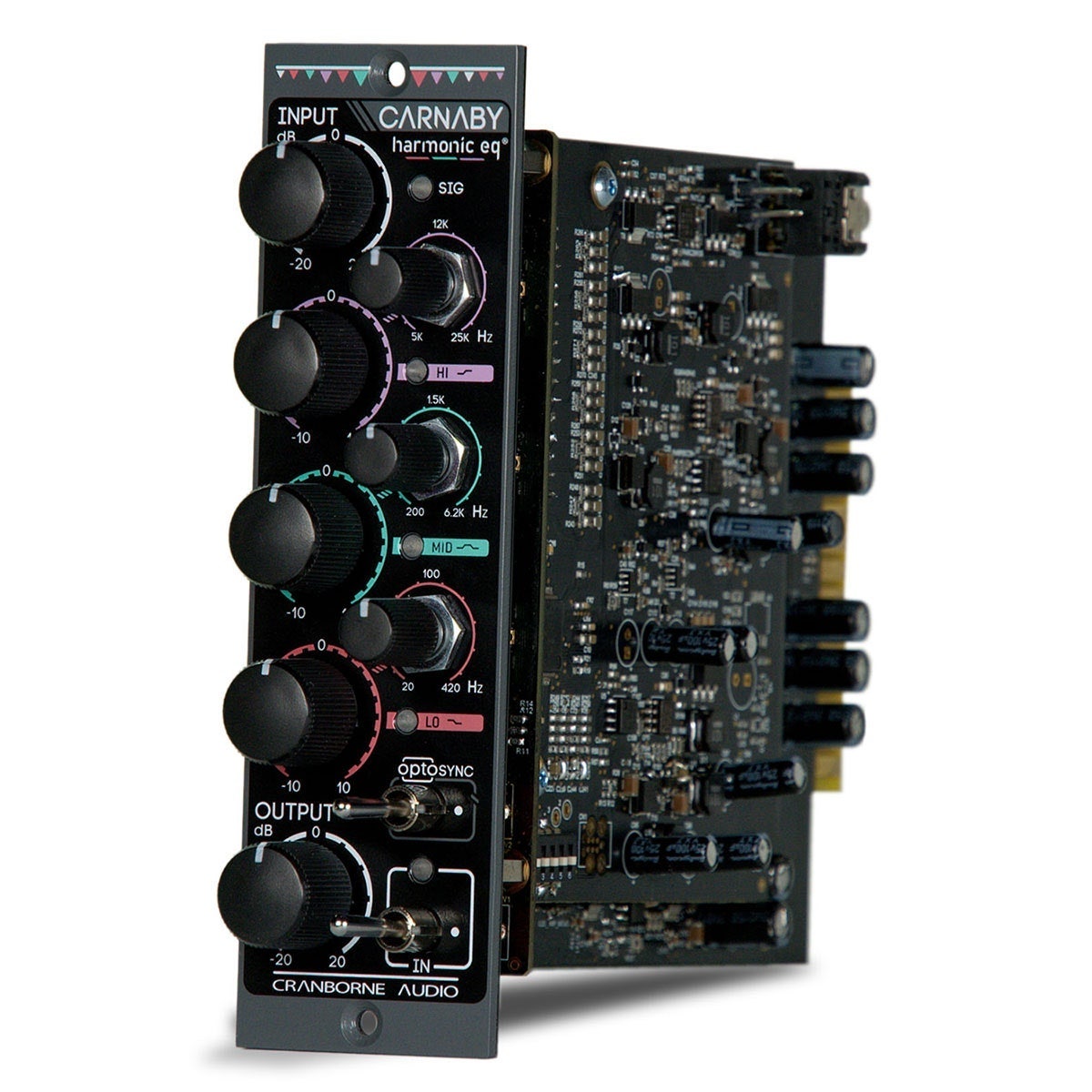

CARNABY 500

• 3-band, 500 Series Harmonic EQTM meticulously developed by the Cranborne Audio team in the UK
• Parametric LO and HI shelving bands with ±10 dB of cut/boost and harmonic saturation
• Parametric peaking MID band with ±10 dB of cut/boost, fixed Q and harmonic saturation
• LO, MID, and HI LED indicators to display saturation level
• ±20 dB Input and Output Level for dense harmonic saturation or clean EQ effects
• OptoSync wireless communication between modules for linked controls during stereo operation
• ⅛” TRS socket for linking non-adjacent modules
• Circuit auto-calibration for perfect stereo matching between all modules
• True-bypass IN/OUT switching with complete or post input trim modes available on DIP switch
• Stepped, front-panel controls for quick recall and precise feel

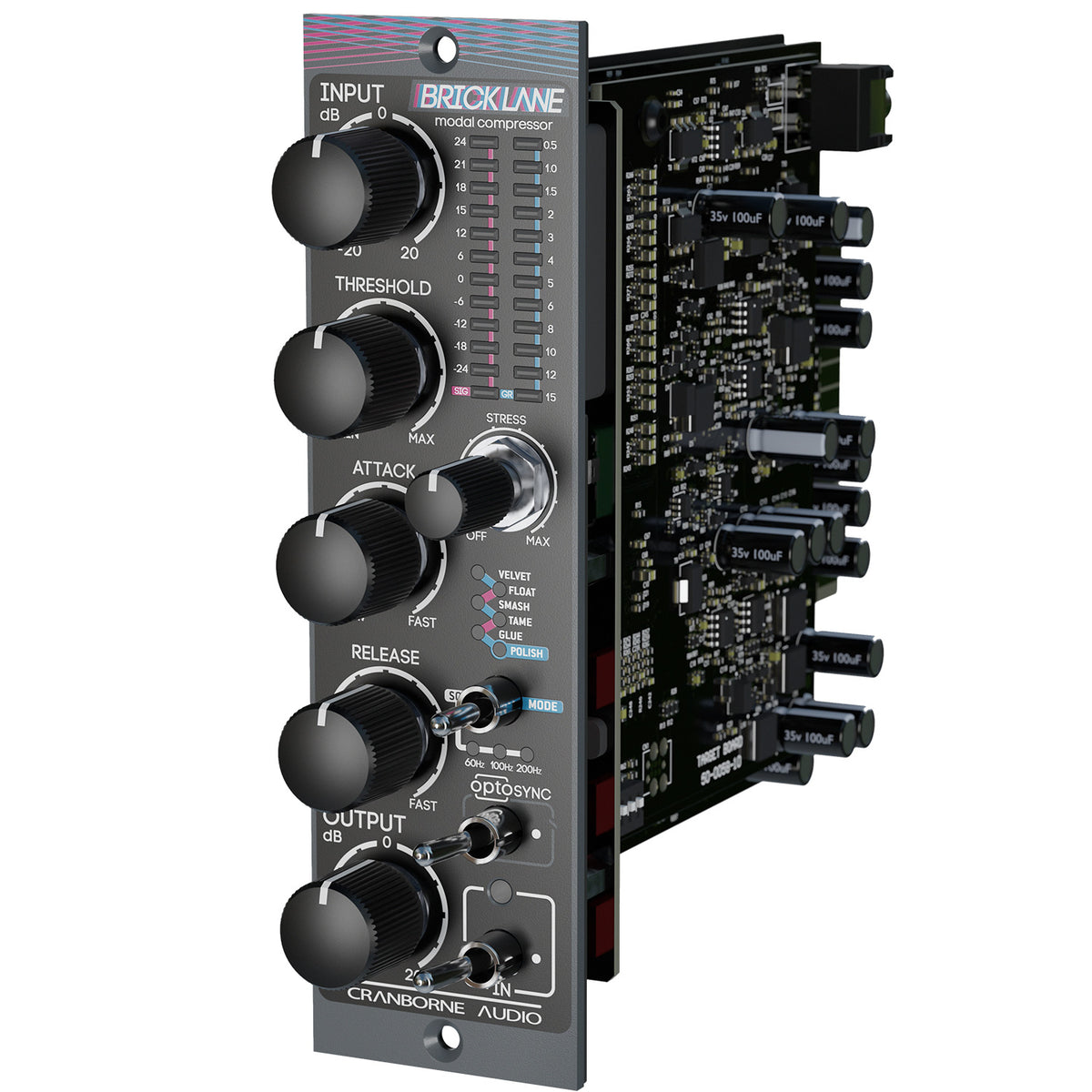

BRICK LANE 500

• 500 Series Modal PWM Compressor meticulously developed by the Cranborne Audio team in the UK
• Custom PWM compression circuit and unique 'Stress' control for Harmonically-enriched compression effects
• 6 compression modes: Velvet, Float, Smash, Tame, Glue, and Polish set compression ratio, knee, compression style, and compression rate of change.
• Threshold control and variable-range Attack and Release controls (altered per mode)
• 12-segment LED level meter and 12-segment LED Gain Reduction Meter
• 4 selectable sidechain HPF modes - OFF, 60 Hz, 100 Hz, 200 Hz
• ±20 dB Input and Output/Make-up Gain Level to tailor the compression and saturation character to the source
• OptoSync wireless communication between modules for linked controls during stereo operation
• ⅛" TRS socket for linking non-adjacent modules
• Circuit auto-calibration for perfect stereo matching between all modules
• True-bypass IN/OUT switching with complete or post input trim modes available on DIP switch
• Stepped, front-panel controls for quick recall and precise feel
