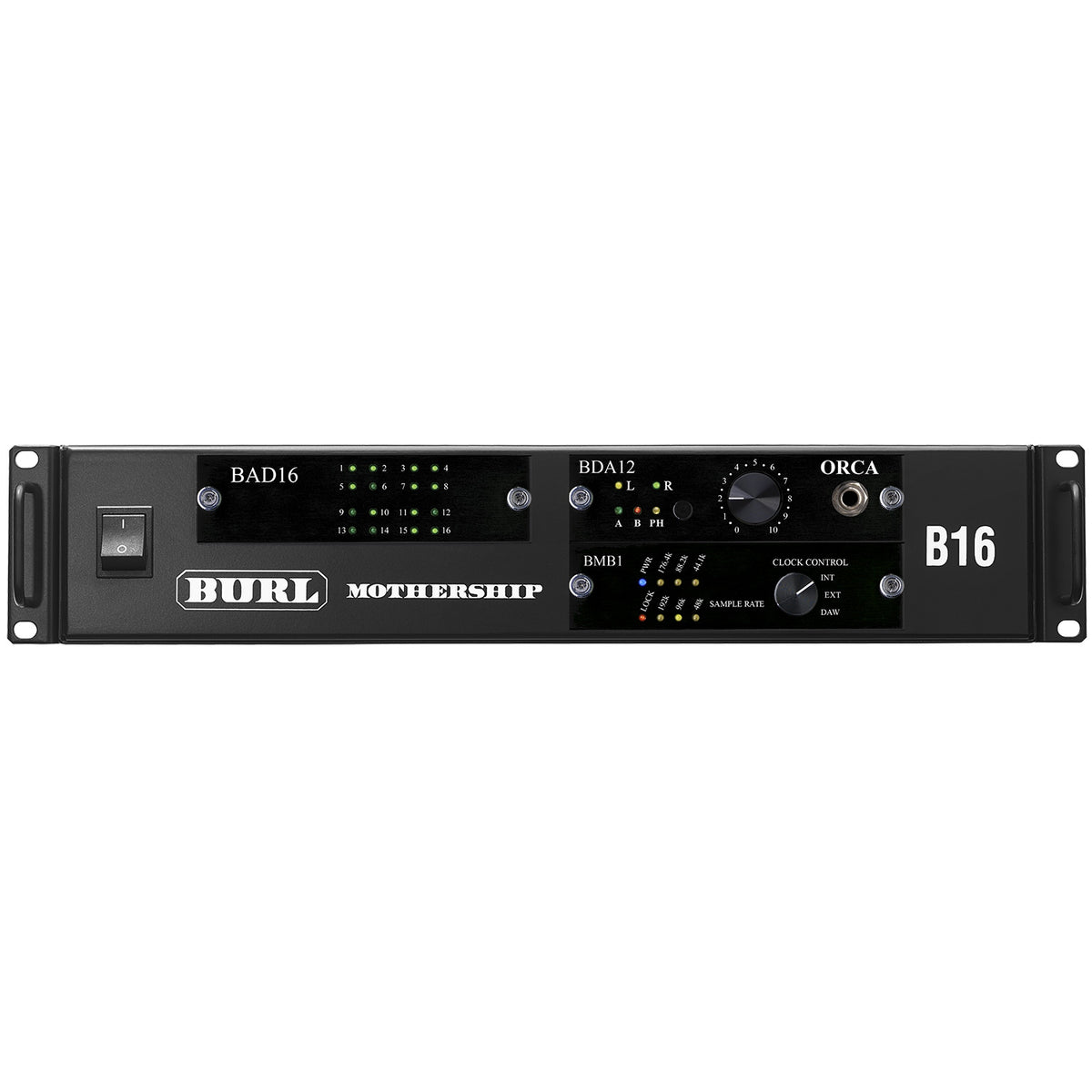

BURL Audio B16 MOTHERSHIP 3 with BMB1 Digilink Motherboard and BAD16, BDA12 Daughter Cards

Product Description

The BURL Audio B16 MOTHERSHIP 3 is a 2U, 2-slot version of the revolutionary B80 MOTHERSHIP, Burl Audio’s signature product. Simply put, the B80 MOTHERSHIP has redefined digital recording, and now the legendary sound can be found in a smaller, more portable B16 MOTHERSHIP. Utilizing technology developed for the B80, the B16 MOTHERSHIP uses the exact same I/O cards as the B80 MOTHERSHIP, continuing Burl Audio's deep dedication to analog, Class A circuitry. The result is not only heard, but it is also felt. The MOTHERSHIP stands out from every other interface on the market not because it is colored, but because it does not sterilize the source.

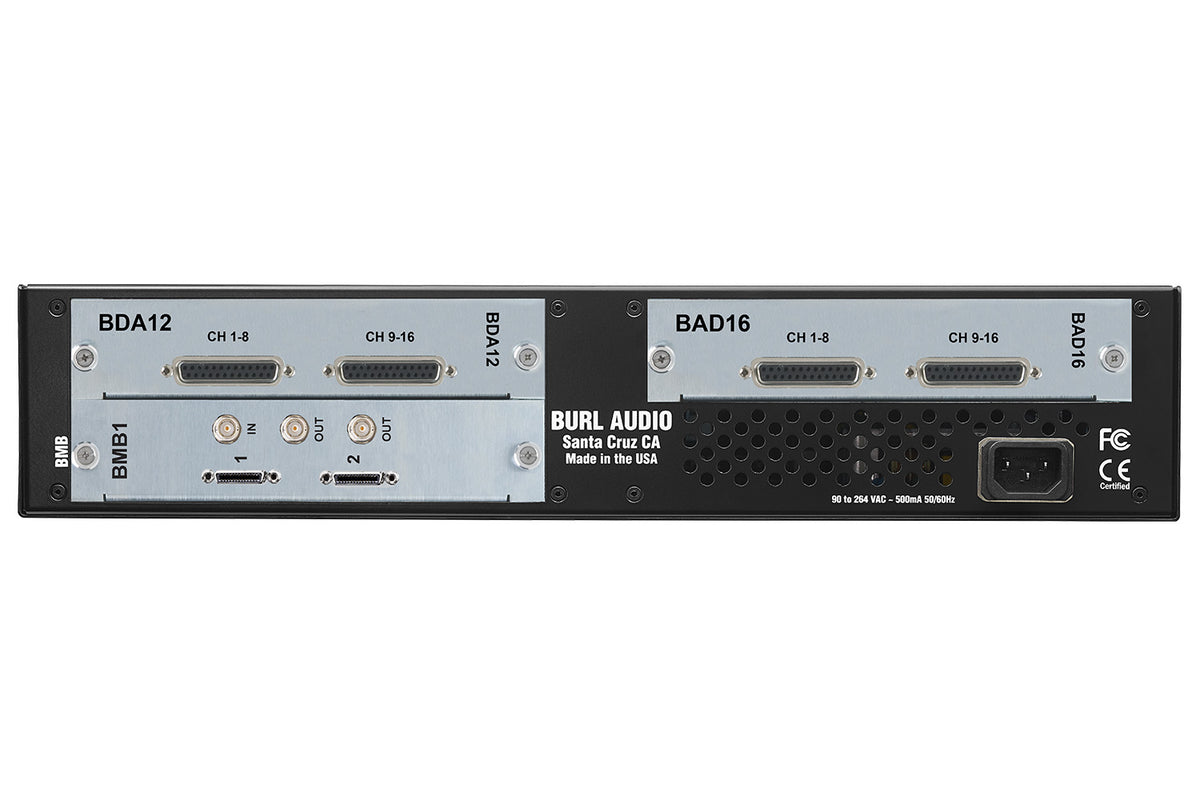

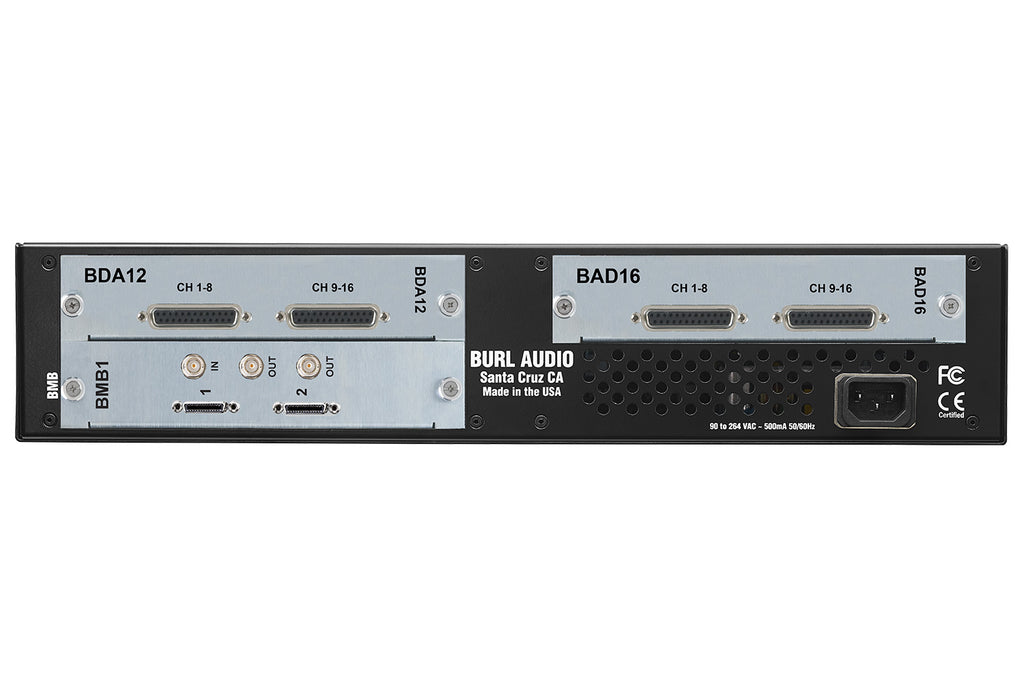

Using a card-based system, and a heavy-duty 2U chassis, the B16 MOTHERSHIP employs 2 daughter card slots with an internal power supply and your choice of Motherboard for Digilink, MADI, Dante, or SoundGrid connectivity. Every ADC channel uses a proprietary BX1 transformer and every DAC channel has the latest Burl Audio discrete op-amp, BOPA4.

For anyone who has yearned for a MOTHERSHIP in a smaller format, this is a dream come true.

BMB1 DIGILINK MOTHERBOARD

The BMB1 comes standard with two DigiLink connectors for direct hookup to Avid Pro Tools. BURL does away with the expansion port, making both primary ports. That means you can play 64 ADC or DAC channels straight out of Pro Tools with one unit! With 6 BAD8s and 4 BDA8s a 48×32 IO can be achieved. With 2 BAD8s and 8 BDA8s a 16×64 IO can be achieved. With the configurability of the Mothership the IO possibilities are limitless.

• 2 DigiLink ports
• 64-channel IO at all sample rates
• 2 BNC Word Clock outputs
• 1 BNC Word Clock input

BAD16 DAUGHTER CARD

The BURL Audio BAD16 is a BURL BLACK analog-to-digital converter daughter card for the B16 Mothership. The BAD16 features 16 channels of all discrete transistor, Class A, transformer-coupled, AD conversion. The BAD16 employs the latest BURL Audio NextGen analog section featuring the BX8 transformer, a smaller form factor input transformer for higher channel density.

With its higher channel density, the BAD16 brings the superior Class A analog technology that BURL Audio is known for, at a lower cost per ADC channel compared to the existing BURL GREEN ADC line.

The BAD16 in a B16 chassis is the ideal 16 channel input solution for recording musicians or project studios who have yearned for a Mothership, but the price point was beyond their budget. The BAD16 now brings the incredible BURL Audio fidelity to those looking to up their game without breaking the bank.

• 16 channel analog to digital conversion
• All Class A analog
• All discrete transistor BURL NextGen circuit path
• Latest BURL BX8 transformer
• 32 maximum ADC channels with B16
• Front panel signal indication
• Automatic BMB1-Digilink detection for Avid Delay Compensation
• MOTHERSHIP 3 compatible

BDA12 ORCA DAUGHTER CARD

The BURL Audio BDA12 ORCA is a BURL BLACK monitor control and DAC daughter card for the B16 MOTHERSHIP. The BDA12 features 12 channels of Class A, discrete transistor op-amp, digital to analog conversion, plus stereo, Class A, speaker and headphone, monitoring. The BDA12 employs the latest BURL Audio NextGen analog section featuring the BOPA14 op-amp, and multichannel DAC chip technology for increased channel density.

With its higher channel density, the BDA12 brings the superior class-A analog technology that BURL Audio is known for, at a lower cost per DAC channel compared to the existing BURL GREEN DAC and ORCA Monitor line.

The BDA12 in a B16 chassis is the ideal 12 channel line output plus monitor section solution for recording musicians or project studios who have yearned for a MOTHERSHIP, but the price point was beyond their budget. The BDA12 now brings the incredible BURL Audio fidelity to those looking to up their game without breaking the bank. A B16 chassis with a BAD12 paired with a BAD16 is an incredibly powerful and compact, 16-in/12-out plus monitor section, all in one recording solution.

• 12 channel digital to analog conversion, line level output
• 2 channel digital to analog conversion, stereo monitor output
• Switchable Speaker A, Speaker B, Headphones
• All Class A analog
• All discrete transistor BURL NextGen circuit path
• BOPA14 discrete op-amp
• Front panel signal indication
• Automatic BMB1-Digilink detection for Avid Delay Compensation
• MOTHERSHIP 3 compatible
