Product Description

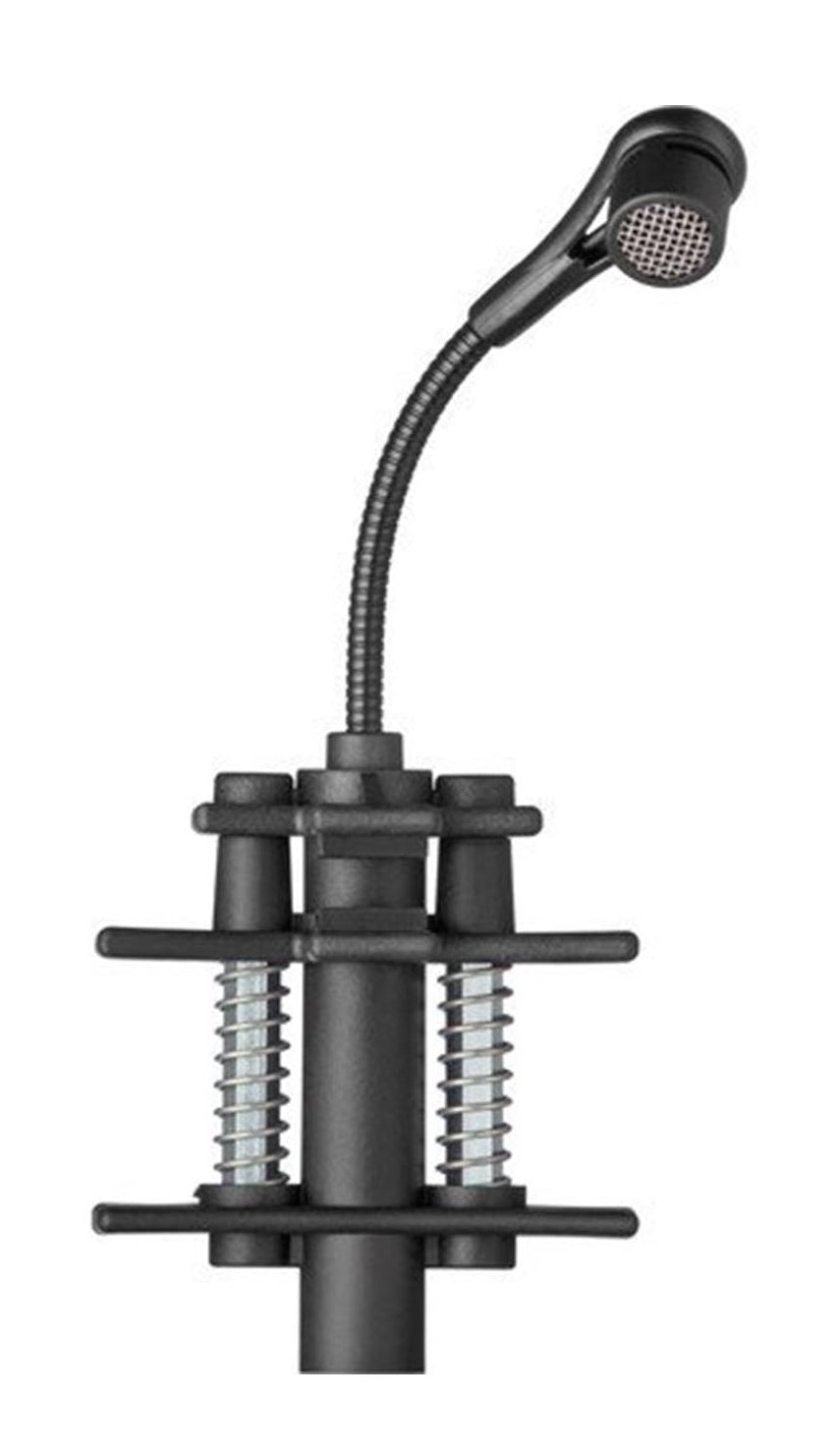

Whether with standing toms, snare drums or percussion instruments, with its patented clip-on mount and integrated pre-amplifier, the beyerdynamic TG D57c condenser microphone is mounted and ready in a flash. The expanded frequency range ensures faithful reproduction of all drum types and the 72 mm long flexible gooseneck allows it to be optimally positioned relative to the sound source. An elastic capsule suspension on the capsule housing protects against damage from drumstick strikes.
Specifications
- Transducer type: Condenser (back electret)
- Operating principle.: Pressure gradient
- Polar pattern Cardioid
- Frequency response
- Close miking 20 - 20,000 Hz
- Distant miking (measured at 1 m): 35 - 20,000 Hz
- Open circuit voltage: 5 mV/Pa (-46 dBV) ±2.5 dB
- Nominal impedance: 200 Ω
- Load impedance. ≥ 1 kΩ
- Max. SPL
- at 24 V and 48 V phantom power: 140 dB
- S/N ratio. 59 dB [CCIR; Q-Peak]
- 70 dB [A; RMS]
- Equivalent SPL: 35 dB [CCIR; Q-Peak]
- 24 dB [A; RMS]
- Power supply Phantom power: 12 - 48 V
- (recommended: 48 V)
- Power consumption: 4.7 mA
- Connection: 3-pin XLR, male
- Dimensions
- Clamp (W x H): 85 x 118 mm
- Gooseneck length: 72 mm
- Weight: approx. 145 g
Features
Specifications
| Package Contents | |
|---|---|
| Diameter | |
| Length | |
| Frequency Range | |
| Impedance | |
| Number of Microphones | |
| Output Connectors | Analog XLR |
| Polar Pattern | Cardioid |
| Sensitivity | |
| Maximum SPL | |
| Transducer Type | Condenser |
| Tube or Solid State |
