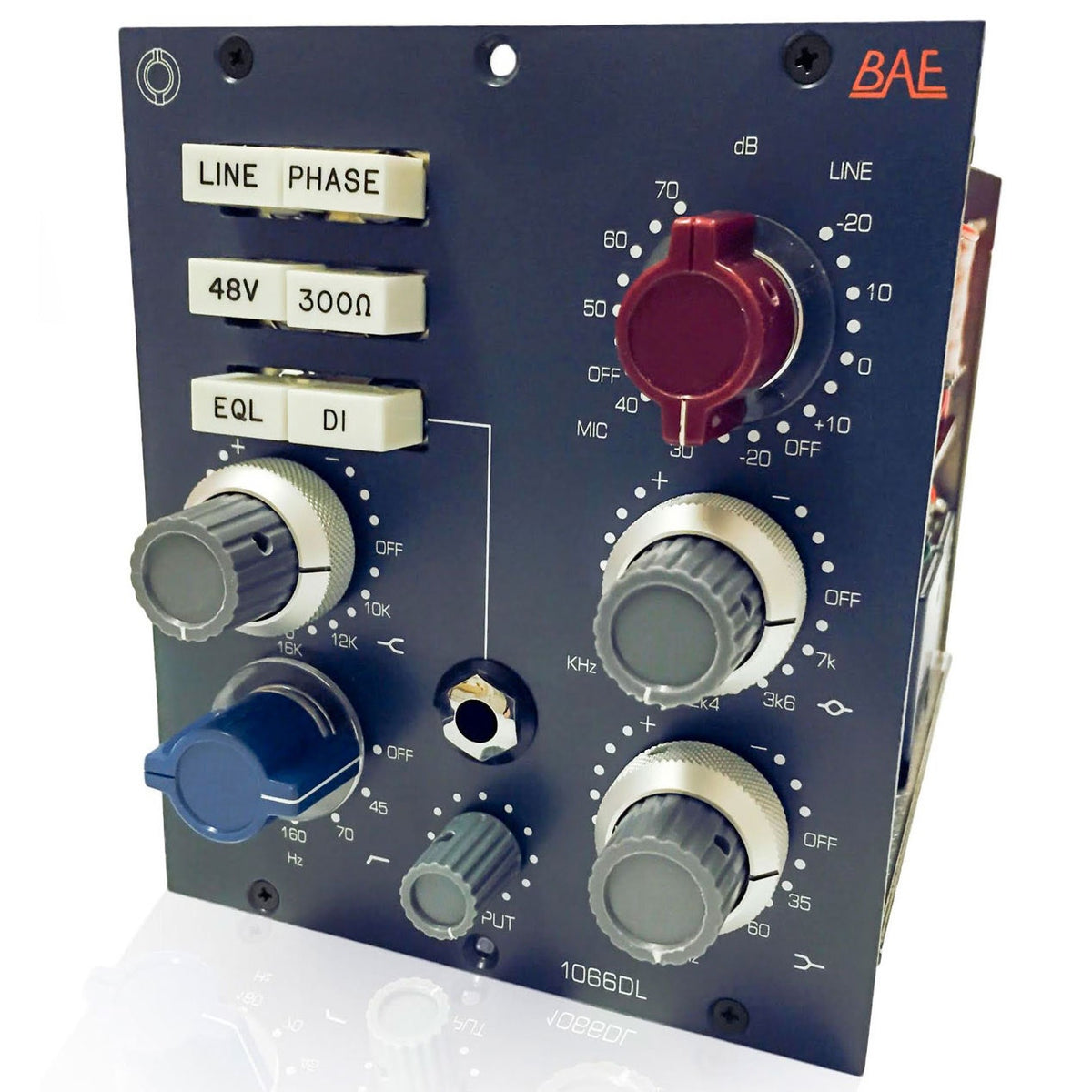

BAE 1066DL 500 Series Mic Preamp/EQ

Product Description

The BAE 1066DL is based on the classic 1066, which features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ for a whole new sonic palette. The available frequencies on the 1066 are especially well suited to guitar applications because of its unique midrange.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.

Specifications:

• High Frequency: ±16 dB shelving with selectable frequencies of 10 kHz, 12 kHz, 16 kHz, 20 kHz and 24 kHz
• Low Frequency: ±16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz & 220 Hz
• Mid Range: ±16dB peaking with switchable selectable center frequencies of 700 Hz, 1.2 kHz, 2.4 kHz, 3 kHz, 7 kHz
• High Pass Filter: 18 dB per octave slope, switchable between 45 Hz, 70 Hz, 160 Hz & 360 Hz
• EQ Button: Switches the equalizer on or off
• Phase Button: 180°
