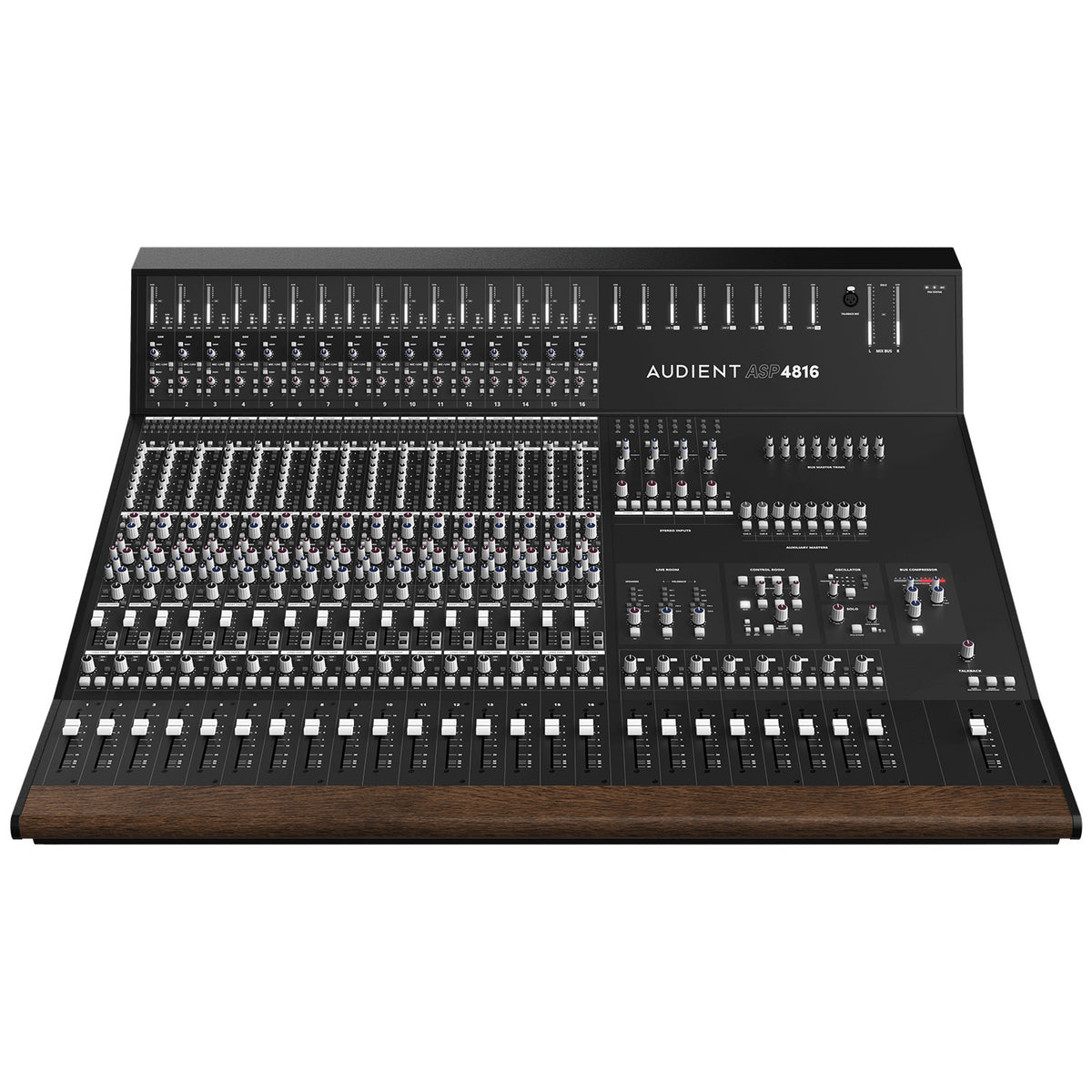

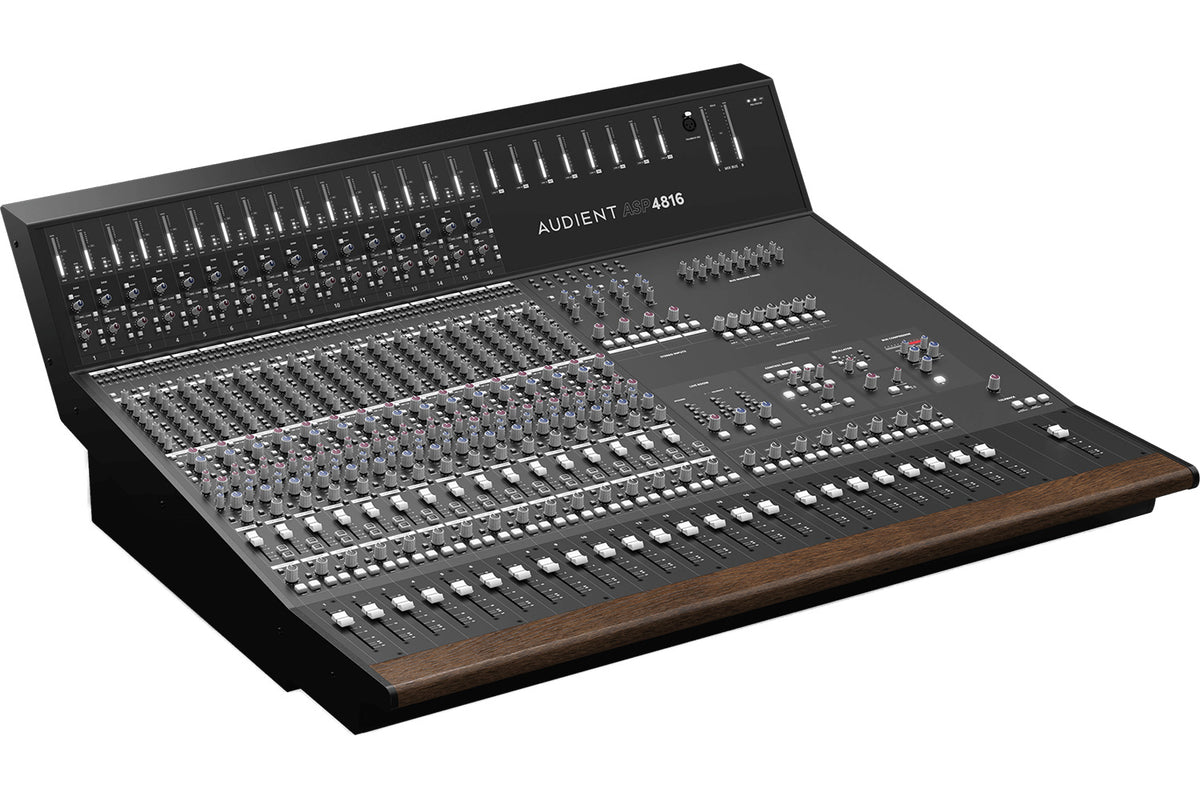

The Audient ASP4816-SE is an in-line, full analog recording and mixing console providing everything you’d expect from a large format recording console but in a space-friendly footprint. Designed from the ground up by David Dearden and featuring his legendary analog circuitry, the ASP4816-SE is the perfect centerpiece for production studios.
DISCRETE HYBRID MIC PRES
Designed to deliver ultra-low noise and low distortion with a touch of classic analog warmth, ASP4816-SE’s 16 discrete hybrid Class A preamps are ready to handle any microphone, instrument or source you can throw at it. With a flexible topology offering up to 60 dB of gain and an incredibly wide bandwidth ensuring your transient detail is accurately preserved in stunning resolution, the Audient preamp gives you a versatile and flexible solution ready for any session. The Audient mic pre is a high grade hybrid discrete and op amp design that delivers a clean, accurate and detailed translation of your source with a noise floor 30,000 times quieter than the signal level your recordings will be captured with stunning clarity.
VCA BUS COMPRESSOR
Often likened to classic analog boards from the 80s, the Audient mix bus compressor does far more than just control levels, it adds weight, depth and warmth to your mix as well as helping to glue your production together for a more polished result. Featuring adjustable ratio and threshold controls, auto-release settings and a gain reduction meter, the Audient mix bus compressor is more than equipped for adding those final touches to any production.
4-BAND AUDIENT EQ
The massively flexible Dearden designed EQ offers two fully parametric bands that span from 40 Hz to 20 kHz, are adjustable from -15 dB to +15 dB and offer an adjustable Q control. These are flanked by low and high shelving EQ bands with the ability to engage the ‘Air’ button for that often needed finishing sheen. The EQ can also be split across both the short and long faders, meaning you can EQ both your mic inputs and DAW returns at the same time, making it incredibly easy to start building your mix from the moment you start recording.

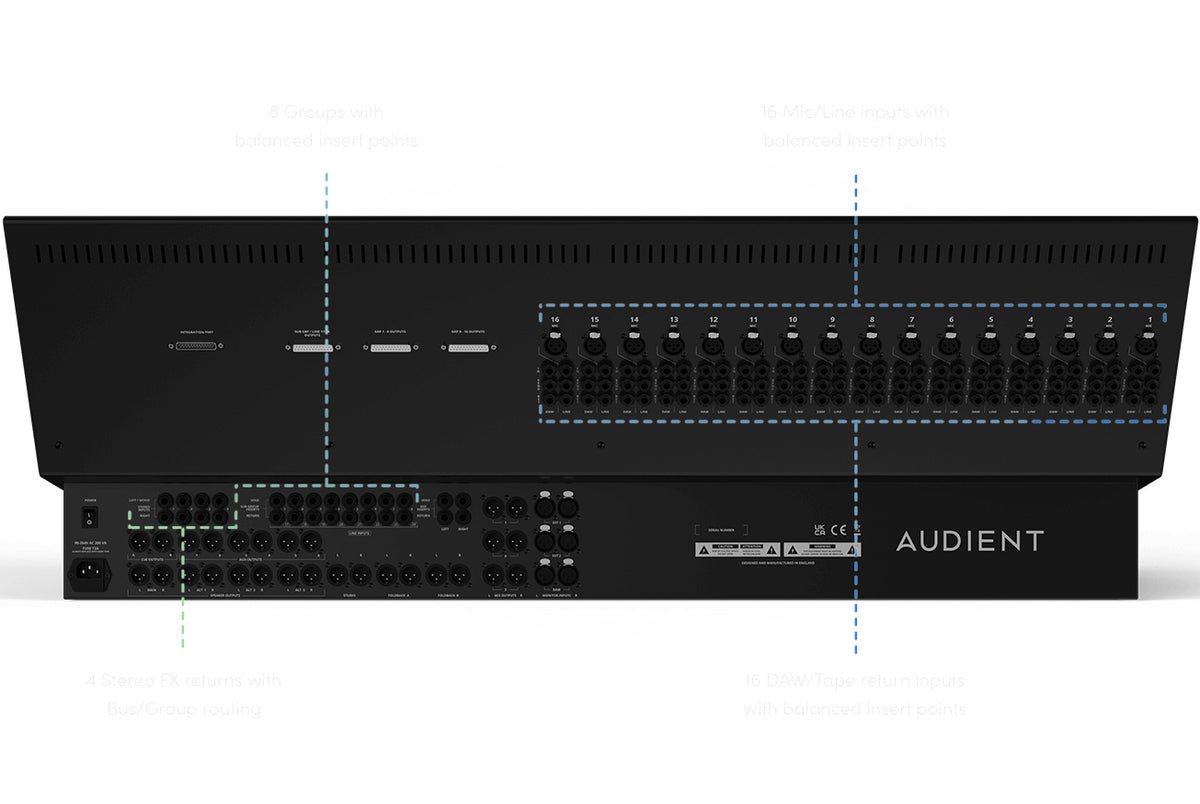

MAKE A CONNECTION
The ASP4816-SE features an astounding amount of connectivity for such a compact frame size. With 48 channels, over 40 insert points, 8 sends and 8 groups available on mixdown the ASP4816-SE will handle the most comprehensive of mixing and tracking tasks. And with so many sends, buses and inserts available, when partnered with a suitable patch bay the ASP4816-SE offers an incredible number of routing options for creative bouncing, summing and parallel processing all with none of the problematic phase and latency issues that digital systems can have.
FLEXIBLE ROUTING
The ASP4816-SE makes signal flow a breeze with flexible routing, one knob per function, no menus or hidden features and no need to worry about latency – making working on the console fast, intuitive and most importantly, fun! The console’s in-line architecture will let you start building your mix as you’re tracking. By using the long and short faders you can create separate record and monitor paths on one channel strip, all while being able access the consoles splittable EQ and aux sends, ideal for getting it right from the start.
MONITOR CONTROL
A fully featured monitor control section offers full artist communication, foot-switch enabled talkback control, solo in front, powerful source selection and loud speaker control with a short passive signal path for incredibly clear and accurate monitoring.
- Four Stereo Monitor Outputs
- Main Mix + 3 x Stereo Sources
- Two Foldback Outputs
- Mono Summing
- Talkback Functionality
Specifications
| Width | |
|---|---|
| Depth | |
| Height | |
| Channels | |
| Input Connectors | 1/4-inch TRS, Analog XLR |
| Number of Aux Sends | |
| Number of Buses | |
| Output Connectors | Analog DB25, Analog XLR |
