Product Description

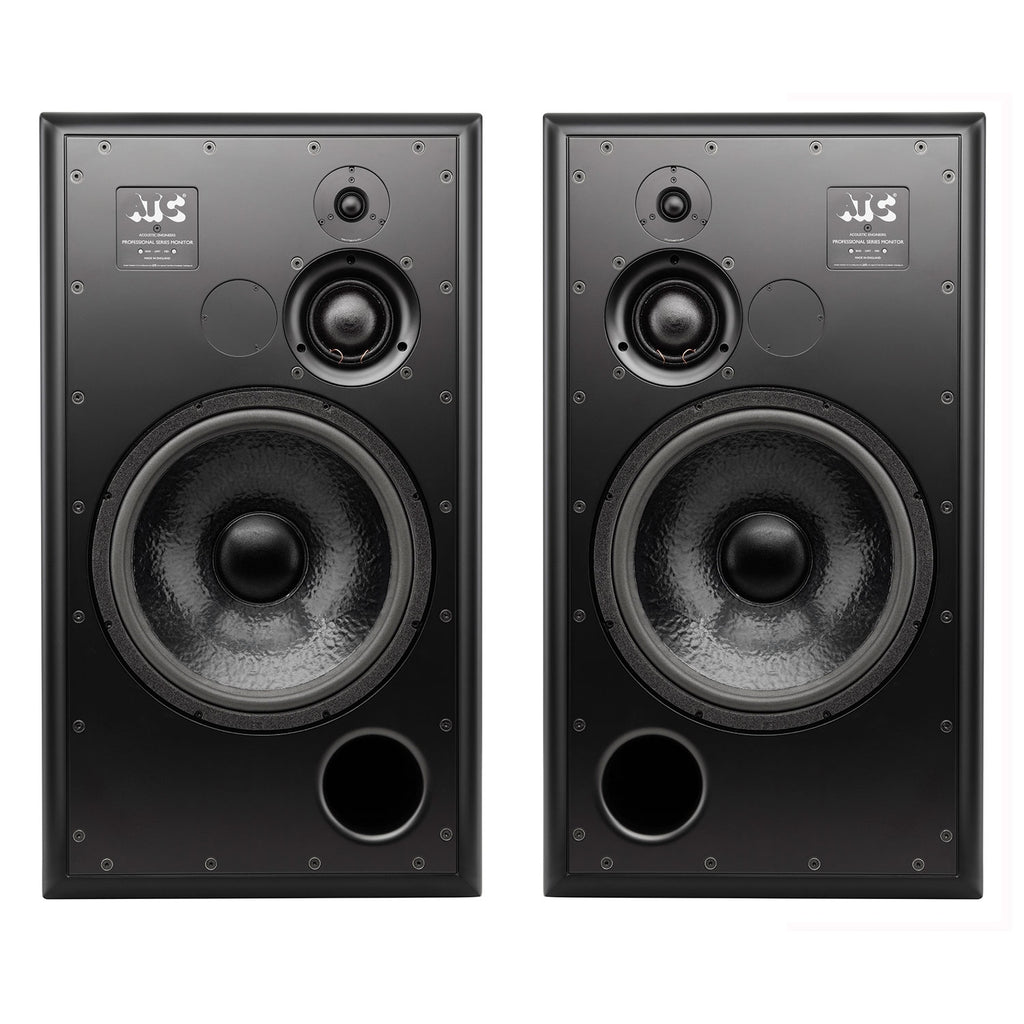

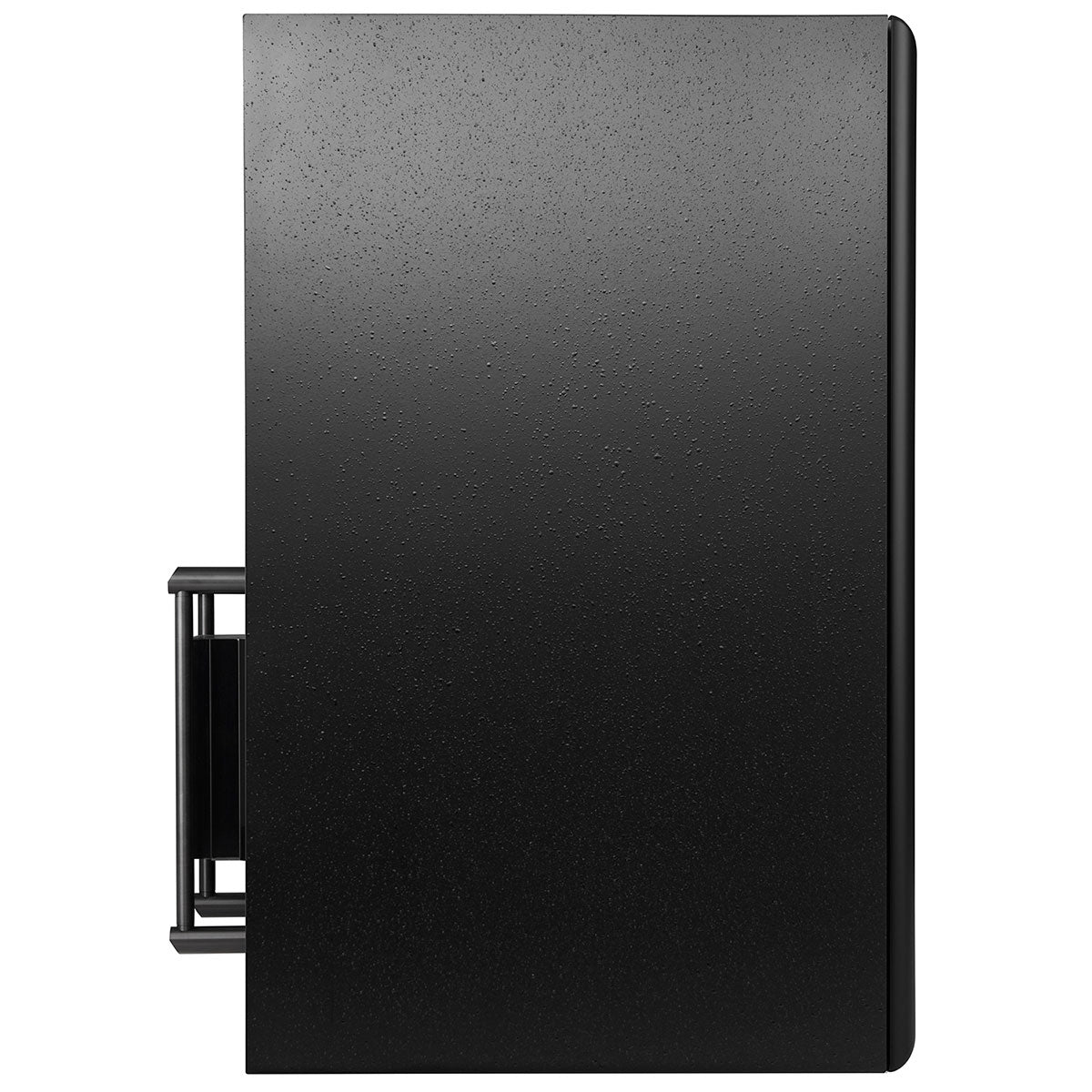

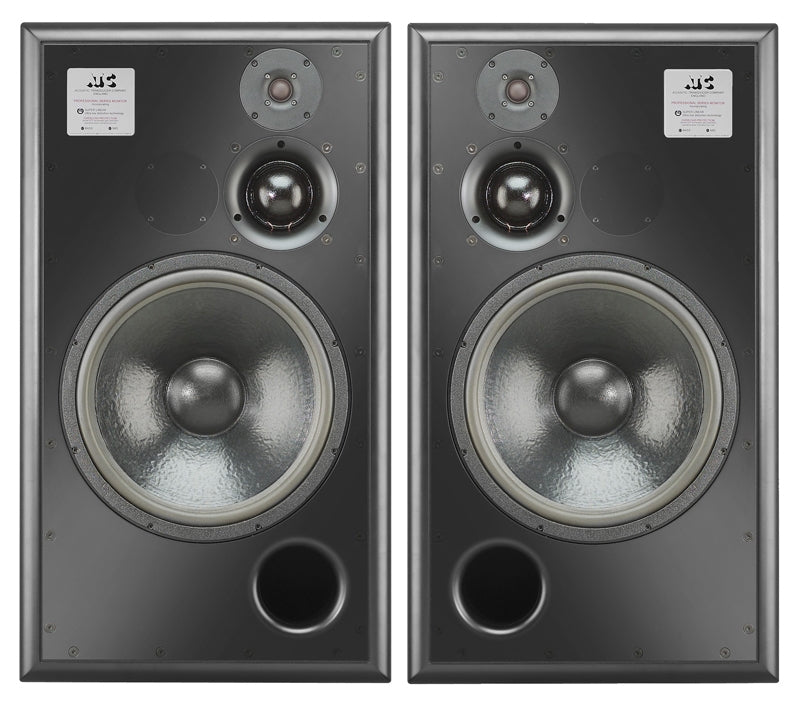

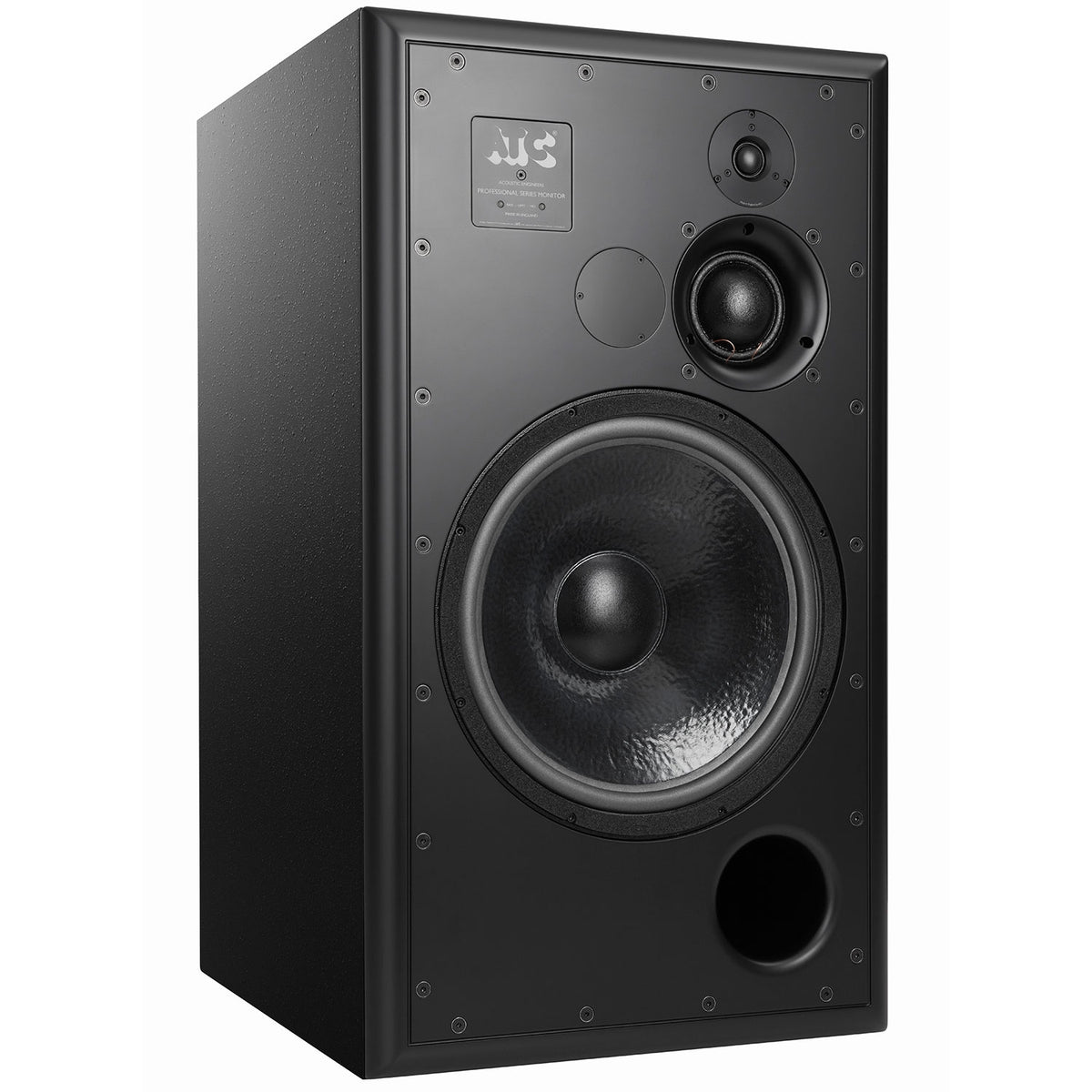

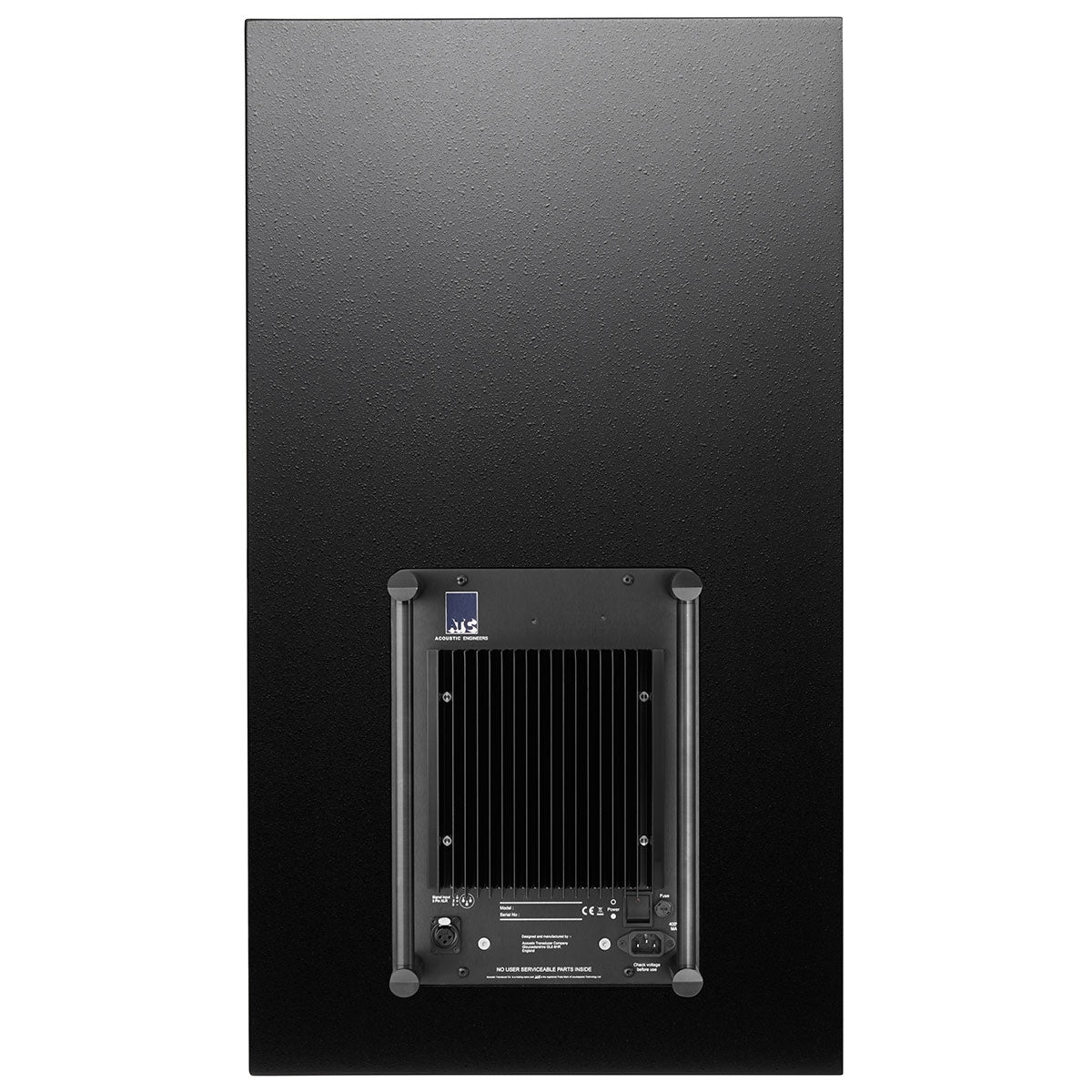

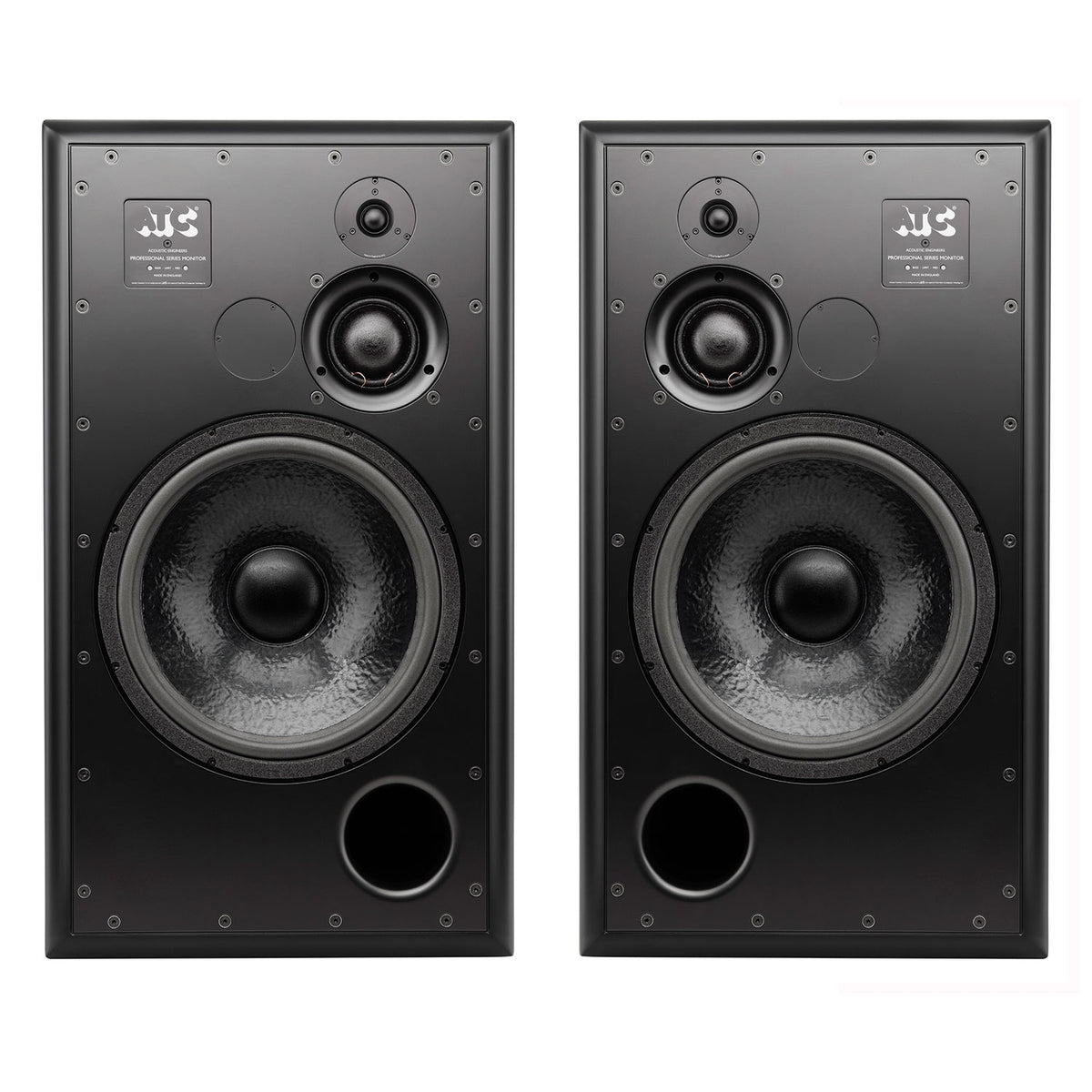

The ATC Loudspeakers SCM150A Pro is a further development of the SCM100A Pro, substituting a larger 375 mm Super Linear bass driver, and increasing the enclosure size to 150 liters. The result is extended bass, greater headroom, and even more dynamic range.
Specifications:
- Drivers: HF 25 mm, Mid 75 mm, LF 375 mm
- Amplitude Linearity (±2 dB): 60 Hz - 17 kHz
- Cut-off Frequencies (-6 dB, free-standing): 25 Hz, 22 kHz
- Horizontal Dispersion: ±80°, Coherent
- Vertical Dispersion: ±10°, Coherent
- Max. Continuous SPL (1 meter): 117 dB
- Crossover Frequencies: 380 Hz, 3.5 kHz
- Input Connectors: Male XLR
- Input Sensitivity: 1V
- Input Sensitivity Trim: ±6 dB
- Input Impedance: Balanced > 10 kΩ
- Amplifier Output: Bass 200 W, Mid 100 W, High 50 W
- Filters: Even Order Critically Damped
- Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
- Front Panel Indicators: Power On indicator, Gain Reduction warning
- LF EQ: +6 dB @ 40 Hz
- Dimensions (HxWxD): 884 x 498 x 568 mm (34.8˝ x 19.6˝ x 25.5˝) Depth with amplifier at rear adds 3˝
- Weight: 75 kg/165 lb
Features
Specifications
| Width | |
|---|---|
| Depth | |
| Height | |
| Active or Passive | |
| Amp Wattage | |
| Driver Sizes | |
| Frequency Range | |
| Impedance | |
| Input Connectors | Analog XLR |
| Monitor Application | Mid-Field |
| Number of Speakers | |
| Speaker Configuration | |
| Maximum SPL |
