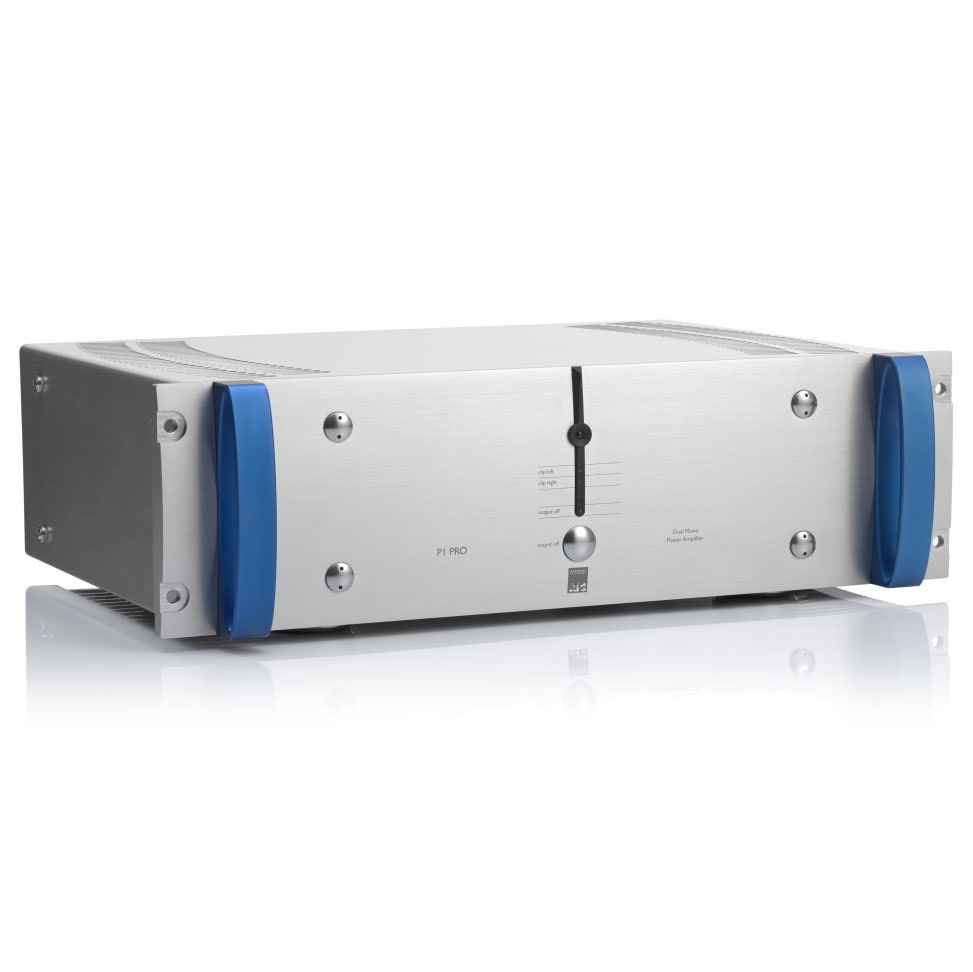

ATC Loudspeakers P1 Pro 2x 150 Watt Amplifier

Product Description

The ATC P1 Pro is a high-quality class A/B power amplifier designed to power ATC passive monitors. The ATC P1 Pro features 150W per channel with a true dual mono design with the power supply signal being totally separated from the return paths ensuring minimum crosstalk and maximum separation. Another advantage of such a design is that intermodulation between channels is reduced to the minimum at all frequencies and that power on one channel doesn’t affect the other. With balanced XLR inputs and unbalanced RCA inputs ensures that the ATC P1 Pro fits perfectly in your system. In addition, each channel features two phono input sockets and a “Link” input phono for connecting two amps together when using a sub for example. Outputs are proprietary ATC connectors with red and black terminals to ensure correct connections. The P1 Pro fits into a 19” rack and includes a remote trigger for send the unit in standby. Several LEDS indicate the different status of the amp with a green light indicating that the amplifier is active and a red light indicating standby mode. Additional LEDs include “Clip”, “Error Left” and “Error Right” are added as indication of the incoming levels. A Protect mode is also included whereby the amplifier will shut down. This feature is designed to protect the amp and the monitors.

Specs:

• Output Power: 150W (8 Ω, 1kHz, continuous. avg., both channels driven)
• Input Sensitivity: 2V RMS (ref. 150W out)
• Input Impedance: 10kΩ/leg
• Frequency Response: 400kHz (-3dB)
• Signal to noise ratio: >115dB (IEC ‘A’)
• Crosstalk: >100dB (10Hz – 20kHz)
• THD: >0.002%/-95dB (8 Ω, 1kHz, -1dB below full Power)
• Damping Factor: >400 (8 Ω)
• Dimensions (HxWxD): 145x483x366mm (3U tall with feet removed)
• Weight: 18kg/39.6lbs
• Class A/B operation
• Hand built in the UK
• True dual mono design
• Balanced and unbalanced inputs
• Amplifier link output
• 3U 19″ rack mount chassis
• Front panel “standby” button
• 6 year warranty
