Wunder Audio CM7 S Tube Condenser Microphone

Recommended Accessories

Wunder Audio

Wunder Audio CM7 S Tube Condenser Microphone

MFR# CM7 S

Enhanced version of the CM7 large-diaphragm tube condenser microphone with custom M7 capsule, NOS Telefunken EF14 tube, modernized power supply, and accessories

Price $7,995.00

More financing options

Affirm Instant financing.
PayPal Three ways to pay.

Availability

In StockOrders placed by 4:00pm ET Monday - Friday will ship the same day.

Ask Our Experts!

The Vintage King team is ready to answer your questions so you can decide on the best fit for your studio. Fill out the form below and we'll be in touch with you shortly.

Experts At Your Service

Have a question? Our Audio Consultants and Technicians have years of real-world experience and are ready to help.

Call now

Product Description

Building on the acclaimed CM7 large-diaphragm tube condenser microphone, the Wunder Audio CM7 S features enhancements like audiophile-grade components and an updated power supply to deliver classic studio sound with modern reliability. Also known as the Wunder Audio CM7 Suprema, this premium studio vocal mic combines a hand-built M7 capsule, an NOS Telefunken EF14 tube, and a transformer modeled after early "Large Badge" U47s. It shines as a vocal mic but is equally effective on drums, acoustic guitars, and piano in professional studios. If you love a microphone with tight, controlled low-end, open top-end, and a natural sound with vintage character, read on to discover why the Wunder Audio CM7 S belongs at the front of your signal chain.

CUSTOM M7 CAPSULE

The Wunder Audio CM7 S is built around a custom M7 capsule with a brass backplate that is hand-milled in Switzerland and finished with gold in Germany for maximum precision, detail, and consistency. Each backplate is cut to the original rim height specification within a one-micron tolerance, a level of accuracy many CNC-milled capsules can't match. The diaphragm is stretched and glued to the rim like a drumhead instead of being screwed to the backplate, and three mounting isolation rims improve ground isolation to keep the microphone's performance consistent.

VINTAGE NOS TELEFUNKEN EF14 TUBE

At the heart of the CM7 S is a vintage NOS Telefunken EF14 tube with a modern circuit upgrade. Select EF14 tubes share the same internal and external tooling as the VF14 used in the original U47, differing mainly in where the filament wire is attached. Wunder Audio chooses tubes only from the best production years, which can be confirmed by the date code on each tube. This attention to detail gives the microphone the warmth and harmonic richness engineers have prized for years.

SUPREMA SILVER GOLD OIL CAPACITOR

Wunder Audio believes the microphone, as the first link in the recording chain, deserves true audiophile components. That's why the CM7 S uses a Suprema Silver Gold Oil capacitor, a polypropylene design with silver and gold metallization. This capacitor keeps the microphone exceptionally quiet, revealing micro-dynamics and image depth while adding a subtle sense of air to the top end. The spectrum opens up without thinning the mids or lows, so recordings feel more spacious and transparent.

CUSTOM TRANSFORMER INSPIRED BY "LARGE BADGE" U47S

The CM7 S output transformer recreates the transformers found in the rare early "Large Badge" U47s, which are highly sought after for their sound. It uses the same vintage Mu-Metal as those early units and is wound to the original specifications with NOS laminations. The transformer also follows the larger bobbin dimensions that made those first microphones so desirable. Wunder Audio replaces the failure-prone PVC wire insulation of vintage designs with Teflon for long-term reliability without sacrificing authentic vintage sound.

PRECISION-ENGINEERED GRILLE

The grille of the Wunder Audio CM7 S uses three layers of mesh: a large outer mesh, a medium inner mesh, and a fine mesh between them. Wunder Audio uses true vintage mesh gauges rather than common metric gauges, because the grille interacts acoustically with the capsule and shapes the microphone's response. The layered grille also acts as a Faraday cage, shielding the capsule and electronics from electrical interference. More than a cosmetic detail, this thoughtful feature helps the Wunder Audio CM7 Suprema reproduce the open, natural sound of classic microphones.

MODERNIZED POWER SUPPLY

The Wunder Audio CM7 S includes a proprietary Wunder Audio power supply that improves on vintage designs to deliver clean, stable DC voltage to the microphone while shielding it from Wi-Fi and RF interference. The dual-pole, neutral-fusing design draws on technology found in high-end audiophile systems, and universal voltage input lets you use the microphone anywhere in the world without having to manually change the voltage. Inside, precise 30-turn trim pots allow fine adjustment of every voltage and resist the drift common in single-turn designs.

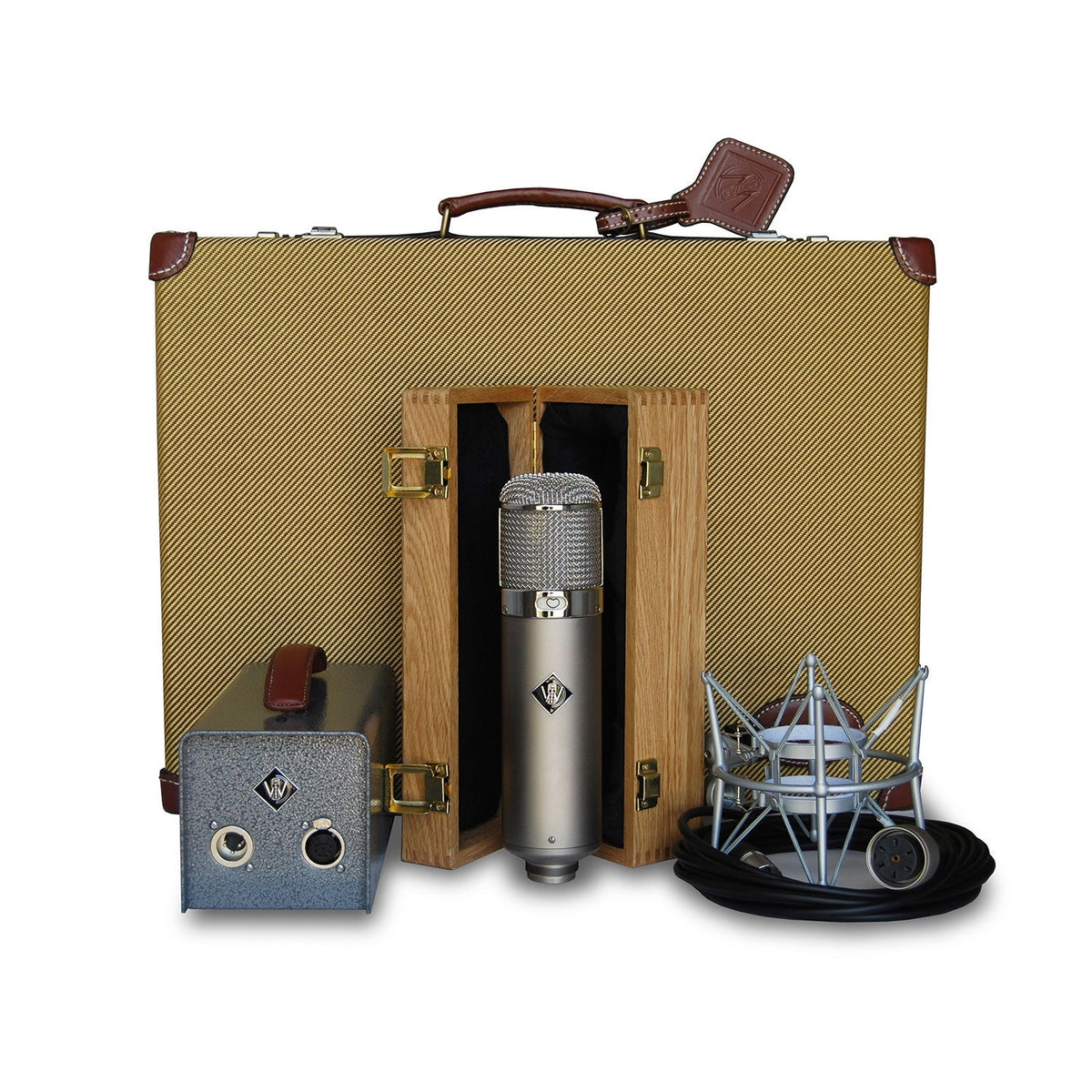

WHAT'S INCLUDED?

The Wunder Audio CM7 S arrives in a velvet-lined, foam-padded oak box with sturdy hinges and clasps. The oak box fits inside a tweed carrying case that also holds the PSU, shock mount, and cables. The case uses the same Fender tweed found on vintage Fender guitar cases and is trimmed with top-grain leather and fine stitching. A sturdy leather handle and combination lock keep the case and its contents secure, and the case is also available separately. An included shockmount and original large Tuchel mic cable complete the package, so you can start recording with your new microphone right away.
