Product Description
The Prism Sound Lyra 2 is a two channel, ultra high quality USB interface. Lyra 2 uses state-of-the-art clock generation with proprietary hybrid 2-stage DPLL, making sure you get the clearest path on the A/D converter. Lyra 2 can record up to 24-bit/192 kHz audio.

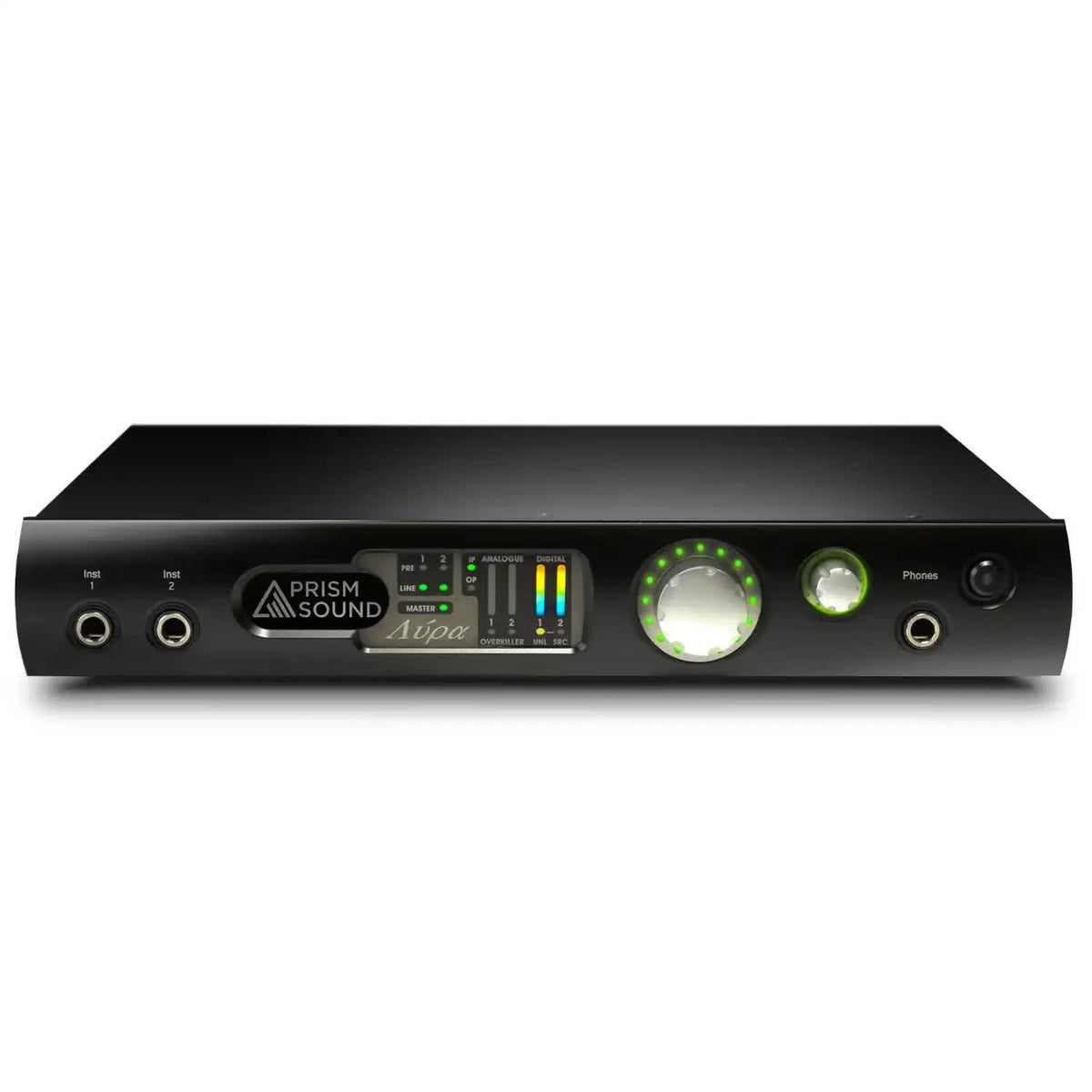

The front panel is a simple, yet powerful design, with two Hi-Z inputs for easy ¼” access, a color LED display showing you XLR, Line Level, and Digital inputs, the meter can also be switched to show output from your recording studio's DAW. A large volume knob is easily accessible, along with the new high-drive independent headphone output.
The rear panel is where all the magic happens. Equipped with an XLR input, as well as independent line inputs per channel. Additional I/O can be added through the Optical connection, allowing up to 10 channels of audio. Four line outs are available for monitoring, sends to a cue system, or external processing units. Digital inputs are also available such as S/PDIF on the RCA/phono and TOSLINK connectors. An ethernet connection with low-latency AVB capability, and the option to sync Lyra 2 to an external clock.
Features
Specifications
| Width | |
|---|---|
| Depth | |
| Height | |
| Channels | |
| Chassis | |
| Clock Io | |
| Digital Format | ADAT, AES/EBU, S/PDIF |
| Digital Ins | |
| Digital Outs | |
| Input Connectors | BNC, Optical, RCA, 1/4-inch TRS, Analog XLR |
| No Of Preamps | |
| Output Connectors | BNC, Optical, RCA, 1/4-inch TRS |
| Max. Sampling Rate | |
| Device interface | USB |
| Rack format | 19-inch rackmount 1U |
