Product Description

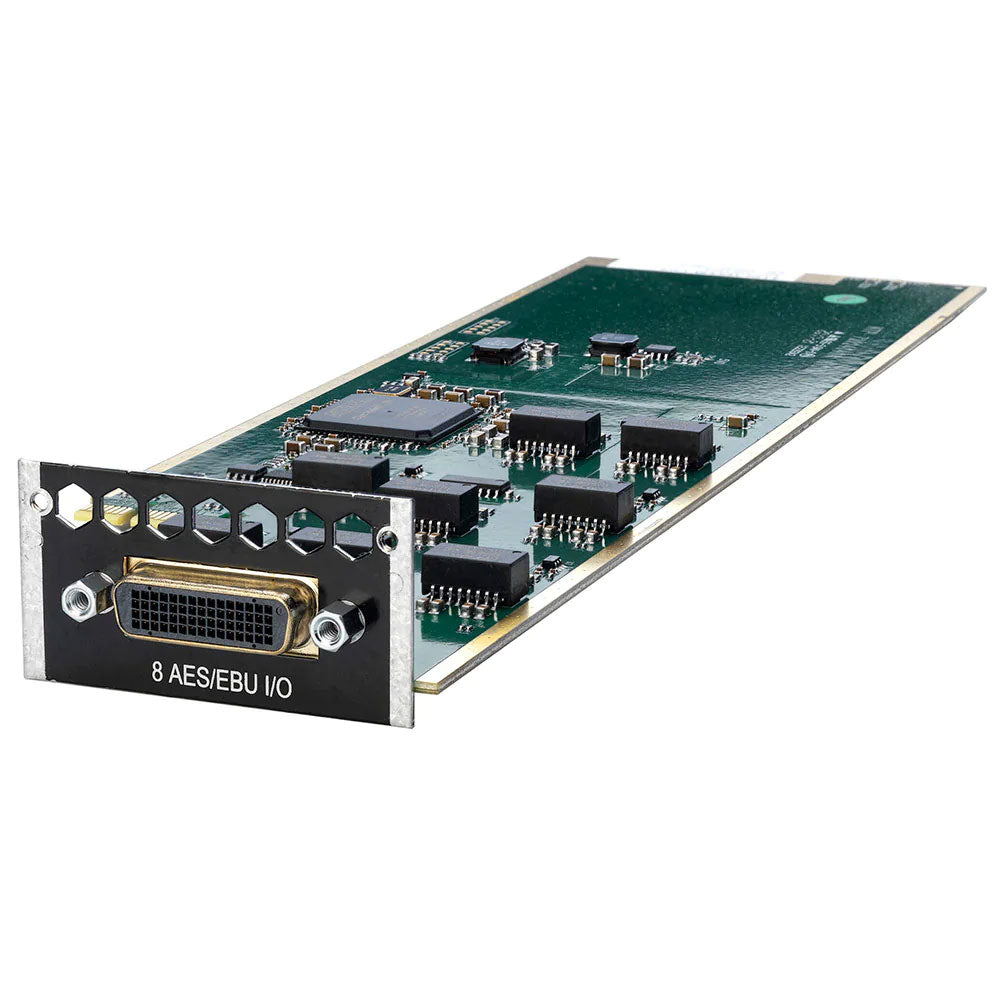

The NTP CARD-AES8 is an 8x AES I/O card with 16 channels in and out for PENTA 720 modular audio interfaces. It includes built-in, selectable sample rate converter on input with sample rates from 44.1 to 192 kHz
The PENTA 720 has 8 user configurable slots for I/O cards. Each slot can be configured with any combination of the available analog and digital cards, in addition to the digital interfaces provided on the base unit.
PENTA 720
The NTP Penta 720 is a new generation of audio router and audio distribution interfaces from NTP Technology, which provides a versatile and flexible interface for signal distribution of analog and digital audio via AES/EBU, MADI, SDI SD/HD/3G embedded audio as well as routing via IP Gigabit Ethernet and optical fibre networks.
Penta 720 is a 2U modular audio interface designed for use in television or radio studios, outside broadcast vehicles and public-event venues. It comes with eight channel AES3 input/output channels, MADI and two IP Audio Ethernet in/outs.
Up to eight optional cards can be incorporated to match specific operational requirements. The range of available plugincards includes an eight-channel analog input interface, eight-channel analog output, two-channel SDI/HD/3G embedder interface and a two-channel SDI/HD/3G de-embedder interface. All cards support hot-swop. A mini-module slot is available for dual SFP MADI optical input/output module, which is also compliant to the NTP HotLink/Dual MADI format.
Features
Specifications
| Digital Format | AES/EBU |
|---|---|
| Input Connectors | AES/EBU DB25 |
| Output Connectors | AES/EBU DB25 |
| Max. Sampling Rate |
