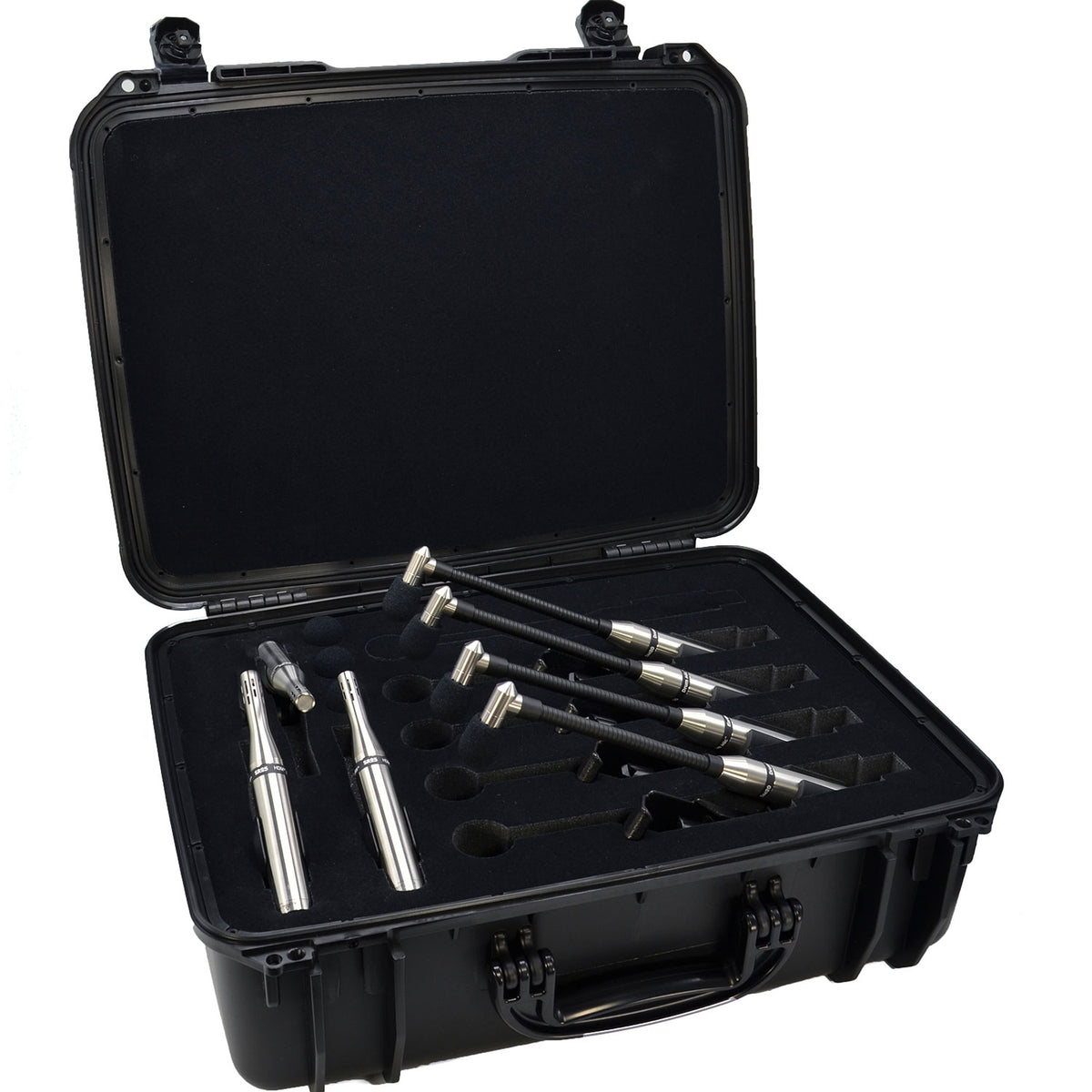

Earthworks DK7 Drum FullKit 7-Piece Drum Microphone Kit

Product Description

The Earthworks DK7 DrumKit System is a seven microphone kit comprised of four DM20 precision engineered cardioid condenser microphones designed for close miking toms and snare, plus two SR25 cardioids for miking overheads, and one specially engineered SR20LS (low sensitivity) for kick drum that can be deployed in both live performance and studio recording environments.

Performance

Whether onstage or in the studio, the DK7 captures a drum sound that is larger than life. Onstage the DK7 delivers sound so detailed and natural that the sound coming out of the PA sounds like the drummer is right in front of you. For recording, it will reproduce your drum kit with incredible detail and pristine sound, faithfully reproducing its true character.

Its near-perfect cardioid polar pattern is consistent across all frequencies, simplifying mic placement, virtually eliminating phasing issues and ensuring more gain before feedback. With a lightning fast transient response, the kit handles sharp attacks with ease, while still picking up all of the subtle nuances and softest dynamics of your playing. Even the loudest drummer cannot overload the DK7 DrumMic, which can handle high sound pressure levels.

Construction

Designed to withstand the rigors of the road while still delivering the quality Earthworks is known for, the DK7 Drum FullKit provides the best of both worlds. Capable of withstanding a stray stick hit, the DM20 DrumMic removes the worry of close miking toms and snare. Its right angle microphone head lets you easily and precisely position the microphone to get the best drum sound. Featuring a stiff yet flexible gooseneck, the microphone will stay put once you have found its sweet spot.

Includes:

• (4) DM20 Microphones
• (2) SR25 Microphones
• (1) SR20LS (low sensitivity) Microphone
• (4) RM1 RimMount
• (3) MC1 Microphone Clip
• (4) PW1 Foam Windscreen
• (3) SRW3 Foam Windscreen
• (1) Rugged Case

DM20 Specifications:

• Frequency Response: 50 Hz to 20 kHz ±2 dB at 6 inches (15 cm)
• Polar Pattern: Cardioid
• Sensitivity: -42 dBV/Pa (8 mV)
• Phantom Requirements: 24 - 48 V @ 10 mA
• Max Acoustic Input: 150 dB SPL
• Signal-to-Noise Ratio: 74 dB A-weighted
• Output: XLR (pin 2+)
• Output Impedance: 200 Ohms balanced (between pins 2 & 3)
• Min Output Load: 1000 Ohms between pins 2 & 3
• Noise: 20dB SPL (A weighted)
• Dimensions L x D: 282 mm x 22 mm (11.12 x .860 inches)
• Gooseneck Length: 120 mm (4.75 inches)
• Weight: .55 lb (.25 kg)

SR25 Specifications:

• Frequency Response: 50 Hz – 25 kHz ±2 dB @ 12 inches (30 cm)
• Polar Pattern: Cardioid
• Sensitivity: -40 dBV/Pa (10 mV)
• Phantom Requirements: 24 - 48 V 10 mA
• Max Acoustic Input: 145 dB SPL
• Output: XLR (pin 2+)
• Output Impedance: 65 Ohms balanced (between pins 2 & 3)
• Min Output Load: 600 Ohms between pins 2 & 3
• Noise: 20 dB SPL equivalent (A weighted)
• Dimensions L x D: 165 mm x 22 mm (6.5 x .860 inches)
• Weight: .35 lb (160 g)

SR20LS Specifications:

• Frequency Response: 50 Hz - 20 kHz ±2 dB at 6 inches (15 cm)
• Polar Pattern: Cardioid
• Sensitivity: -42 dBV/Pa (8 mV)
• Power Requirements: 24 - 48 V @ 10 mA
• Max Acoustic Input: 150 dB SPL
• Signal-to-Noise Ratio: 74 dB A-weighted
• Output: XLR (pin 2+)
• Output Impedance: 200 Ohms balanced (between pins 2 & 3)
• Min Output Load: 1000 Ohms between pins 2 & 3
• Noise: 20 dB SPL (A weighted)
• Dimensions L x D: 165 mm x x 22 mm (6.5 x .860 inches)
• Weight: .35 lb (160 g)
